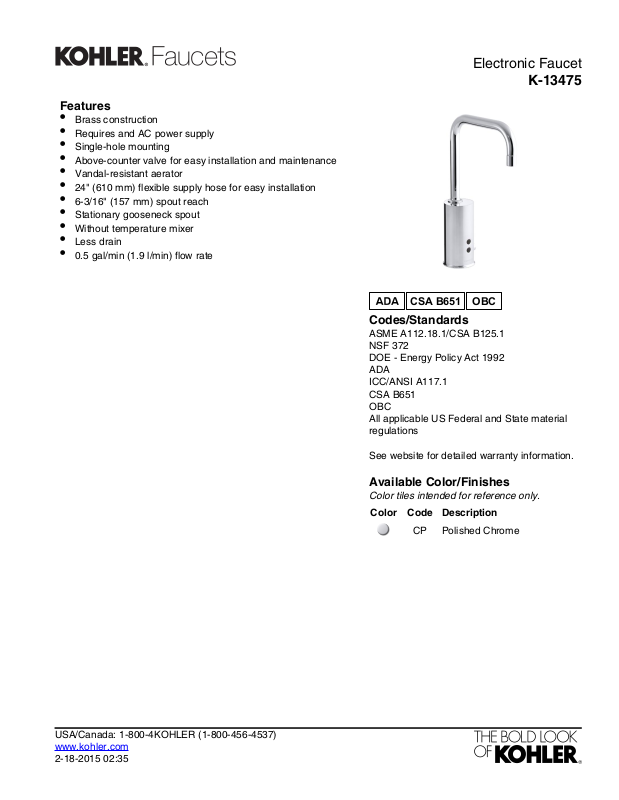

Page 1
Features
CSA B651
OBC
•
Brass construction
•
Requires and AC power supply
•
Single-hole mounting
•
Above-counter valve for easy installation and maintenance
•
Vandal-resistant aerator
•
24" (610 mm) flexible supply hose for easy installation
•
6-3/16" (157 mm) spout reach
•
Stationary gooseneck spout
•
Without temperature mixer
•
Less drain
•
0.5 gal/min (1.9 l/min) flow rate
Electronic Faucet
K-13475
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF 372
DOE - Energy Policy Act 1992
ADA
ICC/ANSI A117.1
CSA B651
OBC
All applicable US Federal and State material
regulations
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 02:35
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Page 2
O 2-5/8"
Electronic Faucet
K-13475
Technical Information
All product dimensions are nominal.
Machined BrassValve body:
Faucet:
0.5 gal/min (1.9 l/min)Flow rate:
Notes
Install this product according to the installation
guide.
A 1-1/4" (32 mm) minimum to 1-1/2" (38 mm)
maximum diameter mounting hole is required.
The minimum distance between the back of the
faucet spout and the wall must be 1-3/4" (44 mm).
This will allow proper clearance for setscrew
access.
The maximum distance between the bathroom
sink basin edge to the base of the faucet spout
must be 1-3/4" (44 mm).
The maximum height of the lip basin should be
3/4" (19 mm).
Product includes rosebud spray aerator. Other
aerator styles are available.
This product requires an AC power supply (not
included).
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 02:35
