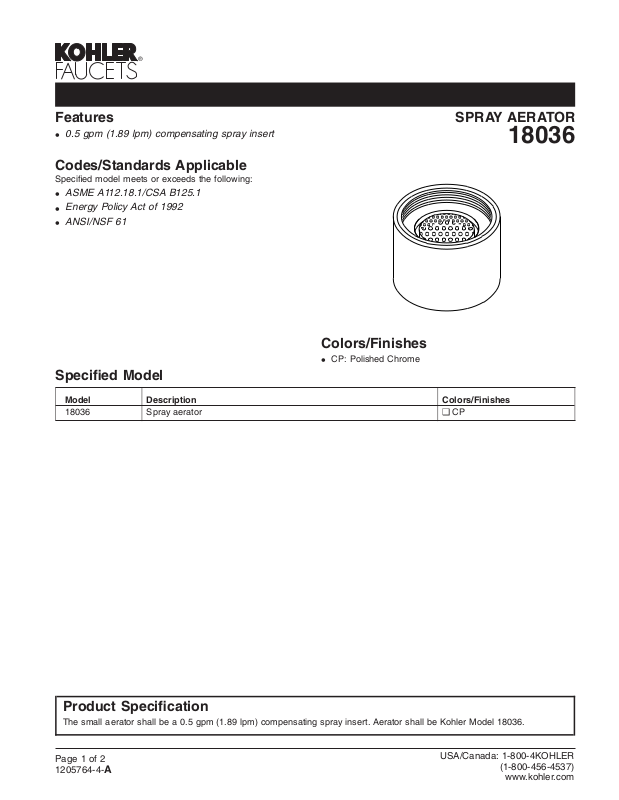

Page 1
Features
0.5 gpm (1.89 lpm) compensating spray insert
•
SPRAY AERATOR
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.18.1/CSA B125.1
•
Energy Policy Act of 1992
•
ANSI/NSF 61
•
Colors/Finishes
CP: Polished Chrome
•
Specified Model
Model Description Colors/Finishes
18036 Spray aerator ❑ CP
18036
Product Specification
The small aerator shall be a 0.5 gpm (1.89 lpm) compensating spray insert. Aerator shall be Kohler Model 18036.
Page 1 of 2
1205764-4-
A
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
Installation Notes
Ø 1"
(25 mm)
55/64-27
Internal Thread
11/16"
(17 mm)
0.50 (1.89)
0.48 (1.82)
0.46 (1.74)
0.44 (1.67)
0.42 (1.59)
0.40 (1.51)
0.38 (1.44)
0.36 (1.36)
0.34 (1.29)
0.32 (1.21)
0.30 (1.14)
0.28 (1.06)
0.26 (0.98)
0.24 (0.91)
0.22 (0.83)
0.20 (0.76)
Flow Rate gpm (lpm)
0.18 (0.68)
0.16 (0.61)
0.14 (0.53)
0.12 (0.45)
0.10 (0.38)
0.08 (0.30)
0.06 (0.23)
0.04 (0.15)
0.02 (0.08)
0.00 (0.00)
0.0
(0.0)
10.0
(68.9)
Product Diagram
20.0
(137.9)
QTY. Tested Samples
30.0
(206.8)
40.0
(275.8)
Pressure psi (kPa)
50.0
(344.8)
0.46 GPM (1.74 LPM) MAX
5
60.0
(413.7)
70.0
(482.6)
80.0
(551.6)
SPRAY AERATOR
Page2of2
1205764-4-
A
