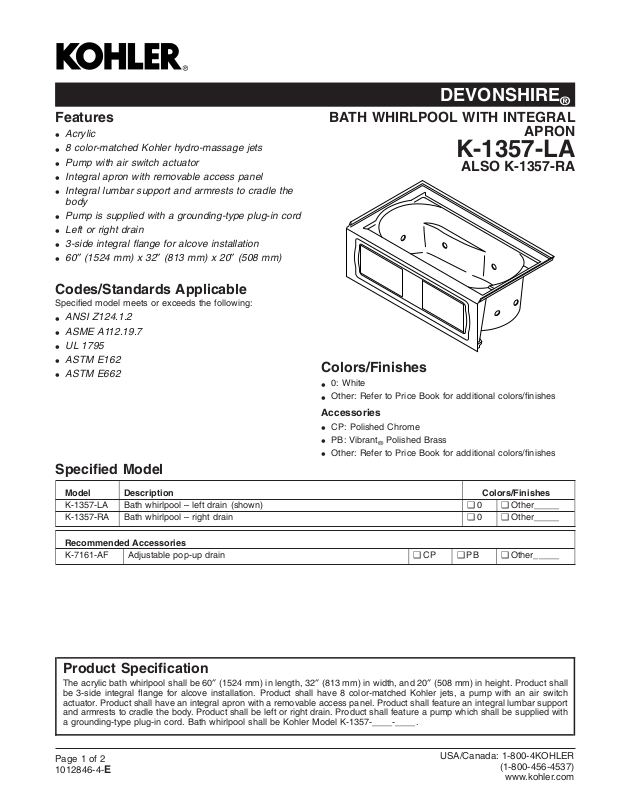

DEVONSHIRE
®
Features
Acrylic
•
8 color-matched Kohler hydro-massage jets
•
Pump with air switch actuator
•
Integral apron with removable access panel
•
Integral lumbar support and armrests to cradle the
•
body
Pump is supplied with a grounding-type plug-in cord
•
Left or right drain
•
3-side integral flange for alcove installation
•
60″ (1524 mm) x 32″ (813 mm) x 20″ (508 mm)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ANSI Z124.1.2
•
ASME A112.19.7
•
UL 1795
•
ASTM E162
•
ASTM E662
•
Specified Model
BATH WHIRLPOOL WITH INTEGRAL
APRON
K-1357-LA
ALSO K-1357-RA
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-1357-LA Bath whirlpool – left drain (shown) ❑ 0 ❑ Other_____
K-1357-RA Bath whirlpool – right drain ❑ 0 ❑ Other_____
Recommended Accessories
K-7161-AF Adjustable pop-up drain ❑ CP ❑ PB ❑ Other_____
Product Specification
The acrylic bath whirlpool shall be 60″ (1524 mm) in length, 32″ (813 mm) in width, and 20″ (508 mm) in height. Product shall
be 3-side integral flange for alcove installation. Product shall have 8 color-matched Kohler jets, a pump with an air switch
actuator. Product shall have an integral apron with a removable access panel. Product shall feature an integral lumbar support
and armrests to cradle the body. Product shall be left or right drain. Product shall feature a pump which shall be supplied with
a grounding-type plug-in cord. Bath whirlpool shall be Kohler Model K-1357-____-____.
Page 1 of 2
1012846-4-
E
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
DEVONSHIRE
®
Technical Information
Required Electrical Service
Fixture*:
Basin area:
Bathing well 42″ (1067 mm) x 20″ (508 mm)
Top area 51″ (1295 mm) x 24″ (610 mm)
Weight 135 lbs (61.2 kg)
To overflow:
Water depth 14″ (356 mm)
Capacity 60 gal (227.1 L)
* Approximate measurements for comparison only.
Pump: V Hz A
1-speed 120 60 7
K-1357-LA/RA
Dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI):
Pump/control 120 V, 15 A, 60 Hz
Installation Notes
Install this product according to the installation guide.
Floor support under whirlpool must provide for a minimum of
50 lbs/square foot (242 kg/square meter) loading.
No change in measurements if connected with
drain illustrated. (K-7161-AF or K-7161M-AF)
16"
(406 mm)
2-1/4"
(57 mm)
1-1/4"
(32 mm)
3" (76 mm)
Ø 1-1/2"
9"
(229 mm)
60" (1524 mm)
2-1/2"
(64 mm)
1" (25 mm)

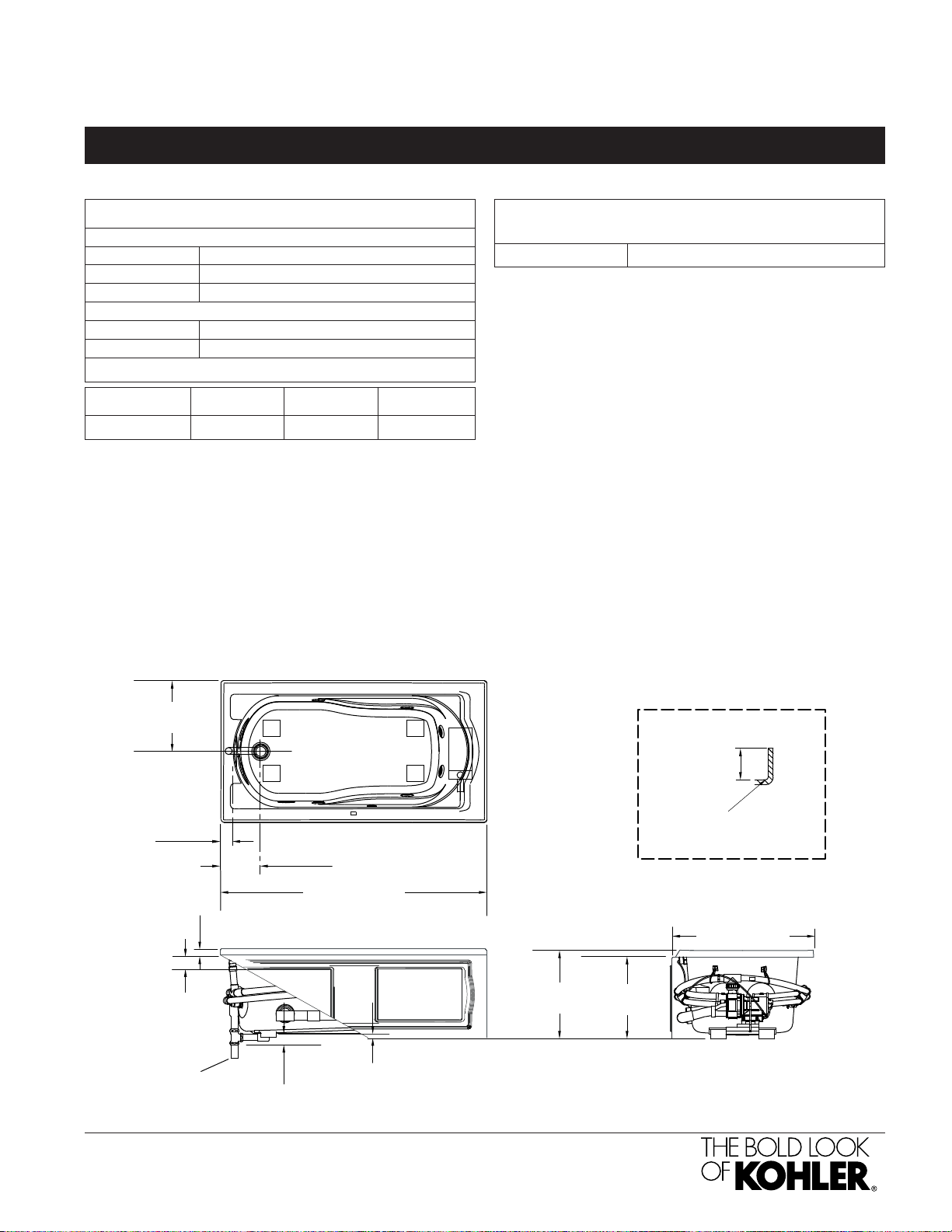

Product Diagram
DEVONSHIRE®BATH WHIRLPOOL WITH INTEGRAL APRON
Page2of2
1012846-4-
E
21-1/4"
(540 mm)
1-1/4"
(32 mm)
1/2"
(13 mm) R.
Integral Flange Detail
32" (813 mm)
20"
(508 mm)
