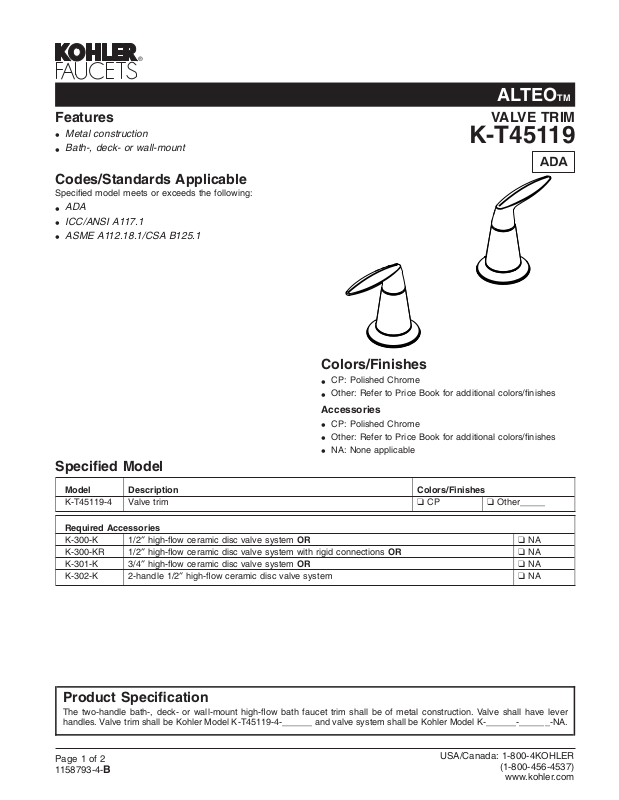

ALTEOTM
Features
Metal construction
•
Bath-, deck- or wall-mount
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ADA
•
ICC/ANSI A117.1
•
ASME A112.18.1/CSA B125.1
•
Specified Model
VALVE TRIM
K-T45119
Colors/Finishes
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
NA: None applicable
•
Model Description Colors/Finishes
K-T45119-4 Valve trim ❑ CP ❑ Other_____
Required Accessories
K-300-K 1/2″ high-flow ceramic disc valve system OR ❑ NA
K-300-KR 1/2″ high-flow ceramic disc valve system with rigid connections OR ❑ NA
K-301-K 3/4″ high-flow ceramic disc valve system OR ❑ NA
K-302-K 2-handle 1/2″ high-flow ceramic disc valve system ❑ NA
Product Specification
The two-handle bath-, deck- or wall-mount high-flow bath faucet trim shall be of metal construction. Valve shall have lever
handles. Valve trim shall be Kohler Model K-T45119-4-______ and valve system shall be Kohler Model K-______-______-NA.
Page 1 of 2
1158793-4-
B
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
ALTEOTM
Optional Accessories
1086701 Deep roughing-in kit for high-flow deck-mount bath faucets (all handles) ❑ CP ❑ Other_____
73444 Deep roughing-in kit for high-flow deck-mount bath faucets (all handles) ❑ NA
Installation Notes
Install this product according to the installation guide.
ADA compliant when installed to the specific requirements of
these regulations.
4-3/8"
(11.1 cm)
1/4" (6 mm) to
2-1/8" (5.4 cm)
Max Rim or
Deck-Mount
Rim or Deck-Mount
Installation
ALTEOTM VALVE TRIM
Page2of2
1158793-4-
B
3-3/8"
(8.6 cm)
2-3/4"
(7 cm) D.
5/8" ID
8" (20.3 cm) Min
1/4" (6 mm) to
1-1/4" (3.2 cm)
Max Finished Deck
2-1/8"
(5.4 cm) Max
Rough Deck
1-1/8" D.
Rough + Finished
Deck-Mount
Installation
Product Diagram
7/8" D.
