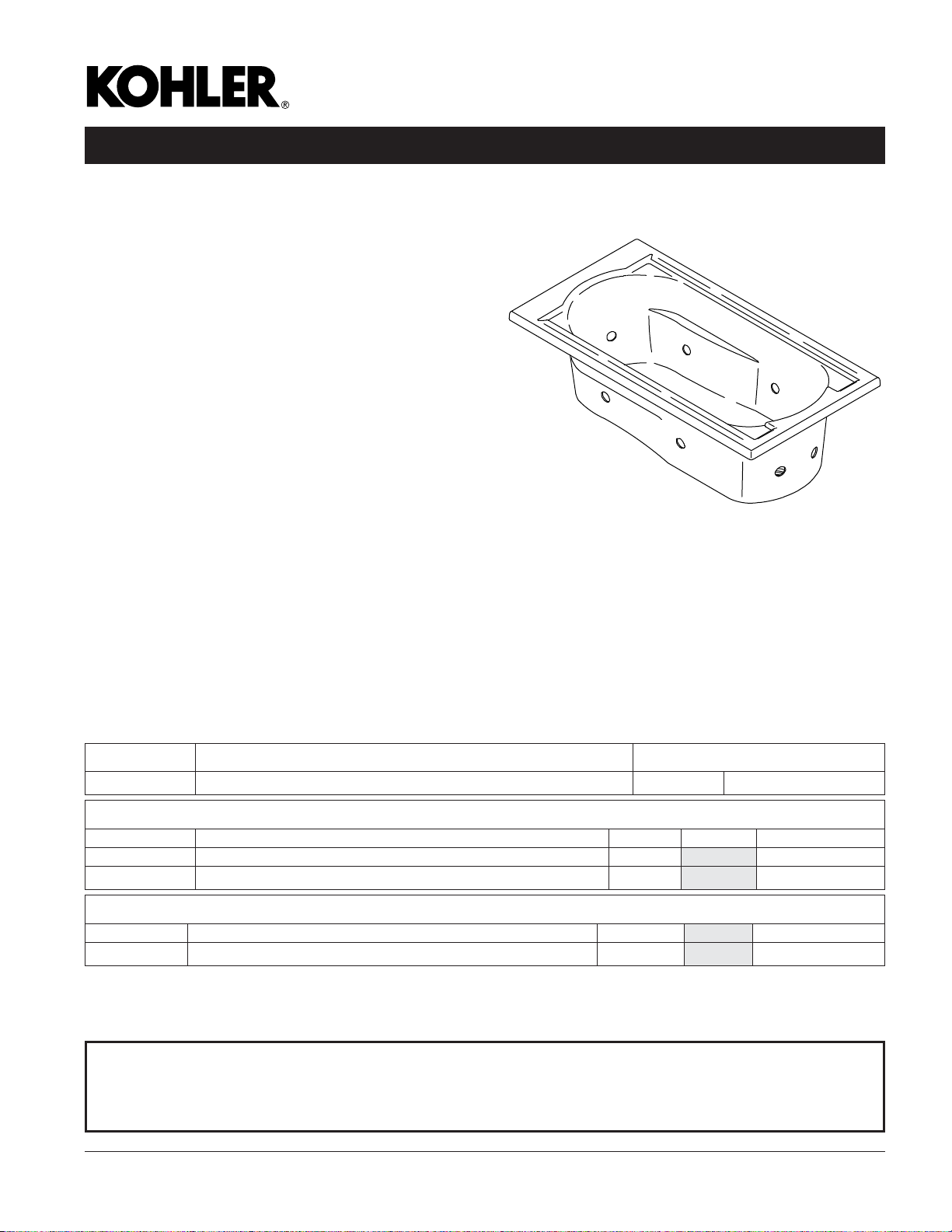

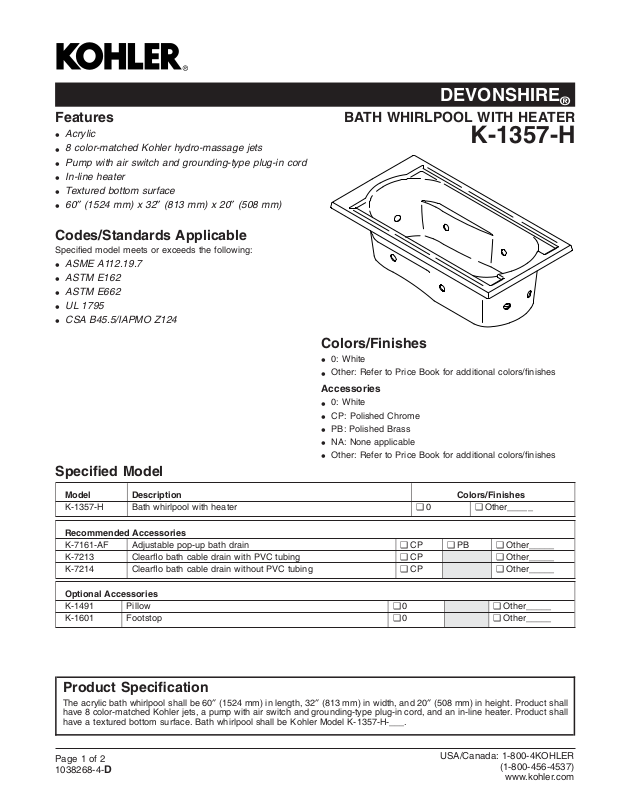

DEVONSHIRE
®
Features
Acrylic
•
8 color-matched Kohler hydro-massage jets
•
Pump with air switch and grounding-type plug-in cord
•
In-line heater
•
Textured bottom surface
•
60″ (1524 mm) x 32″ (813 mm) x 20″ (508 mm)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.19.7
•
ASTM E162
•
ASTM E662
•
UL 1795
•
CSA B45.5/IAPMO Z124
•
Specified Model
BATH WHIRLPOOL WITH HEATER
K-1357-H
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
0: White
•
CP: Polished Chrome
•
PB: Polished Brass
•
NA: None applicable
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-1357-H Bath whirlpool with heater ❑ 0 ❑ Other_____
Recommended Accessories
K-7161-AF Adjustable pop-up bath drain ❑ CP ❑ PB ❑ Other_____
K-7213 Clearflo bath cable drain with PVC tubing ❑ CP ❑ Other_____
K-7214 Clearflo bath cable drain without PVC tubing ❑ CP ❑ Other_____
Optional Accessories
K-1491 Pillow ❑ 0 ❑ Other_____
K-1601 Footstop ❑ 0 ❑ Other_____
Product Specification
The acrylic bath whirlpool shall be 60″ (1524 mm) in length, 32″ (813 mm) in width, and 20″ (508 mm) in height. Product shall
have 8 color-matched Kohler jets, a pump with air switch and grounding-type plug-in cord, and an in-line heater. Product shall
have a textured bottom surface. Bath whirlpool shall be Kohler Model K-1357-H-___.
Page 1 of 2
1038268-4-
D
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
DEVONSHIRE
®
Technical Information
Required Electrical Service
Fixture*:
Bathing well:
Basin area, bottom 42″ (1067 mm) x 20″ (508 mm)
Basin area, top 51″ (1295 mm) x 24″ (610 mm)
Weight 145 lbs (65.8 kg)
To overflow:
Water depth 14″ (356 mm)
Capacity 60 gal (227.1 L)
* Approximate measurements for comparison only.
Cut-out dimension:
Drop-in cut-out 58″ (1473 mm) x 30″ (762 mm)
Pump: V Hz A
1-speed 120 60 7
Heater: kW V Hz A
1.5 120 60 12.5
K-1357-H
Two dedicated circuits required, each protected with
Class A Ground-Fault Circuit-Interrupter (GFCI):
Pump/control 120 V, 15 A, 60 Hz
Heater 120 V, 15 A, 60 Hz
Locate the outlets behind the whirlpool and within 24″
(610 mm) of the pump and heater.
Installation Notes
Install this product according to the installation guide.
Floor support under whirlpool must provide for a minimum of
50 lbs/square foot (246 kg/square meter) loading.
No change in measurements if connected with drain
illustrated. (K-7161-AF or K-7161M-AF)
16"
(406 mm)
2-1/4"
(57 mm)
9"
(229 mm)
60" (1524 mm)
3"
(76 mm)
1" (25 mm)
Ø 1-1/2"
2-1/2"
(64 mm)
Product Diagram
DEVONSHIRE®BATH WHIRLPOOL WITH HEATER
Page2of2
1038268-4-
D
Pump/Control Access
18" (457 mm) W x
14" (356 mm) H
20"
(508 mm)
18-1/2"
(470 mm)
32" (813 mm)
