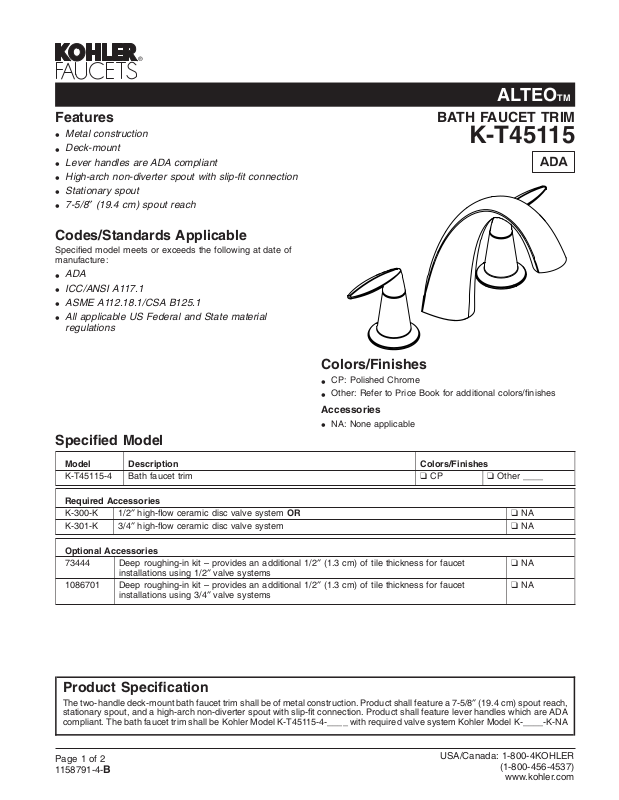

ALTEOTM
Features
Metal construction
•
Deck-mount
•
Lever handles are ADA compliant
•
High-arch non-diverter spout with slip-fit connection
•
Stationary spout
•
7-5/8″ (19.4 cm) spout reach
•
Codes/Standards Applicable
Specified model meets or exceeds the following at date of
manufacture:
ADA
•
ICC/ANSI A117.1
•
ASME A112.18.1/CSA B125.1
•
All applicable US Federal and State material
•
regulations
Specified Model
BATH FAUCET TRIM
K-T45115
Colors/Finishes
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
NA: None applicable
•
Model Description Colors/Finishes
K-T45115-4 Bath faucet trim ❑ CP ❑ Other ____
Required Accessories
K-300-K 1/2″ high-flow ceramic disc valve system OR ❑ NA
K-301-K 3/4″ high-flow ceramic disc valve system ❑ NA
Optional Accessories
73444 Deep roughing-in kit – provides an additional 1/2″ (1.3 cm) of tile thickness for faucet
installations using 1/2″ valve systems
1086701 Deep roughing-in kit – provides an additional 1/2″ (1.3 cm) of tile thickness for faucet
installations using 3/4″ valve systems
❑ NA
❑ NA
Product Specification
The two-handle deck-mount bath faucet trim shall be of metal construction. Product shall feature a 7-5/8″ (19.4 cm) spout reach,
stationary spout, and a high-arch non-diverter spout with slip-fit connection. Product shall feature lever handles which are ADA
compliant. The bath faucet trim shall be Kohler Model K-T45115-4-____ with required valve system Kohler Model K-____-K-NA
Page 1 of 2
1158791-4-
B
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
ALTEOTM
Installation Notes
Install this product according to the installation guide.
ADA compliant when installed to the specific requirements of
these regulations.
3-3/8"
(8.6 cm)
4-3/8"
(11.1 cm)
1/4" (6 mm) to
2-1/8" (5.4 cm)
Max Rim or
Deck-Mount
Rim or Deck-Mount
Installation
2-3/4"
(7 cm) D.
2-13/16"
(7.1 cm)
7/8" D.
5/8" ID
8" (20.3 cm) Min
1/4" (6 mm) to
1-1/4" (3.2 cm)
Max Finished Deck
2-1/8"
(5.4 cm) Max
Rough Deck
1-1/8" D.
Rough + Finished
Deck-Mount
Installation
9-3/4" (24.8 cm)
7-5/8" (19.4 cm)
6-9/16"
(16.7 cm)
9-3/16"
(23.3 cm)
ALTEOTM BATH FAUCET TRIM
Page2of2
1158791-4-
B
Product Diagram
