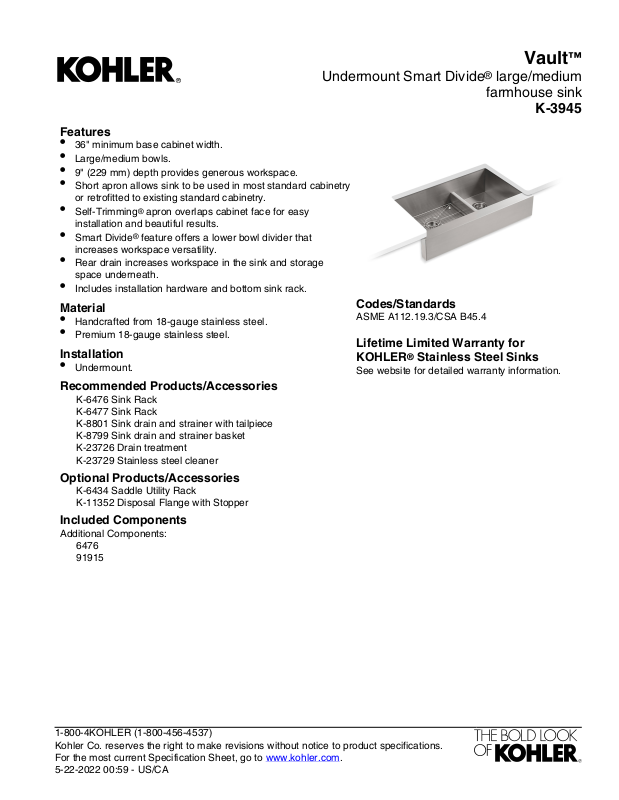

Vault
Features
•
36" minimum base cabinet width.
•
Large/medium bowls.
•
9" (229 mm) depth provides generous workspace.
•
Short apron allows sink to be used in most standard cabinetry
or retrofitted to existing standard cabinetry.
•
Self-Trimming® apron overlaps cabinet face for easy
installation and beautiful results.
•
Smart Divide® feature offers a lower bowl divider that
increases workspace versatility.
•
Rear drain increases workspace in the sink and storage
space underneath.
•
Includes installation hardware and bottom sink rack.
Material
•
Handcrafted from 18-gauge stainless steel.
•
Premium 18-gauge stainless steel.
Installation
•
Undermount.
Recommended Products/Accessories
K-6476 Sink Rack
K-6477 Sink Rack
K-8801 Sink drain and strainer with tailpiece
K-8799 Sink drain and strainer basket
K-23726 Drain treatment
K-23729 Stainless steel cleaner
Optional Products/Accessories
K-6434 Saddle Utility Rack
K-11352 Disposal Flange with Stopper
Included Components
Additional Components:
6476
91915
Codes/Standards
ASME A112.19.3/CSA B45.4
Lifetime Limited Warranty for
KOHLER® Stainless Steel Sinks
See website for detailed warranty information.
™
Undermount Smart Divide® large/medium
farmhouse sink
K-3945
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-22-2022 00:59 - US/CA
Vault
6-9/16"
(167 mm)
16-13/16" (427 mm)
1-1/2" OD
3-1/16"
(78 mm)
35-1/2" (902 mm)
21-1/4"
(540 mm)
6-7/16"
(164 mm)
34" (864 mm)
4-5/16"
(110 mm)
2" (51 mm)
3/4"
(19 mm)
14-11/16"
(373 mm)
9-5/16"
(237 mm)
6-11/16"
(170 mm)
Technical Information
All product dimensions are nominal.
Bowl configuration: Off-set Large/small
Installation: Undermount
Min. base cabinet
width:
36" (914 mm)
Bowl area (Left): Length: 19-11/16" (500 mm)
Width: 17-3/16" (437 mm)
Bowl depth: 9" (229 mm)
Bowl area (Right): Length: 11-11/16" (297 mm)
Width: 17-3/16" (437 mm)
Bowl depth: 9" (229 mm)
Drain hole: 3-11/16" (94 mm)
Template: 1166719-7, required, included
Notes
Install this product according to the installation
instructions.
The 3/4" (19 mm) side rim flanges are
supported without using the clip attachment.
See the installation guide for further
instructions.
™
Undermount Smart Divide® large/medium
farmhouse sink
K-3945
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-22-2022 00:59 - US/CA
