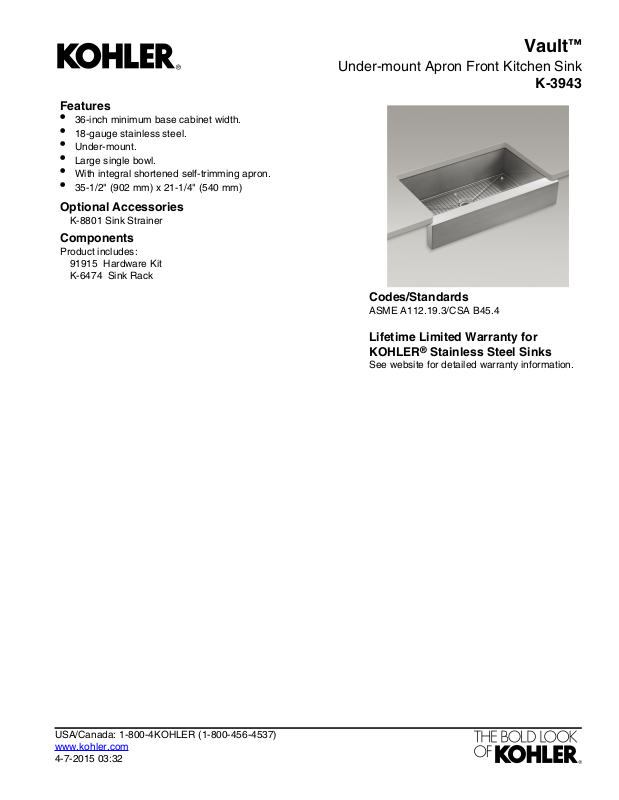

Features
•
36-inch minimum base cabinet width.
•
18-gauge stainless steel.
•
Under-mount.
•
Large single bowl.
•
With integral shortened self-trimming apron.
•
35-1/2" (902 mm) x 21-1/4" (540 mm)
Optional Accessories
K-8801 Sink Strainer
Components
Product includes:
91915 Hardware Kit
K-6474 Sink Rack
Vault
™
Under-mount Apron Front Kitchen Sink
K-3943
Codes/Standards
ASME A112.19.3/CSA B45.4
Lifetime Limited Warranty for
KOHLER® Stainless Steel Sinks
See website for detailed warranty information.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-7-2015 03:32
Vault
™
Under-mount Apron Front Kitchen Sink
K-3943

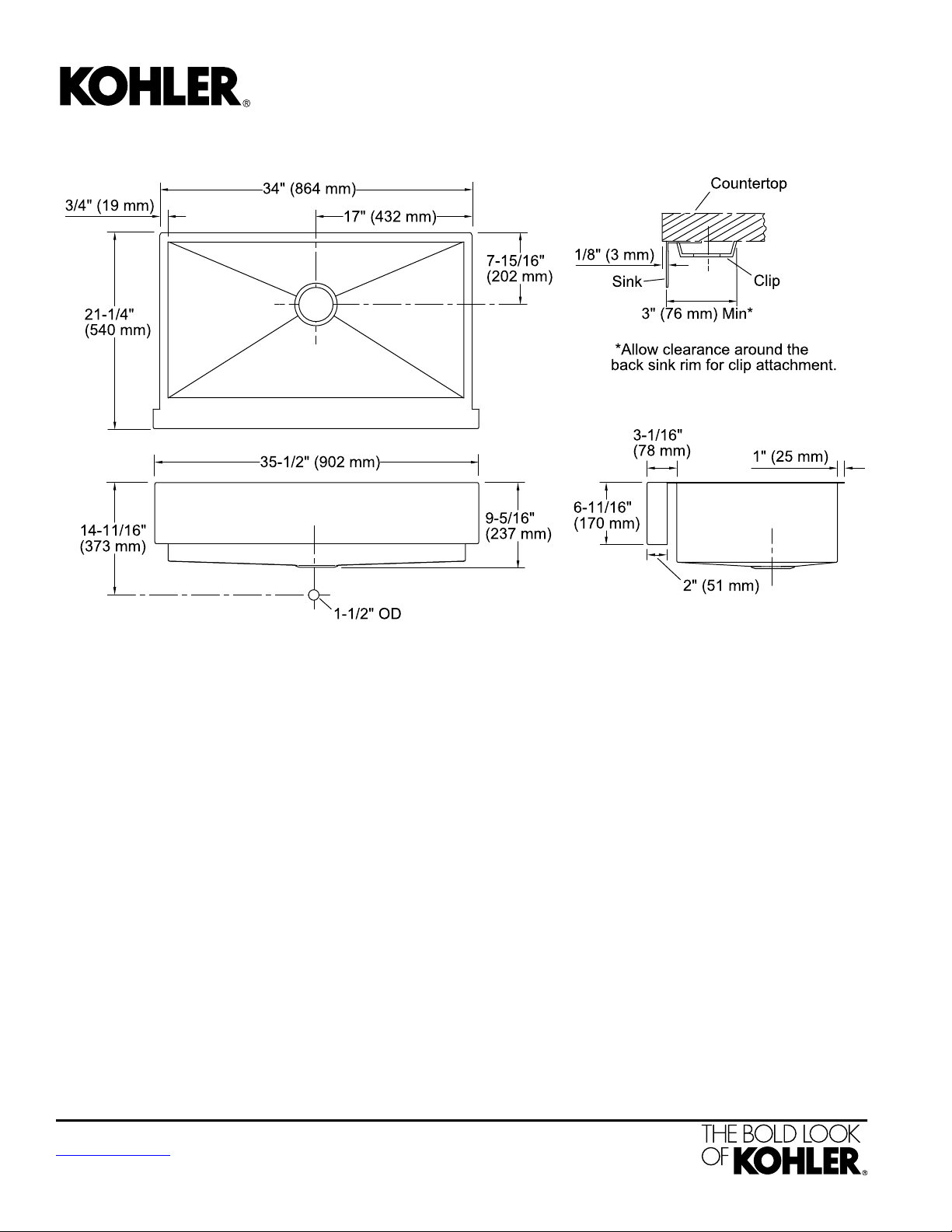

Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Top-mountInstallation:
36" (914 mm)Min. base cabinet
width:
Bowl area (Only)
Length: 32-1/2" (826 mm)
Width: 17-3/16" (437 mm)
Bowl depth: 9" (229 mm)
3-11/16" (94 mm)Drain hole:
Top-mount, 1166719-7, required, includedTemplate:
Notes
Install this product according to the installation
guide.
Allow a minimum of 3" (76 mm) clearance for the
back 1" (25 mm) sink rim flange for clip
attachment.
The 3/4" (19 mm) side rim flanges are supported
without using the clip attachment. See the
installation guide for further instructions.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-7-2015 03:32
