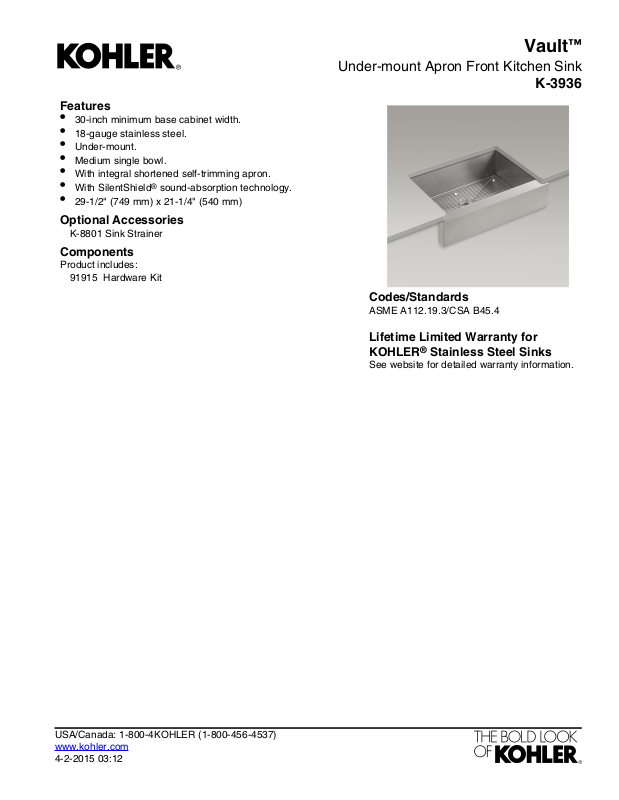

Features
•
30-inch minimum base cabinet width.
•
18-gauge stainless steel.
•
Under-mount.
•
Medium single bowl.
•
With integral shortened self-trimming apron.
•
With SilentShield® sound-absorption technology.
•
29-1/2" (749 mm) x 21-1/4" (540 mm)
Optional Accessories
K-8801 Sink Strainer
Components
Product includes:
91915 Hardware Kit
Vault
™
Under-mount Apron Front Kitchen Sink
K-3936
Codes/Standards
ASME A112.19.3/CSA B45.4
Lifetime Limited Warranty for
KOHLER® Stainless Steel Sinks
See website for detailed warranty information.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-2-2015 03:12
Vault
™
Under-mount Apron Front Kitchen Sink
K-3936
Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Top-mountInstallation:
Bowl area (Only)
Length: 26-1/2" (673 mm)
Width: 17-3/16" (437 mm)
Bowl depth: 9" (229 mm)
3-11/16" (94 mm)Drain hole:
Top-mount, 1166718-7, required, includedTemplate:
Notes
Install this product according to the installation
guide.
Allow a minimum of 3" (76 mm) clearance for the
back 1" (25 mm) sink rim flange for clip
attachment.
The 3/4" (19 mm) side rim flanges are supported
without using the clip attachment. See the
installation guide for further instructions.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-2-2015 03:12
