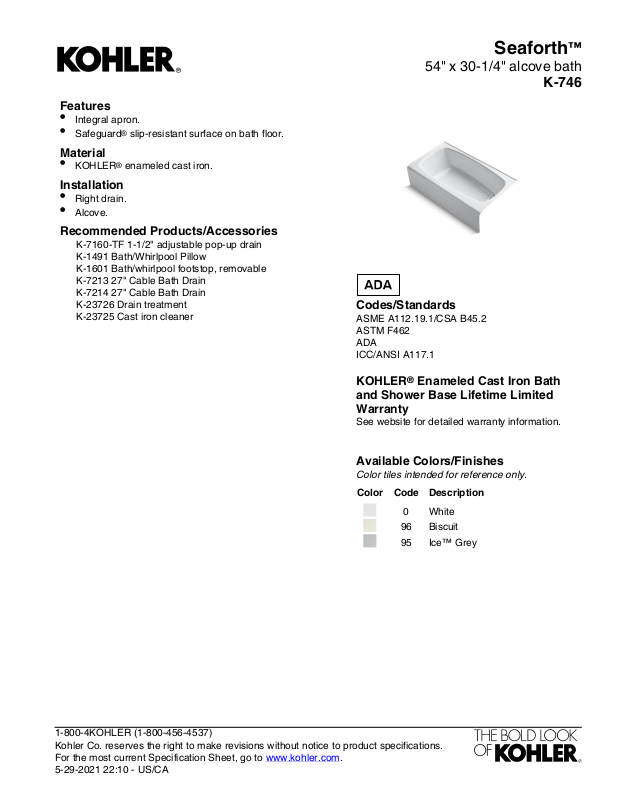

Seaforth
Features
•
Integral apron.
•
Safeguard® slip-resistant surface on bath floor.
Material
•
KOHLER® enameled cast iron.
Installation
•
Right drain.
•
Alcove.
Recommended Products/Accessories
K-7160-TF 1-1/2" adjustable pop-up drain
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/whirlpool footstop, removable
K-7213 27" Cable Bath Drain
K-7214 27" Cable Bath Drain
K-23726 Drain treatment
K-23725 Cast iron cleaner
Codes/Standards
ASME A112.19.1/CSA B45.2
ASTM F462
ADA
ICC/ANSI A117.1
KOHLER® Enameled Cast Iron Bath
and Shower Base Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
96 Biscuit
95 Ice™ Grey
™
54" x 30-1/4" alcove bath
K-746
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 22:10 - US/CA
Seaforth
3/4"
(19 mm)
30-1/4"
(768 mm)
54" (1372 mm)
3-1/4"
(83 mm)
2-7/8"
(73 mm)
3" (76 mm)
1/4" (6 mm)
1/2"
(13 mm)
Finished Wall
Finished Floor
Subfloor
1-1/2" Bath Drain
1-1/2" IPS
Thread
14"
(356 mm)
7/8" (22 mm)
8-1/2"
(216 mm)
Finished Wall
14"
(356 mm)
No change in measurements if connected
with drain illustrated. (K-7160-TF)
Lumbar
Angle 25°
Technical Information
All product dimensions are nominal.
Installation: Three-wall alcove
Drain location: Right
Basin area, bottom: 37" x 22" (940 mm x 559 mm)
Basin area, top: 48" x 24" (1219 mm x 610 mm)
Weight: 277 lbs (125.6 kg)
Minimum floor load: 49 lbs/ft² (239.2 kg/m²)
Water depth: 8-5/8" (219 mm)
Water capacity: 30 gal (113.6 L)
Minimum flat for
door:
2-15/16" (75 mm)
Notes
Measure your actual product for rough-in
details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
ADA compliant when installed to the specific
requirements of these regulations.
™
54" x 30-1/4" alcove bath
K-746
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 22:10 - US/CA
