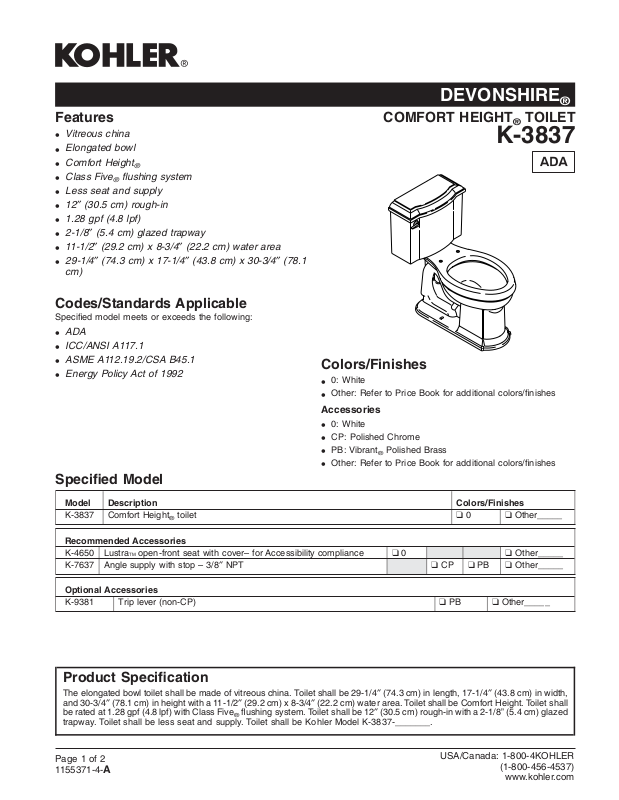

DEVONSHIRE
®
Features
Vitreous china
•
Elongated bowl
•
Comfort Height
•
Class Five
•
Less seat and supply
•
12″ (30.5 cm) rough-in
•
1.28 gpf (4.8 lpf)
•
2-1/8″ (5.4 cm) glazed trapway
•
11-1/2″ (29.2 cm) x 8-3/4″ (22.2 cm) water area
•
29-1/4″ (74.3 cm) x 17-1/4″ (43.8 cm) x 30-3/4″ (78.1
•
cm)
®
flushing system
®
Codes/Standards Applicable
Specified model meets or exceeds the following:
ADA
•
ICC/ANSI A117.1
•
ASME A112.19.2/CSA B45.1
•
Energy Policy Act of 1992
•
Specified Model
COMFORT HEIGHT®TOILET
K-3837
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
0: White
•
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-3837 Comfort Height
Recommended Accessories
K-4650 Lustra
K-7637 Angle supply with stop – 3/8″ NPT ❑ CP ❑ PB ❑ Other_____
Optional Accessories
K-9381 Trip lever (non-CP) ❑ PB ❑ Other_____
TM open-front seat with cover– for Accessibility compliance ❑ 0 ❑ Other_____
toilet ❑ 0 ❑ Other_____
®
Product Specification
The elongated bowl toilet shall be made of vitreous china. Toilet shall be 29-1/4″ (74.3 cm) in length, 17-1/4″ (43.8 cm) in width,
and 30-3/4″ (78.1 cm) in height with a 11-1/2″ (29.2 cm) x 8-3/4″ (22.2 cm) water area. Toilet shall be Comfort Height. Toilet shall
be rated at 1.28 gpf (4.8 lpf) with Class Five
trapway. Toilet shall be less seat and supply. Toilet shall be Kohler Model K-3837-_______.
Page 1 of 2
1155371-4-
A
flushing system. Toilet shall be 12″ (30.5 cm) rough-in with a 2-1/8” (5.4 cm) glazed
®
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
DEVONSHIRE
®
Technical Information
Fixture:
Configuration two-piece, elongated
Water per flush 1.28 gpf (4.8 lpf)
Passageway 2-1/8″ (5.4 cm)
Water area 11-1/2″ (29.2 cm) x
Water depth from rim 5-1/2″ (14 cm)
Seat post hole centers 5-1/2″ (14 cm)
Included components:
Elongated bowl K-4397
Tank K-4438
Tank cover 1044820
Trip lever 1126917
Tank accessory pack 73062
Bolt cap accessory pack 1013092
8-3/4″ (22.2 cm)
Installation Notes
Install this product according to the installation guide.
Will comply with the American Disabilities Act (ADA) when
installed per the requirements of the Accessibility Guidelines,
Section 604 Water Closets, of the Act. The Model Plumbing
Codes require the installation of elongated open-front toilet
seats in public bathrooms.
1-1/4"
(3.2 cm)
29-1/4" (74.3 cm)
7-13/16" (19.8 cm)
30-3/4"
(78.1 cm)
3"
(7.6 cm)
16-1/2"
(41.9 cm)
C
L of Outlet
12" (30.5 cm)
DEVONSHIRE®COMFORT HEIGHT®TOILET
Page2of2
1155371-4-
A
17-1/4"
(43.8 cm)
5"
(12.7 cm)
6"
3/8" NPT Supply
(15.2 cm)
Product Diagram
Front of Bowl
17-1/4"
(43.8 cm)
10"
(25.4 cm)
9-3/8"
(23.8 cm)
