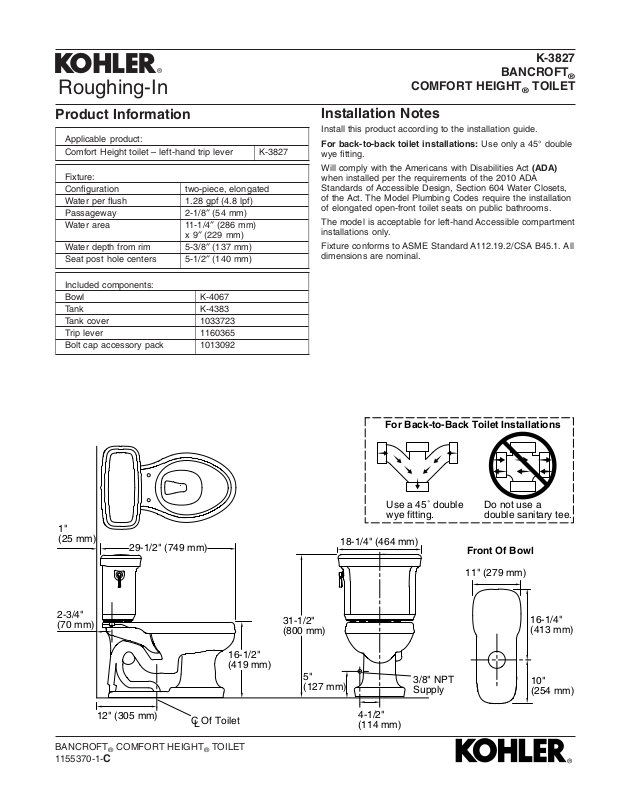

Roughing-In
K-3827
BANCROFT
COMFORT HEIGHT®TOILET
®
Product Information
Applicable product:
Comfort Height toilet – left-hand trip lever K-3827
Fixture:
Configuration two-piece, elongated
Water per flush 1.28 gpf (4.8 lpf)
Passageway 2-1/8″ (54 mm)
Water area 11-1/4″ (286 mm)
x9″ (229 mm)
Water depth from rim 5-3/8″ (137 mm)
Seat post hole centers 5-1/2″ (140 mm)
Included components:
Bowl K-4067
Tank K-4383
Tank cover 1033723
Trip lever 1160365
Bolt cap accessory pack 1013092
Installation Notes
Install this product according to the installation guide.
For back-to-back toilet installations: Use only a 45° double
wye fitting.
Will comply with the Americans with Disabilities Act (ADA)
when installed per the requirements of the 2010 ADA
Standards of Accessible Design, Section 604 Water Closets,
of the Act. The Model Plumbing Codes require the installation
of elongated open-front toilet seats on public bathrooms.
The model is acceptable for left-hand Accessible compartment
installations only.
Fixture conforms to ASME Standard A112.19.2/CSA B45.1. All
dimensions are nominal.
1"
(25 mm)
2-3/4"
(70 mm)
29-1/2" (749 mm)
12" (305 mm)
16-1/2"
(419 mm)
C Of Toilet
L
31-1/2"
(800 mm)
5"
(127 mm)
For Back-to-Back Toilet Installations
Use a 45˚ double
wye fitting.
18-1/4" (464 mm)
4-1/2"
(114 mm)
3/8" NPT
Supply
Do not use a
double sanitary tee.
Front Of Bowl
11" (279 mm)
16-1/4"
(413 mm)
10"
(254 mm)
BANCROFT®COMFORT HEIGHT®TOILET
1155370-1-
