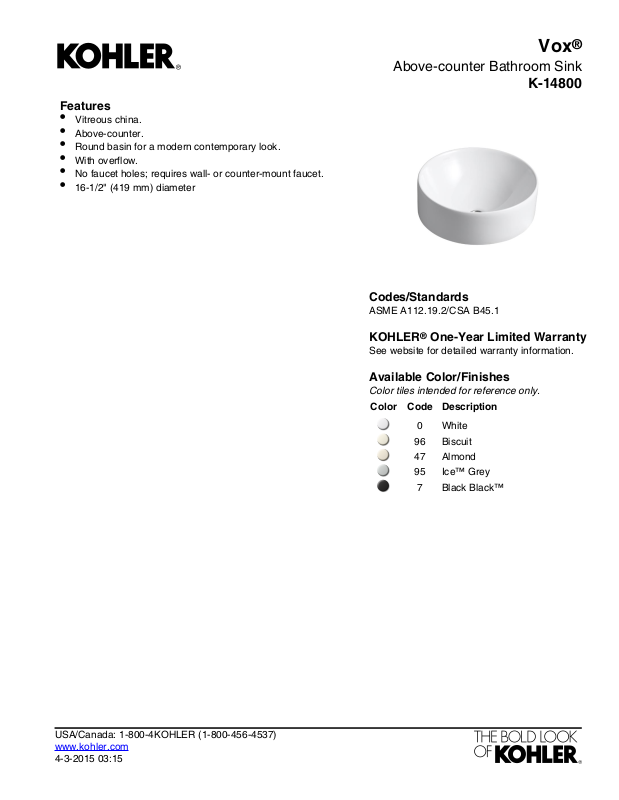

Page 1
Features
•
Vitreous china.
•
Above-counter.
•
Round basin for a modern contemporary look.
•
With overflow.
•
No faucet holes; requires wall- or counter-mount faucet.
•
16-1/2" (419 mm) diameter
Vox
®
Above-counter Bathroom Sink
K-14800
Codes/Standards
ASME A112.19.2/CSA B45.1
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
Ice™ Grey95
Black Black™7
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-3-2015 03:15
Page 2
Vox
®
Above-counter Bathroom Sink
K-14800
Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Above-counterInstallation:
Bowl area
Template:
Diameter: 15-1/2" (394 mm)
Water depth: 5-3/4" (146 mm)
1-3/4" (44 mm)Drain hole:
Above-counter, 1144643-7, required,
included
Notes
Install this product according to the installation
guide.
Choose a faucet that will provide adequate
clearance and will direct the water stream to the
center of the bathroom sink.
Spout must be mounted high enough to clear
5-5/16" (135 mm) rim height and provide a 1" (25
mm) min air gap per ASME A112.1.2.
NOTICE: Countertop manufacturer or cutter must
use the cut-out template provided with the
product, or a current one provided by Kohler Co.
(call 1-800-4KOHLER). Kohler Co. is not
responsible for cutout errors when incorrect
cut-out template is used.
Product rests on a countertop. Consider height
of product when designing installation.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-3-2015 03:15
