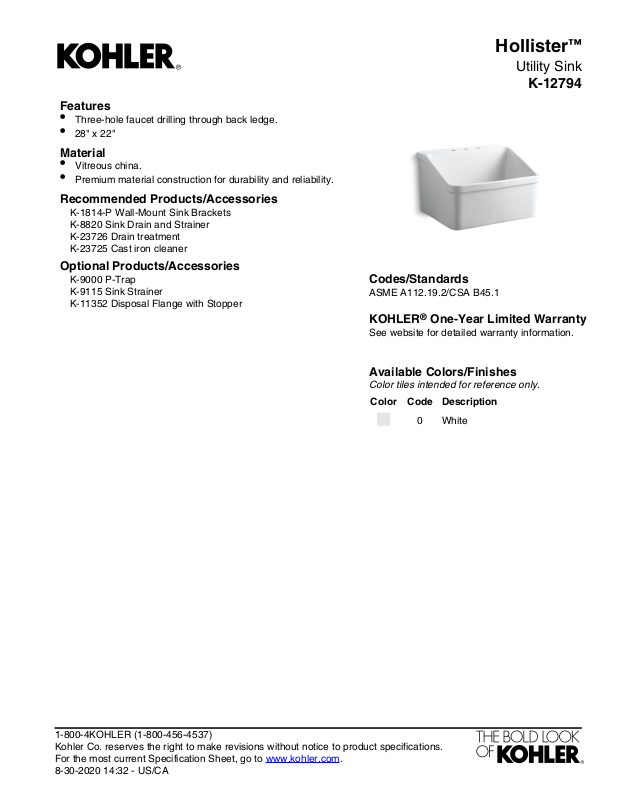

Page 1
Features
•
Three-hole faucet drilling through back ledge.
•
28" x 22"
Material
•
Vitreous china.
•
Premium material construction for durability and reliability.
Recommended Products/Accessories
K-1814-P Wall-Mount Sink Brackets
K-8820 Sink Drain and Strainer
K-23726 Drain treatment
K-23725 Cast iron cleaner
Optional Products/Accessories
K-9000 P-Trap
K-9115 Sink Strainer
K-11352 Disposal Flange with Stopper
Hollister
™
Utility Sink
K-12794
Codes/Standards
ASME A112.19.2/CSA B45.1
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-30-2020 14:32 - US/CA
Page 2
1-1/2"
Outlet
36"
(914 mm)
11"
(279 mm)
22-1/2" (572 mm)
12"
(305 mm)
10"
(254 mm)
5"
(127 mm)
3" (76 mm)
19-1/4"
(489 mm)
5-1/2" (140 mm)
28" (711 mm)
22"
(559 mm)
4" (102 mm)
Hollister
Utility Sink
K-12794
™
Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Top-mountInstallation:
Bowl area (Only):
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-30-2020 14:32 - US/CA
Length: 26" (660 mm)
Width: 16" (406 mm)
Water depth: 11-1/8" (283 mm)
3Number of deck holes:
8" (203 mm)Faucet hole spacing:
1-3/8" (35 mm)Faucet hole(s):
2-1/4" (57 mm)Drain hole:
Notes
Install this product according to the installation
instructions.
