Features
•
Single rectangular basin.
•
8-inch centers.
•
30" (762 mm) x 22" (559 mm) x 8-5/8" (219 mm)
•
Strainer not included.
Material
•
Vitreous china.
Installation
•
Wall-mount
•
Requires K-1814-P (sold separately) and service part 63002
(included) for installation.
Gilford
™
30" x 22" bracket-mounted utility sink
K-12787
Required Products/Accessories
K-1814-P Wall-Mount Sink Brackets
Recommended Products/Accessories
K-8820 Sink Drain and Strainer
K-9000 P-Trap
K-9115 Sink Strainer
Included Components
Product consists of:
63002 Bracket, Tie Bar
Codes/Standards
ASME A112.19.2/CSA B45.1
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-7-2019 06:32 - US/CA
Page 2
Gilford
™
30" x 22" bracket-mounted utility sink
K-12787

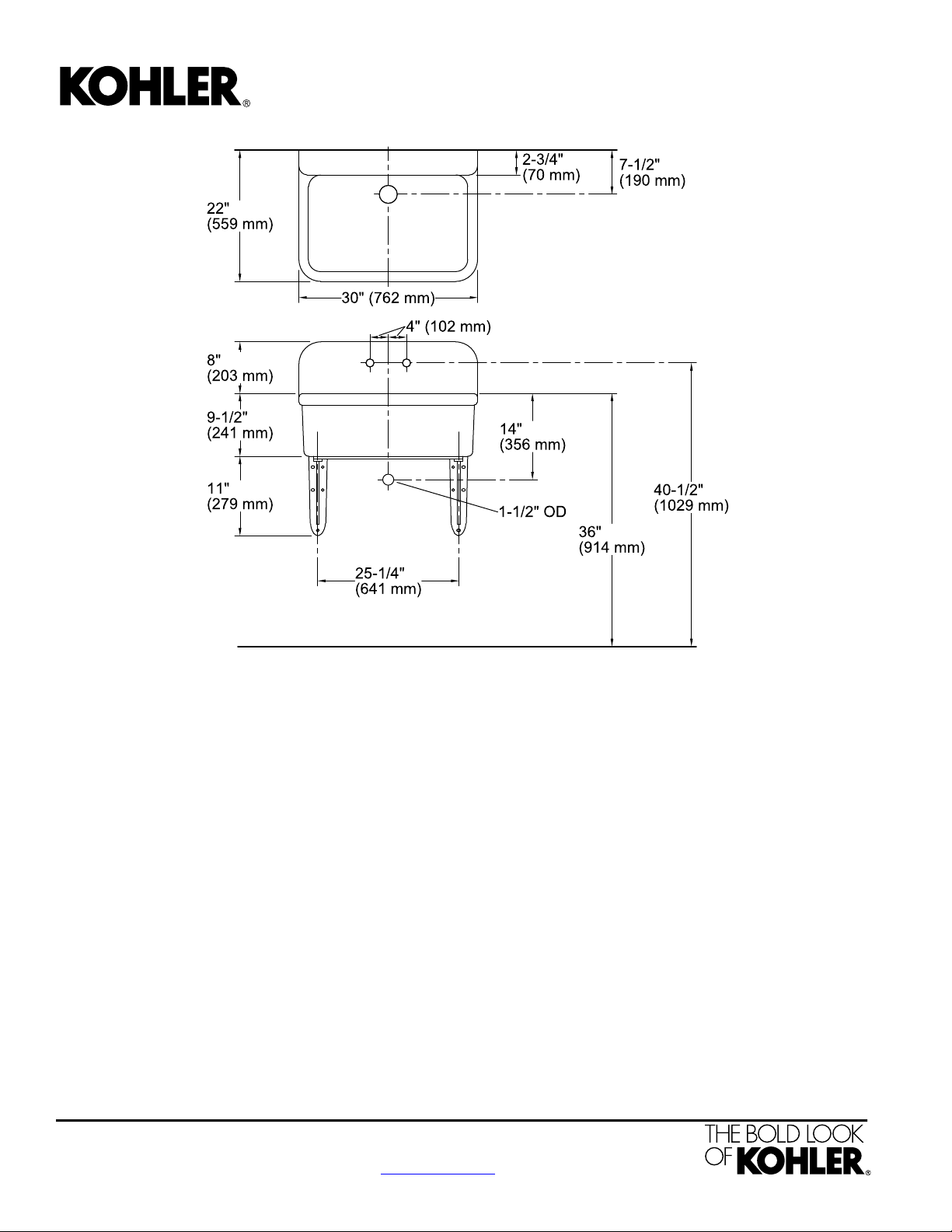

Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Wall-mountInstallation:
Bowl area (Only):
Length: 28" (711 mm)
Width: 18" (457 mm)
Water depth: 8-5/8" (219 mm)
2Number of deck holes:
8" (203 mm)Faucet hole spacing:
1-3/8" (35 mm)Faucet hole(s):
2-1/4" (57 mm)Drain hole:
Notes
Install this product according to the installation
instructions.
