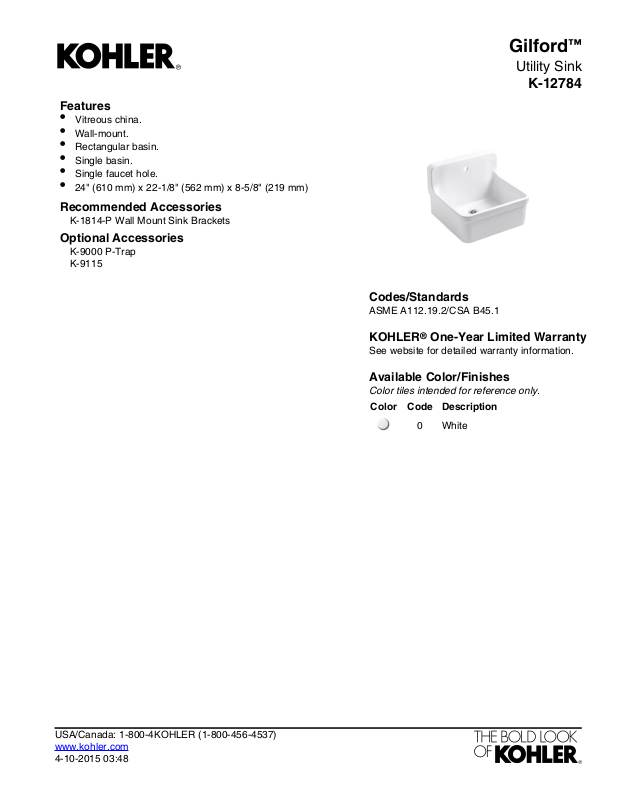

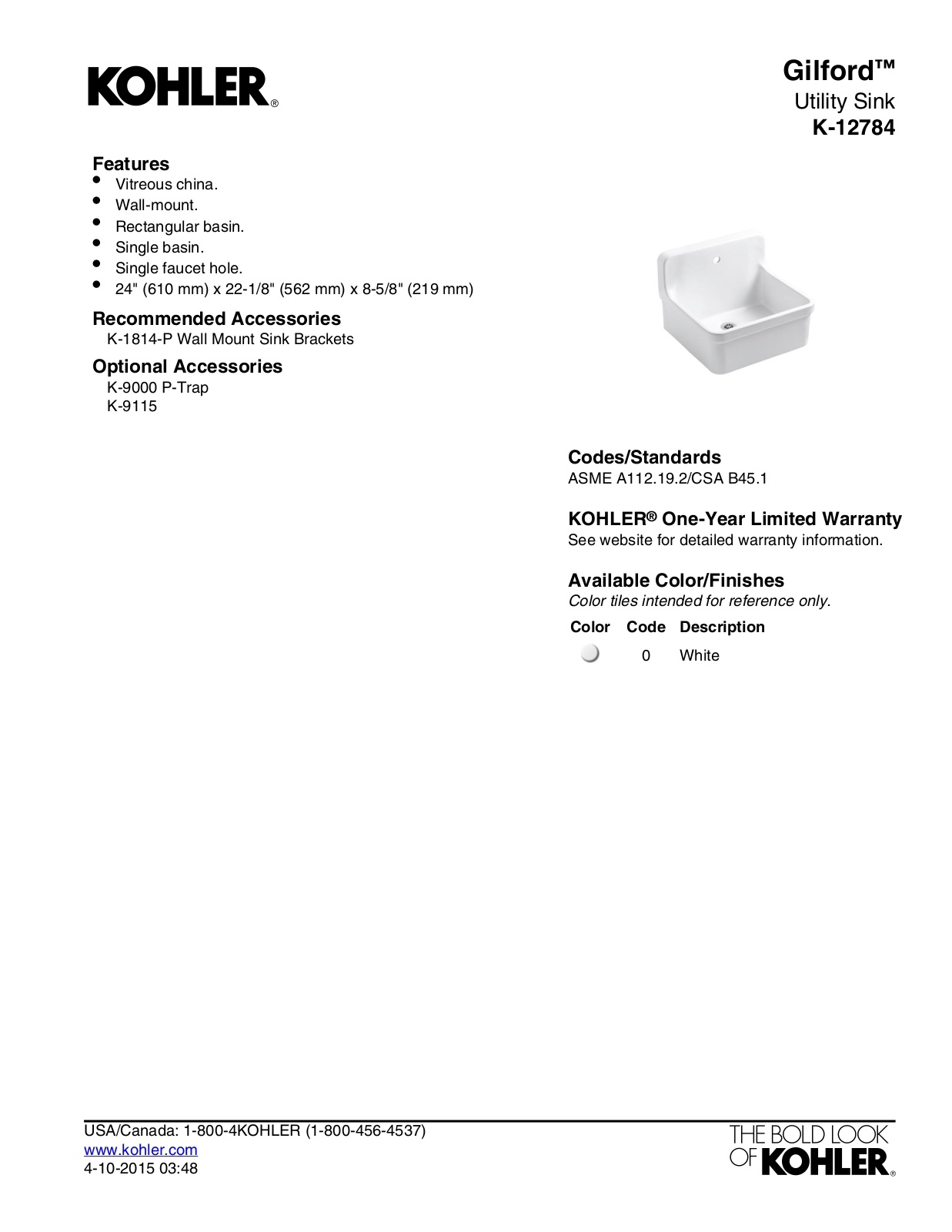

Features
•
Vitreous china.
•
Wall-mount.
•
Rectangular basin.
•
Single basin.
•
Single faucet hole.
•
24" (610 mm) x 22-1/8" (562 mm) x 8-5/8" (219 mm)
Recommended Accessories
K-1814-P Wall Mount Sink Brackets
Optional Accessories
K-9000 P-Trap
K-9115
Gilford
™
Utility Sink
K-12784
Codes/Standards
ASME A112.19.2/CSA B45.1
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-10-2015 03:48
2-3/4" (70 mm)
Gilford
Utility Sink
K-12784
™

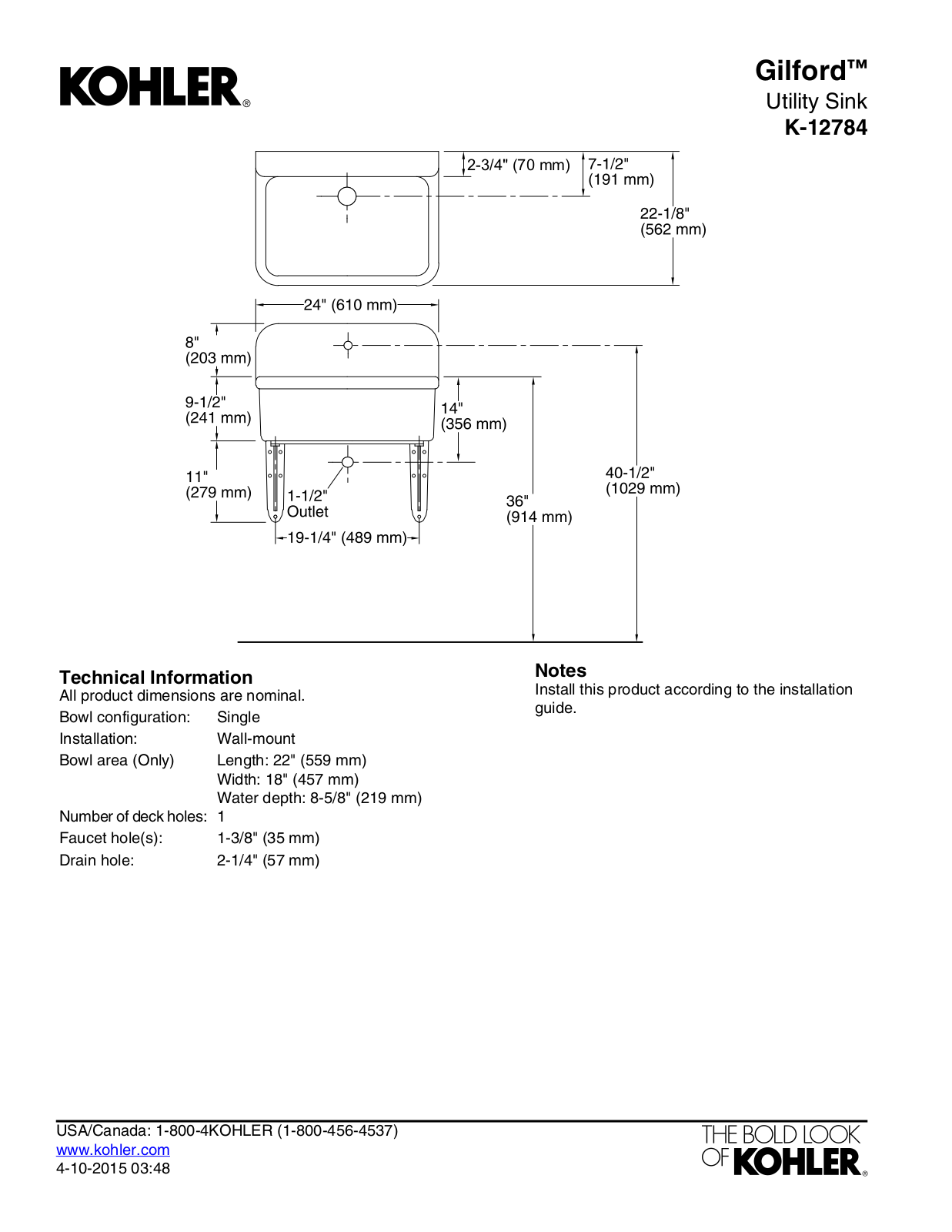

Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Wall-mountInstallation:
Bowl area (Only)
Length: 22" (559 mm)
Width: 18" (457 mm)
Water depth: 8-5/8" (219 mm)
1Number of deck holes:
1-3/8" (35 mm)Faucet hole(s):
2-1/4" (57 mm)Drain hole:
Notes
Install this product according to the installation
guide.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-10-2015 03:48
