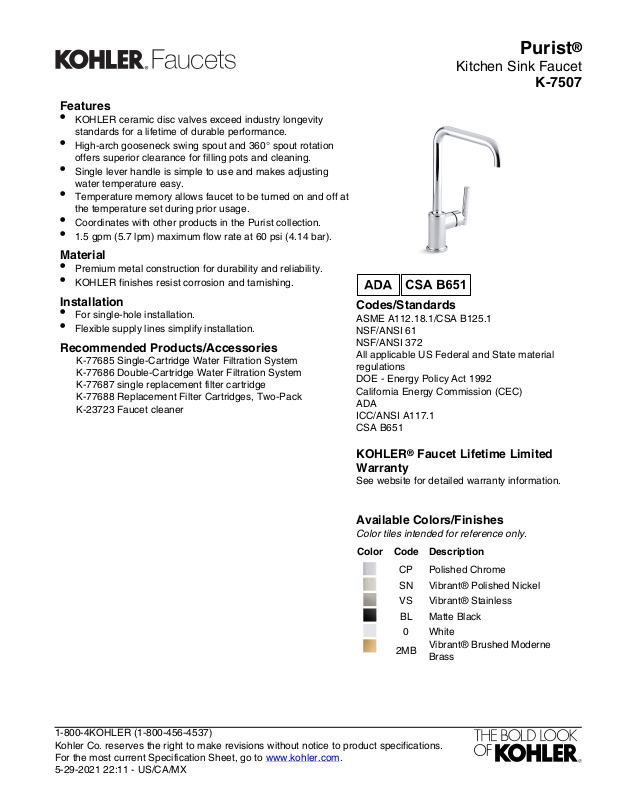

Page 1
Purist
Features
•
KOHLER ceramic disc valves exceed industry longevity
standards for a lifetime of durable performance.
•
High-arch gooseneck swing spout and 360° spout rotation
offers superior clearance for filling pots and cleaning.
•
Single lever handle is simple to use and makes adjusting
water temperature easy.
•
Temperature memory allows faucet to be turned on and off at
the temperature set during prior usage.
•
Coordinates with other products in the Purist collection.
•
1.5 gpm (5.7 lpm) maximum flow rate at 60 psi (4.14 bar).
Material
•
Premium metal construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
For single-hole installation.
•
Flexible supply lines simplify installation.
Recommended Products/Accessories
K-77685 Single-Cartridge Water Filtration System
K-77686 Double-Cartridge Water Filtration System
K-77687 single replacement filter cartridge
K-77688 Replacement Filter Cartridges, Two-Pack
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
CSA B651
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
SN Vibrant® Polished Nickel
VS Vibrant® Stainless
BL Matte Black
0 White
2MB
Vibrant® Brushed Moderne
Brass
®
Kitchen Sink Faucet
K-7507
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 22:11 - US/CA/MX
Page 2
Purist
2-1/4"
(57 mm)
3-9/16"
(90 mm)
5-1/2"
(140 mm)
2-1/2"
(64 mm)
Max
24-1/2"
(622 mm)
8-7/8"
(225 mm)
8" (203 mm)
11-3/8"
(289 mm)
Ø 2"
(51 mm)
3/8"
Compression
Fittings
Ø 1-5/16"
(33 mm) Min
Ø 1-7/16"
(37 mm) Max
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
instructions.
ADA, CSA B651 compliant when installed to
the specific requirements of these regulations.
®
Kitchen Sink Faucet
K-7507
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 22:11 - US/CA/MX
