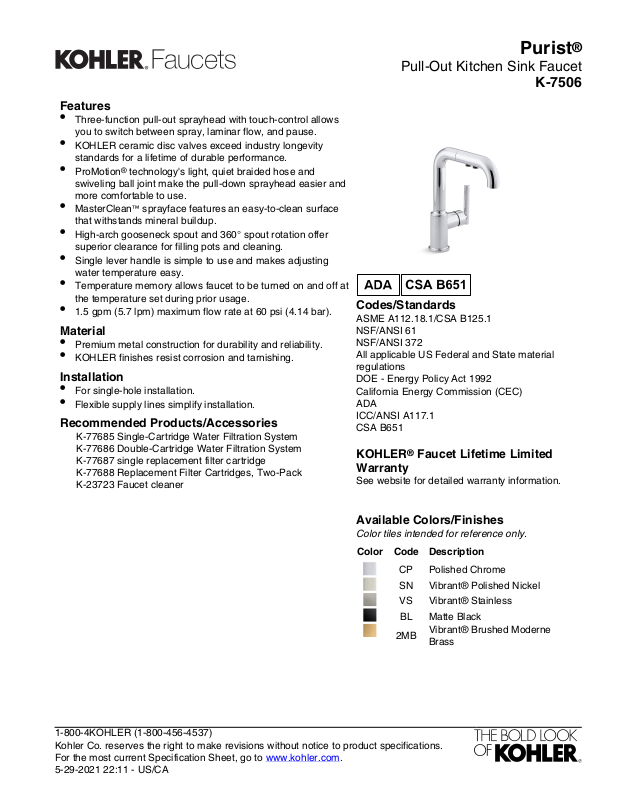

Purist
Features
•
Three-function pull-out sprayhead with touch-control allows
you to switch between spray, laminar flow, and pause.
•
KOHLER ceramic disc valves exceed industry longevity
standards for a lifetime of durable performance.
•
ProMotion® technology's light, quiet braided hose and
swiveling ball joint make the pull-down sprayhead easier and
more comfortable to use.
•
MasterClean™ sprayface features an easy-to-clean surface
that withstands mineral buildup.
•
High-arch gooseneck spout and 360° spout rotation offer
superior clearance for filling pots and cleaning.
•
Single lever handle is simple to use and makes adjusting
water temperature easy.
•
Temperature memory allows faucet to be turned on and off at
the temperature set during prior usage.
•
1.5 gpm (5.7 lpm) maximum flow rate at 60 psi (4.14 bar).
Material
•
Premium metal construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
For single-hole installation.
•
Flexible supply lines simplify installation.
Recommended Products/Accessories
K-77685 Single-Cartridge Water Filtration System
K-77686 Double-Cartridge Water Filtration System
K-77687 single replacement filter cartridge
K-77688 Replacement Filter Cartridges, Two-Pack
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
CSA B651
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
SN Vibrant® Polished Nickel
VS Vibrant® Stainless
BL Matte Black
2MB
Vibrant® Brushed Moderne
Brass
®
Pull-Out Kitchen Sink Faucet
K-7506
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 22:11 - US/CA
Purist
Ø 1-5/16"
Ø 2"
(51 mm)
3/8" Compression
Fitting
31-1/2"
(800 mm)
3-5/8" (92 mm)
2-1/2"
(64 mm) Max
9-5/16"
(237 mm)
9-7/8"
(251 mm)
7-7/16"
(189 mm)
7" (178 mm)
COLD
2-1/4"
(57 mm)
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
guide.
ADA complaint for faucet handles only.
ADA, CSA B651 compliant when installed to
the specific requirements of these regulations.
®
Pull-Out Kitchen Sink Faucet
K-7506
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 22:11 - US/CA
