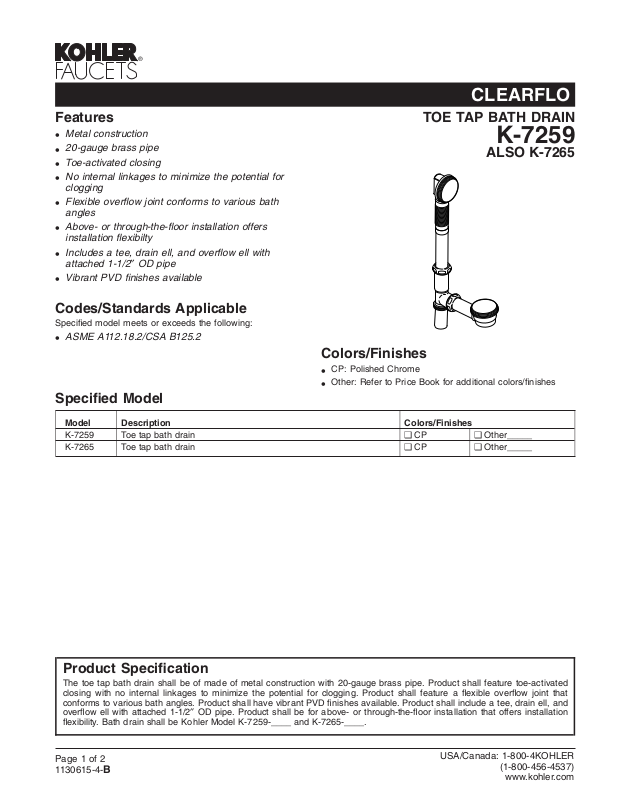

Page 1
CLEARFLO
Features
Metal construction
•
20-gauge brass pipe
•
Toe-activated closing
•
No internal linkages to minimize the potential for
•
clogging
Flexible overflow joint conforms to various bath
•
angles
Above- or through-the-floor installation offers
•
installation flexibilty
Includes a tee, drain ell, and overflow ell with
•
attached 1-1/2″ OD pipe
Vibrant PVD finishes available
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.18.2/CSA B125.2
•
Specified Model
TOE TAP BATH DRAIN
K-7259
ALSO K-7265
Colors/Finishes
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-7259 Toe tap bath drain ❑ CP ❑ Other_____
K-7265 Toe tap bath drain ❑ CP ❑ Other_____
Product Specification
The toe tap bath drain shall be of made of metal construction with 20-gauge brass pipe. Product shall feature toe-activated
closing with no internal linkages to minimize the potential for clogging. Product shall feature a flexible overflow joint that
conforms to various bath angles. Product shall have vibrant PVD finishes available. Product shall include a tee, drain ell, and
overflow ell with attached 1-1/2″ OD pipe. Product shall be for above- or through-the-floor installation that offers installation
flexibility. Bath drain shall be Kohler Model K-7259-____ and K-7265-____.
Page 1 of 2
1130615-4-
USA/Canada: 1-800-4KOHLER
B
(1-800-456-4537)
www.kohler.com
Page 2
CLEARFLO
Installation Notes
Install this product according to the installation guide.
The elbow brass pipe subassemblies noted as L-1 and L-2
must be cut to the correct length.
L-1
Pipe supplied
2-5/8"
(67 mm)
NOTE:
L-2
Pipe supplied
1-1/2" OD
K-7259
K-7265
For L-1 and L-2,
cut supplied pipes to fit.
1-3/8"
(35 mm)
L-1
17-1/4" (438 mm)
23" (584 mm) 18" (457 mm)
2-1/4"
(57 mm)
L-2
8-1/4" (210 mm)
CLEARFLO TOE TAP BATH DRAIN
Page2of2
1130615-4-
B
