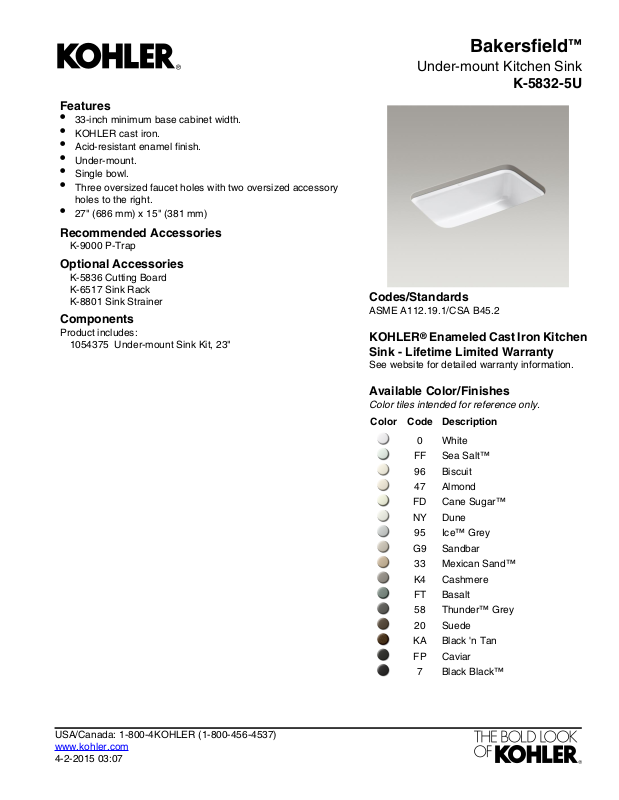

Features
•
33-inch minimum base cabinet width.
•
KOHLER cast iron.
•
Acid-resistant enamel finish.
•
Under-mount.
•
Single bowl.
•
Three oversized faucet holes with two oversized accessory
holes to the right.
•
27" (686 mm) x 15" (381 mm)
Recommended Accessories
K-9000 P-Trap
Optional Accessories
K-5836 Cutting Board
K-6517 Sink Rack
K-8801 Sink Strainer
Components
Product includes:
1054375 Under-mount Sink Kit, 23"
Bakersfield
™
Under-mount Kitchen Sink
K-5832-5U
Codes/Standards
ASME A112.19.1/CSA B45.2
KOHLER® Enameled Cast Iron Kitchen
Sink - Lifetime Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Sea Salt™FF
Biscuit96
Almond47
Cane Sugar™FD
DuneNY
Ice™ Grey95
SandbarG9
Mexican Sand™33
CashmereK4
BasaltFT
Thunder™ Grey58
Suede20
Black 'n TanKA
CaviarFP
Black Black™7
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-2-2015 03:07
22"
Bakersfield
™
Under-mount Kitchen Sink
K-5832-5U
Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Under-mountInstallation:
Bowl area
Template:
Length: 27" (686 mm)
Width: 15" (381 mm)
Bowl depth: 8" (203 mm)
5Number of deck holes:
2-3/8" (60 mm)Faucet hole(s):
3-5/8" (92 mm)Drain hole:
Under-mount, 1139754-7, required,
included
Notes
Install this product according to the installation
guide.
Faucet holes in under-mount fixture are oversized
at Ø 2-3/8" (60 mm). Drill faucet holes in counter
according to fitting rough-in.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-2-2015 03:07
