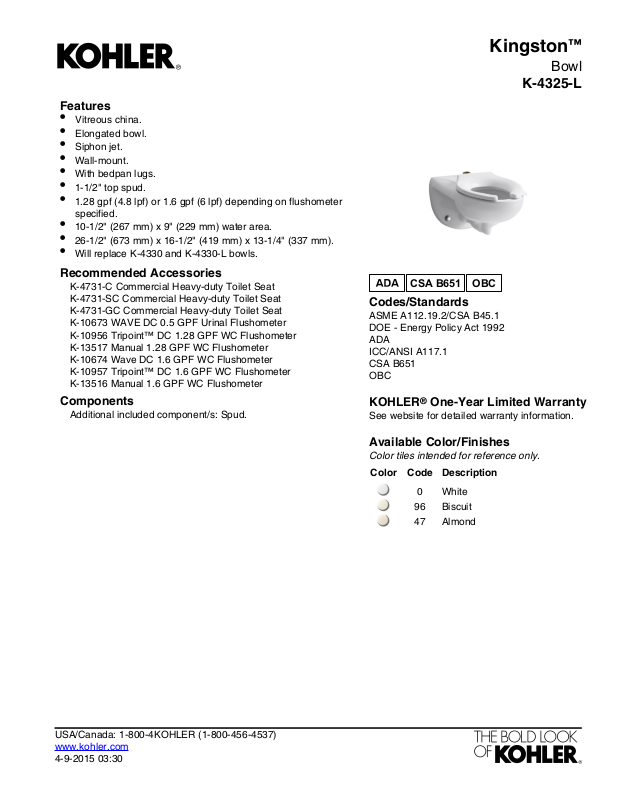

Features
CSA B651
OBC
•
Vitreous china.
•
Elongated bowl.
•
Siphon jet.
•
Wall-mount.
•
With bedpan lugs.
•
1-1/2" top spud.
•
1.28 gpf (4.8 lpf) or 1.6 gpf (6 lpf) depending on flushometer
specified.
•
10-1/2" (267 mm) x 9" (229 mm) water area.
•
26-1/2" (673 mm) x 16-1/2" (419 mm) x 13-1/4" (337 mm).
•
Will replace K-4330 and K-4330-L bowls.
Recommended Accessories
K-4731-C Commercial Heavy-duty Toilet Seat
K-4731-SC Commercial Heavy-duty Toilet Seat
K-4731-GC Commercial Heavy-duty Toilet Seat
K-10673 WAVE DC 0.5 GPF Urinal Flushometer
K-10956 Tripoint™ DC 1.28 GPF WC Flushometer
K-13517 Manual 1.28 GPF WC Flushometer
K-10674 Wave DC 1.6 GPF WC Flushometer
K-10957 Tripoint™ DC 1.6 GPF WC Flushometer
K-13516 Manual 1.6 GPF WC Flushometer
Kingston
Codes/Standards
ASME A112.19.2/CSA B45.1
DOE - Energy Policy Act 1992
ADA
ICC/ANSI A117.1
CSA B651
OBC
™
Bowl
K-4325-L
Components
Additional included component/s: Spud.
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-9-2015 03:30
C
Kingston
Bowl
K-4325-L
™

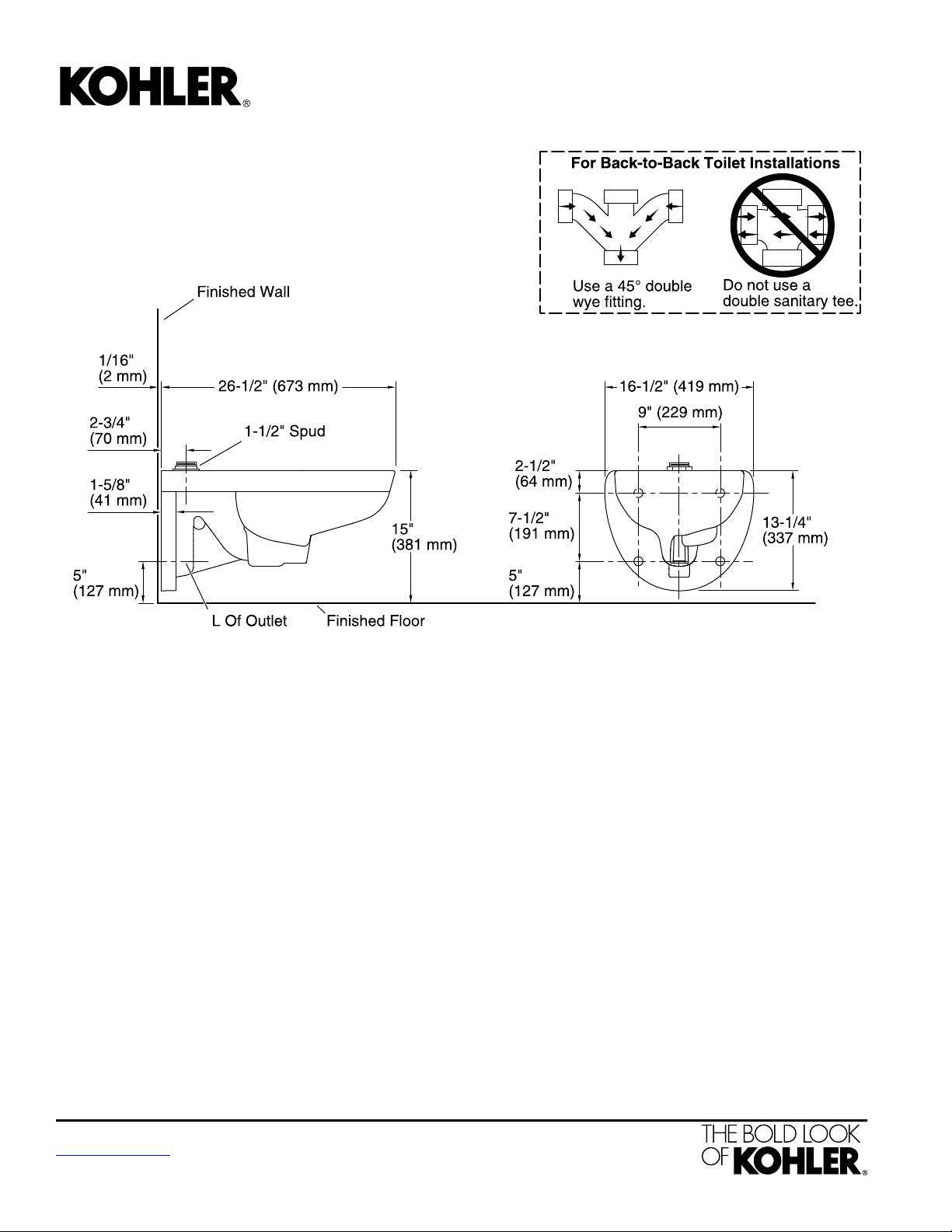

Technical Information
All product dimensions are nominal.
Elongated frontBowl shape:
1-1/2", Inlet, TopSpud size:
2-1/8" (54 mm)Trap passageway:
10-1/2" x 9" (267 mm x 229 mm)Water surface size:
5-1/4" (133 mm)Rim to water surface:
5-1/2" (140 mm)Seat-mounting holes:
Fixture Supply Requirements
35 psi (241.3 kPa)Min static pressure:
80 psi (551.6 kPa)Max static pressure:
25 psi (172.4 kPa)Min flowing pressure:
25 gpm (94.6 lpm)Min flow rate:
Notes
Install this product according to the installation
guide.
Refer to manufacturer’s instructions and local
codes for flushometer requirements.
For back-to-back toilet installations: Use only a
45° double wye fitting.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
The Model Plumbing Codes require the
installation of elongated open-front toilet seats
on public bathrooms.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-9-2015 03:30
