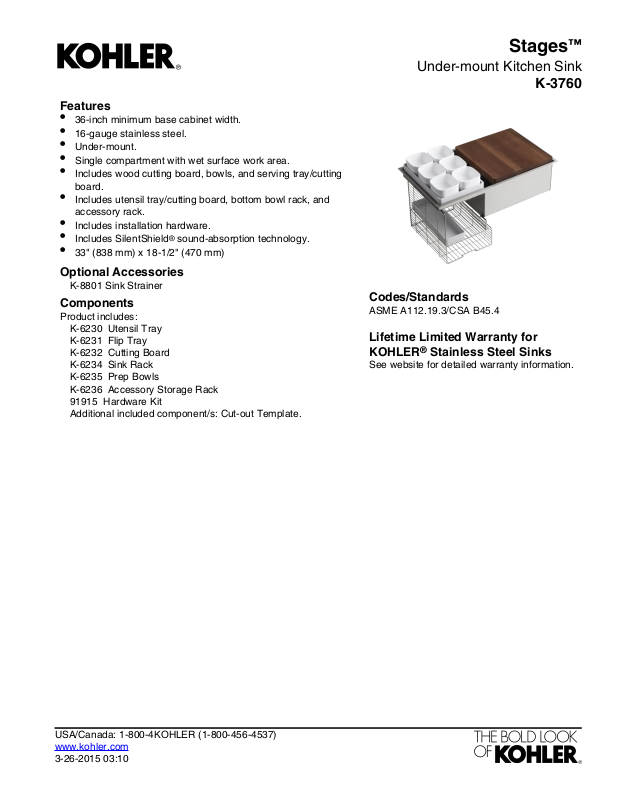

Features
•
36-inch minimum base cabinet width.
•
16-gauge stainless steel.
•
Under-mount.
•
Single compartment with wet surface work area.
•
Includes wood cutting board, bowls, and serving tray/cutting
board.
•
Includes utensil tray/cutting board, bottom bowl rack, and
accessory rack.
•
Includes installation hardware.
•
Includes SilentShield® sound-absorption technology.
•
33" (838 mm) x 18-1/2" (470 mm)
Optional Accessories
K-8801 Sink Strainer
Components
Product includes:
K-6230 Utensil Tray
K-6231 Flip Tray
K-6232 Cutting Board
K-6234 Sink Rack
K-6235 Prep Bowls
K-6236 Accessory Storage Rack
91915 Hardware Kit
Additional included component/s: Cut-out Template.
Stages
Under-mount Kitchen Sink
K-3760
Codes/Standards
ASME A112.19.3/CSA B45.4
Lifetime Limited Warranty for
KOHLER® Stainless Steel Sinks
See website for detailed warranty information.
™
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
3-26-2015 03:10
33" (838 m)
Stages
™
Under-mount Kitchen Sink
K-3760
Technical Information
All product dimensions are nominal.
OffsetBowl configuration:
width:
Bowl area
Template:
Under-mountInstallation:
36" (914 mm)Min. base cabinet
Length: 31-1/2" (800 mm)
Width: 17" (432 mm)
Bowl depth: 9-1/2" (241 mm)
Water depth: 9-1/2" (241 mm)
3-5/8" (92 mm)Drain hole:
Under-mount, 1109793-7, required,
included
Notes
Install this product according to the installation
guide.
Allow a minimum of 3" (76 mm) clearance around
the sink rim for clip attachment.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
3-26-2015 03:10
