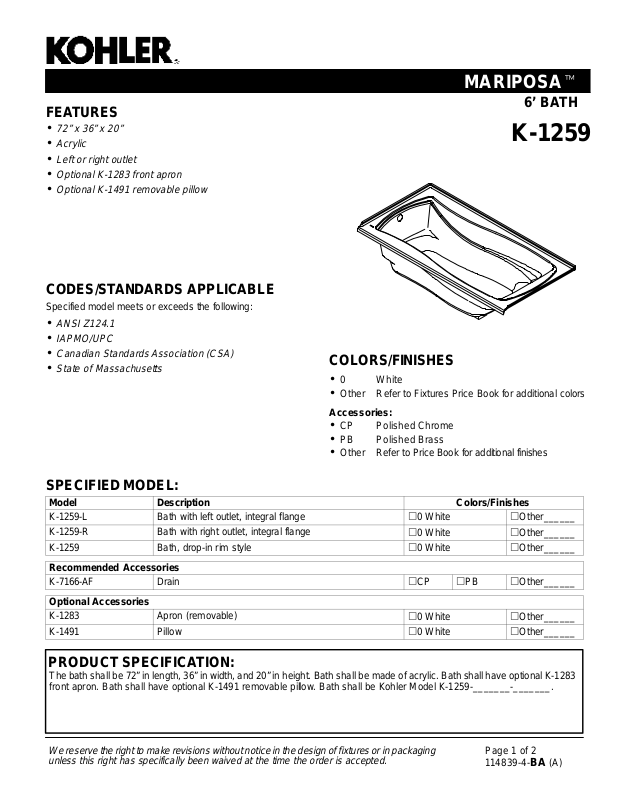

MARIPOSA
FEA T URES
•
72” x 36” x 20”
•
Acrylic
•
Left or right outlet
•
Optional K-1283 front apron
•
Optional K-1491 removable pillow
CODES/STANDARDS APPLICABLE
Specified model meets or exceeds the following:
•
ANSI Z124.1
•
IAPMO/UPC
•
Canadian Standards Association (CSA)
•
State of Massachusetts
6’ BATH
K-1259
COLORS/FINISHES
• 0 White
• Other Refer to Fixtures Price Book for additional colors
Accessories:
• CP Polished Chrome
• PB Polished Brass
• Other Refer to Price Book for additional finis hes
SPECIFIED MODEL:
Model Description Colors/Finishe s
K-1259-L Bath with left outlet, int egral flange
K-1259-R Bath with right outlet, int egr al flange
K-1259 Bath, drop-in rim style
Recommended Accesso ries
K-7166-AF Drain
Optio n al Accesso ri es
K-1283 Apron (removable)
K-1491 Pillow
0 White Other______
0 White Other______
0 White Other______
CP PB Other______
0 White Other______
0 White Other______
PRODUCT SPECIFICATION:
The bath shall be 72” in length, 36” in width, and 20” in height. Bath shall be made of acrylic. Bath shall have optional K-1283
front apron. Bath shall have optional K- 1491 removable pillow. Bath shall be Kohler Model K-1259-_______-_______.
We reserve the right to make revisions without notice in the design of fixtures or in packaging
unless this right has specific ally been waived at the tim e the order is accept ed.
Page 1 of 2
114839-4-BA (A)
MARIPOSA
PRODUCT INFORMATION
Fixture*: basin area top area weight
Bathing well 50” x 24” 65” x 27” 77 lbs.
water depth capacity
To overflow 14” 72 gal.
* Approximate measurements for comparison only.
INSTALLATION NOTES
The apron must be installed before the finish floor and wall
materials are installed.
18”
1-13/16”
1-1/4”
3-1/2”
1.25>132
10-1/4”
2-7/8”
3”
72”
1”
Roughing-In Notes
No change in measurements if connected with drain illustrated.
Cut-out K-1259 drop-in rim style, 70” x 34”
Faucet area recommended
1-1/2”
20”
1-1/2” O.D.

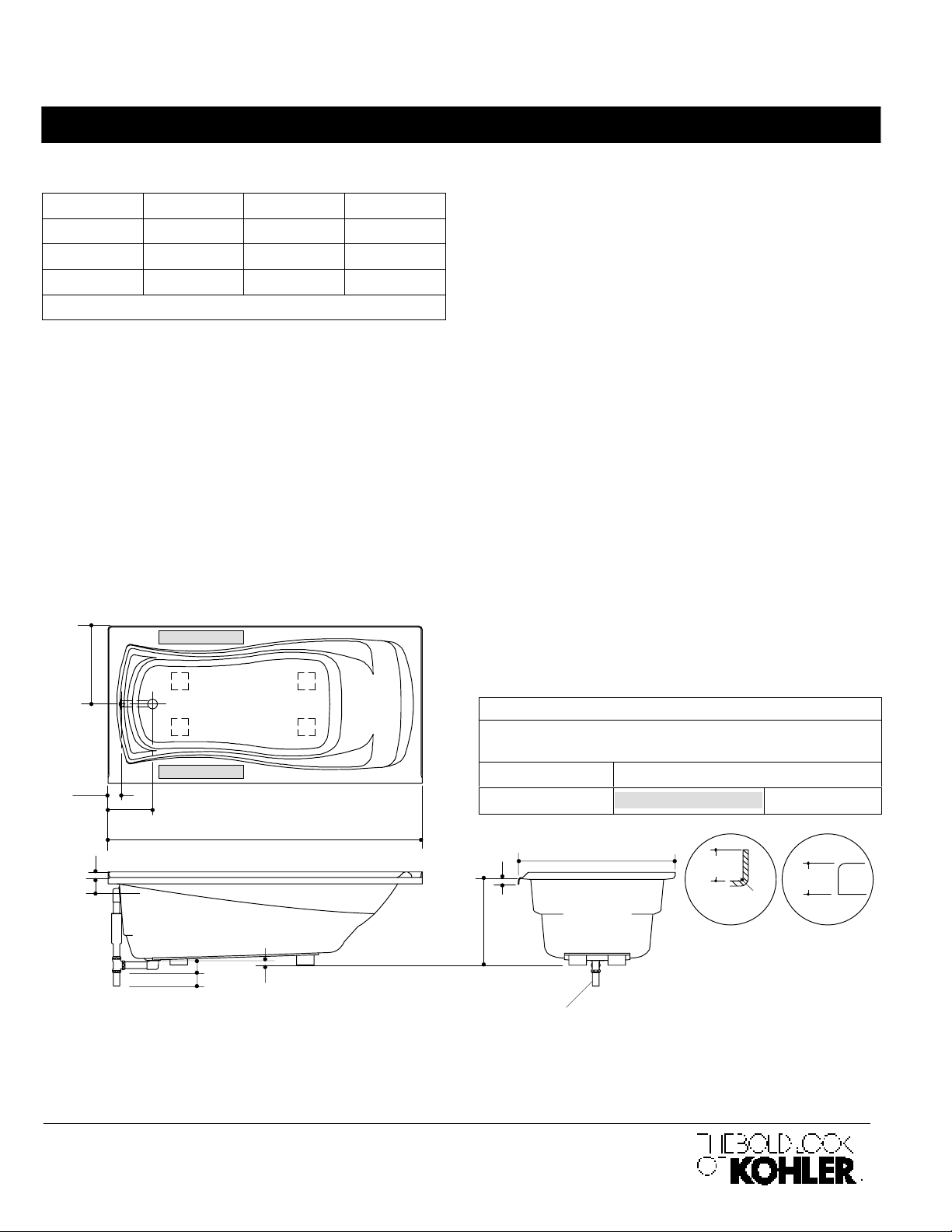

PRODUCT DIAGRAM
36”
1-1/4”
1/2” R.
INTEGRAL
FLANGE
DETAIL
1-1/2”
DROP-IN
RIM
DETAIL
K-1259 Mariposa Bath
Page 2 of 2
114839-4-BA (A)
