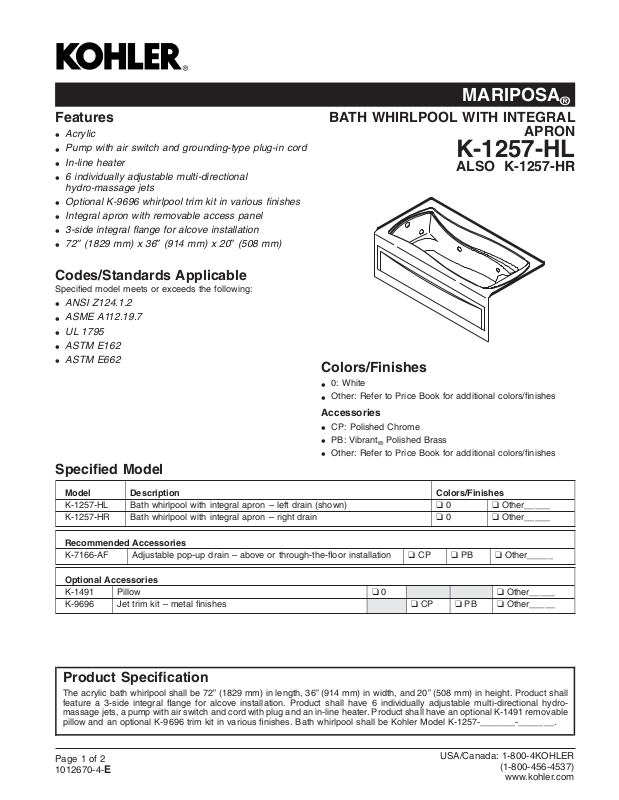

MARIPOSA
®
Features
Acrylic
•
Pump with air switch and grounding-type plug-in cord
•
In-line heater
•
6 individually adjustable multi-directional
•
hydro-massage jets
Optional K-9696 whirlpool trim kit in various finishes
•
Integral apron with removable access panel
•
3-side integral flange for alcove installation
•
72″ (1829 mm) x 36″ (914 mm) x 20″ (508 mm)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ANSI Z124.1.2
•
ASME A112.19.7
•
UL 1795
•
ASTM E162
•
ASTM E662
•
Specified Model
BATH WHIRLPOOL WITH INTEGRAL
APRON
K-1257-HL
ALSO K-1257-HR
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-1257-HL Bath whirlpool with integral apron – left drain (shown) ❑ 0 ❑ Other_____
K-1257-HR Bath whirlpool with integral apron – right drain ❑ 0 ❑ Other_____
Recommended Accessories
K-7166-AF Adjustable pop-up drain – above or through-the-floor installation ❑ CP ❑ PB ❑ Other_____
Optional Accessories
K-1491 Pillow ❑ 0 ❑ Other_____
K-9696 Jet trim kit – metal finishes ❑ CP ❑ PB ❑ Other_____
Product Specification
The acrylic bath whirlpool shall be 72” (1829 mm) in length, 36” (914 mm) in width, and 20” (508 mm) in height. Product shall
feature a 3-side integral flange for alcove installation. Product shall have 6 individually adjustable multi-directional hydromassage jets, a pump with air switch and cord with plug and an in-line heater. Product shall have an optional K-1491 removable
pillow and an optional K-9696 trim kit in various finishes. Bath whirlpool shall be Kohler Model K-1257-_______-_______.
Page 1 of 2
1012670-4-
E
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
MARIPOSA
®
Technical Information
Required Electrical Services
Fixture*:
Bathing well:
Basin area, bottom 50″ (1270 mm) x 24″ (610 mm)
Basin area, top 65″ (1651 mm) x 27″ (686 mm)
Weight 115 lbs (52.2 kg)
To overflow:
Water depth 14″ (356 mm)
Capacity 72 gal (272.5 L)
* Approximate measurements for comparison only.
Pump: V Hz A
1-speed 120 60 7.5
Heater: kW V Hz A
1.5 120 60 12.5
18"
(457 mm)
Two dedicated circuits required, each protected with
Class A Ground-Fault Circuit-Interrupter (GFCI):
Pump/control 120 VAC, 15 A, 60 Hz
Heater 120 VAC, 15 A, 60 Hz
Locate the outlet behind the whirlpool and within 24″
(610 mm) of the pump and heater.
Installation Notes
Install this product according to the installation guide.
Floor support under whirlpool must provide for a minimum of
41 lbs/square foot (201 kg/square meter) loading.
If installing a rim-mount faucet, make sure there is no
interference with drain overflow and circulating system before
drilling any holes. Consult local and national codes for
minimum air gap requirements if installing a spout on the
faucet deck.
1-1/4"
(32 mm)
1-13/16"
(46 mm)
10-1/4"
(260 mm)
72" (1829 mm)
1-1/4"
(32 mm)
3-1/2"
(89 mm)
1"
(25 mm)
3"
(76 mm)
2-7/8"
(73 mm)
Product Diagram
MARIPOSA®BATH WHIRLPOOL WITH INTEGRAL APRON
Page2of2
1012670-4-
E
1/2" R. (13 mm)
Integral Flange Detail
36" (914 mm)
20"
(508 mm)
1-1/2" OD
