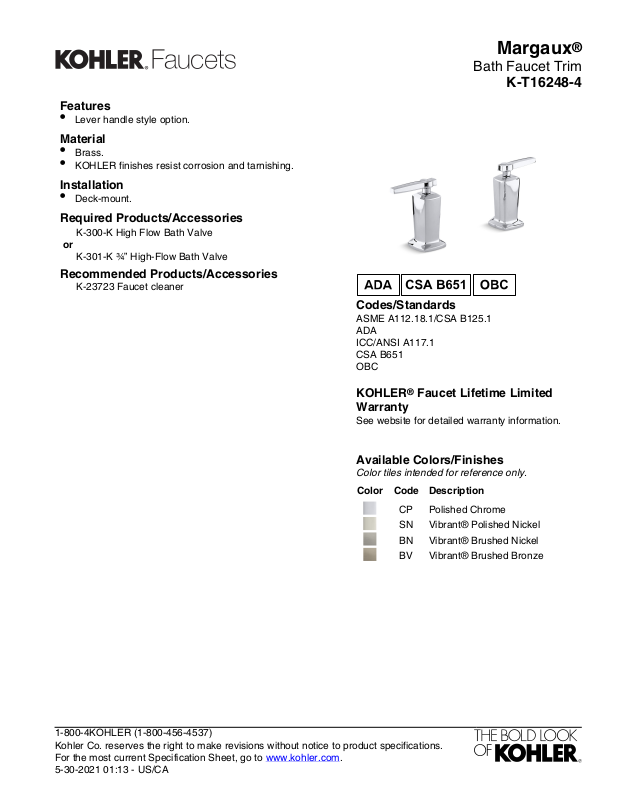

Margaux
Features
•
Lever handle style option.
Material
•
Brass.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Deck-mount.
Required Products/Accessories
K-300-K High Flow Bath Valve
or
K-301-K ¾” High-Flow Bath Valve
Recommended Products/Accessories
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
ADA
ICC/ANSI A117.1
CSA B651
OBC
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
SN Vibrant® Polished Nickel
BN Vibrant® Brushed Nickel
BV Vibrant® Brushed Bronze
®
Bath Faucet Trim
K-T16248-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-30-2021 01:13 - US/CA
Margaux
5/8" OD
8" (203 mm) Min
5-3/16"
(132 mm)
2-1/2"
(64 mm)
3-3/16"
(81 mm)
1/4" (6 mm) 2-1/8" (54 mm)
Max Rim or
Finished Deck
Ø 1-1/8"
Rim or Finished Deck
Mount Installation
3-3/16"
(81 mm)
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
instructions.
ADA, OBC, CSA B651 compliant when
installed to the specific requirements of these
regulations.
®
Bath Faucet Trim
K-T16248-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-30-2021 01:13 - US/CA
