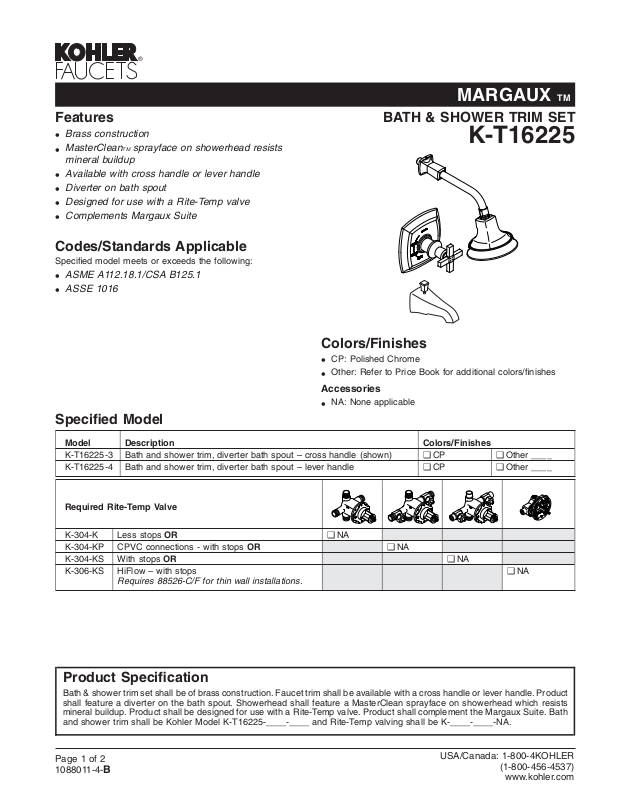

Page 1
MARGAUX TM
Features
Brass construction
•
MasterClean
•
mineral buildup
Available with cross handle or lever handle
•
Diverter on bath spout
•
Designed for use with a Rite-Temp valve
•
Complements Margaux Suite
•
TM sprayface on showerhead resists
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.18.1/CSA B125.1
•
ASSE 1016
•
Specified Model
BATH & SHOWER TRIM SET
K-T16225
Colors/Finishes
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
NA: None applicable
•
Model Description Colors/Finishes
K-T16225-3 Bath and shower trim, diverter bath spout – cross handle (shown) ❑ CP ❑ Other ____
K-T16225-4 Bath and shower trim, diverter bath spout – lever handle ❑ CP ❑ Other ____
Required Rite-Temp Valve
K-304-K Less stops OR ❑ NA
K-304-KP CPVC connections - with stops OR ❑ NA
K-304-KS With stops OR ❑ NA
K-306-KS HiFlow – with stops
Requires 88526-C/F for thin wall installations.
❑ NA
Product Specification
Bath & shower trim set shall be of brass construction. Faucet trim shall be available with a cross handle or lever handle. Product
shall feature a diverter on the bath spout. Showerhead shall feature a MasterClean sprayface on showerhead which resists
mineral buildup. Product shall be designed for use with a Rite-Temp valve. Product shall complement the Margaux Suite. Bath
and shower trim shall be Kohler Model K-T16225-____-____ and Rite-Temp valving shall be K-____-____-NA.
Page 1 of 2
1088011-4-
USA/Canada: 1-800-4KOHLER
B
(1-800-456-4537)
www.kohler.com
Page 2
MARGAUX TM
Installation Notes
Install this product according to the installation guide.
NOTICE: For K-306-KS valve: The thin wall installation kit
(88526-C/F) is required for thin wall (fiberglass or acrylic)
installations.
Avoid cross-flow conditions. Do not install shut-off device on
either valve outlet.
Cap shower outlet if deck-mount spout, diverter, or
handshower is connected to spout outlet.
Install straight pipe or tube drop of 7″ (178 mm) to 18″
(457 mm) with single elbow between the valve and wall-mount
spout.
2-1/8"
(54 mm)
1/2" NPT
7-3/16"
(183 mm)
1/2"-14 NPT
2-7/8"
(73 mm)
10-5/16"
(262 mm)
6" (152 mm)
6-1/2"
(165 mm)
6-1/2"
(165 mm)
10" (254 mm) to
Spout (Bath Only)
Top of Bath
Product Diagram
72" (1829 mm)
78" (1981 mm) to
Floor (Typical)
48" (1219 mm)
to Floor
(Shower Only)
5-1/2"
(140 mm)
3-9/16"
(90 mm)
Cross
4"
(102 mm)
Lever
MARGAUX TM BATH & SHOWER TRIM SET
Page2of2
1088011-4-
B
