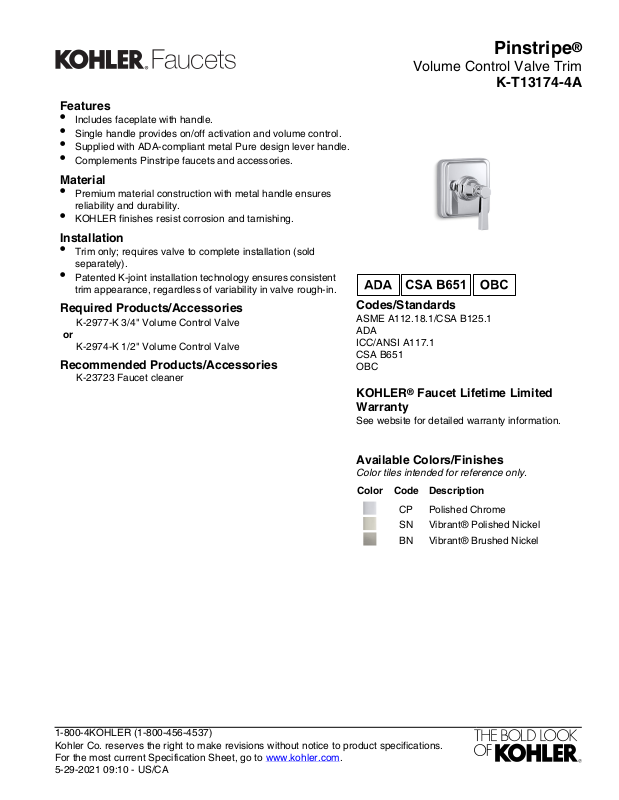

Page 1
Pinstripe
Features
•
Includes faceplate with handle.
•
Single handle provides on/off activation and volume control.
•
Supplied with ADA-compliant metal Pure design lever handle.
•
Complements Pinstripe faucets and accessories.
Material
•
Premium material construction with metal handle ensures
reliability and durability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Trim only; requires valve to complete installation (sold
separately).
•
Patented K-joint installation technology ensures consistent
trim appearance, regardless of variability in valve rough-in.
Required Products/Accessories
K-2977-K 3/4" Volume Control Valve
or
K-2974-K 1/2" Volume Control Valve
Recommended Products/Accessories
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
ADA
ICC/ANSI A117.1
CSA B651
OBC
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
SN Vibrant® Polished Nickel
BN Vibrant® Brushed Nickel
®
Volume Control Valve Trim
K-T13174-4A
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 09:10 - US/CA
Page 2
Pinstripe
4-1/2" (114 mm)
3"
(76 mm)
3-7/8"
(98 mm)
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
instructions.
ADA, OBC, CSA B651 compliant when
installed to the specific requirements of these
regulations.
®
Volume Control Valve Trim
K-T13174-4A
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 09:10 - US/CA
