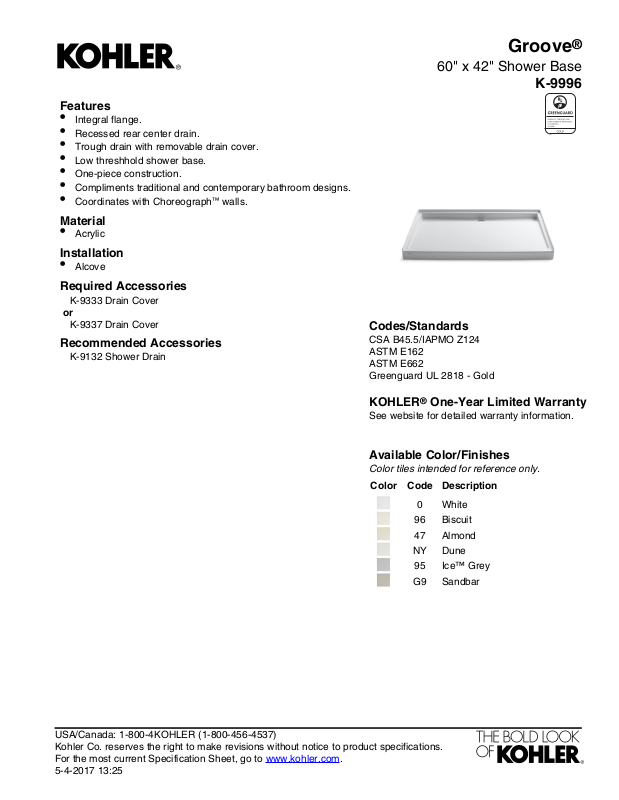

Features
•
Integral flange.
•
Recessed rear center drain.
•
Trough drain with removable drain cover.
•
Low threshhold shower base.
•
One-piece construction.
•
Compliments traditional and contemporary bathroom designs.
•
Coordinates with Choreograph™ walls.
Material
•
Acrylic
Installation
•
Alcove
Required Accessories
K-9333 Drain Cover
or
K-9337 Drain Cover
Recommended Accessories
K-9132 Shower Drain
60" x 42" Shower Base
Codes/Standards
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
Greenguard UL 2818 - Gold
Groove
K-9996
®
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
Ice™ Grey95
SandbarG9
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-4-2017 13:25
Flange Detail
Groove
®
60" x 42" Shower Base
K-9996
Technical Information
All product dimensions are nominal.
3-Wall AlcoveInstallation:
Center rearDrain location:
3-3/8" (86 mm)Drain hole diameter:
72 lbs (32.7 kg)Weight:
20 lbs/ft² (97.6 kg/m²)Minimum floor load:
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
Shimming may be required to level the fixture.
Shimming may be required between the stud
frame and the fixture.
Stud opening tolerance is + 1/4" (6 mm), - 0" (0
mm).
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-4-2017 13:25
