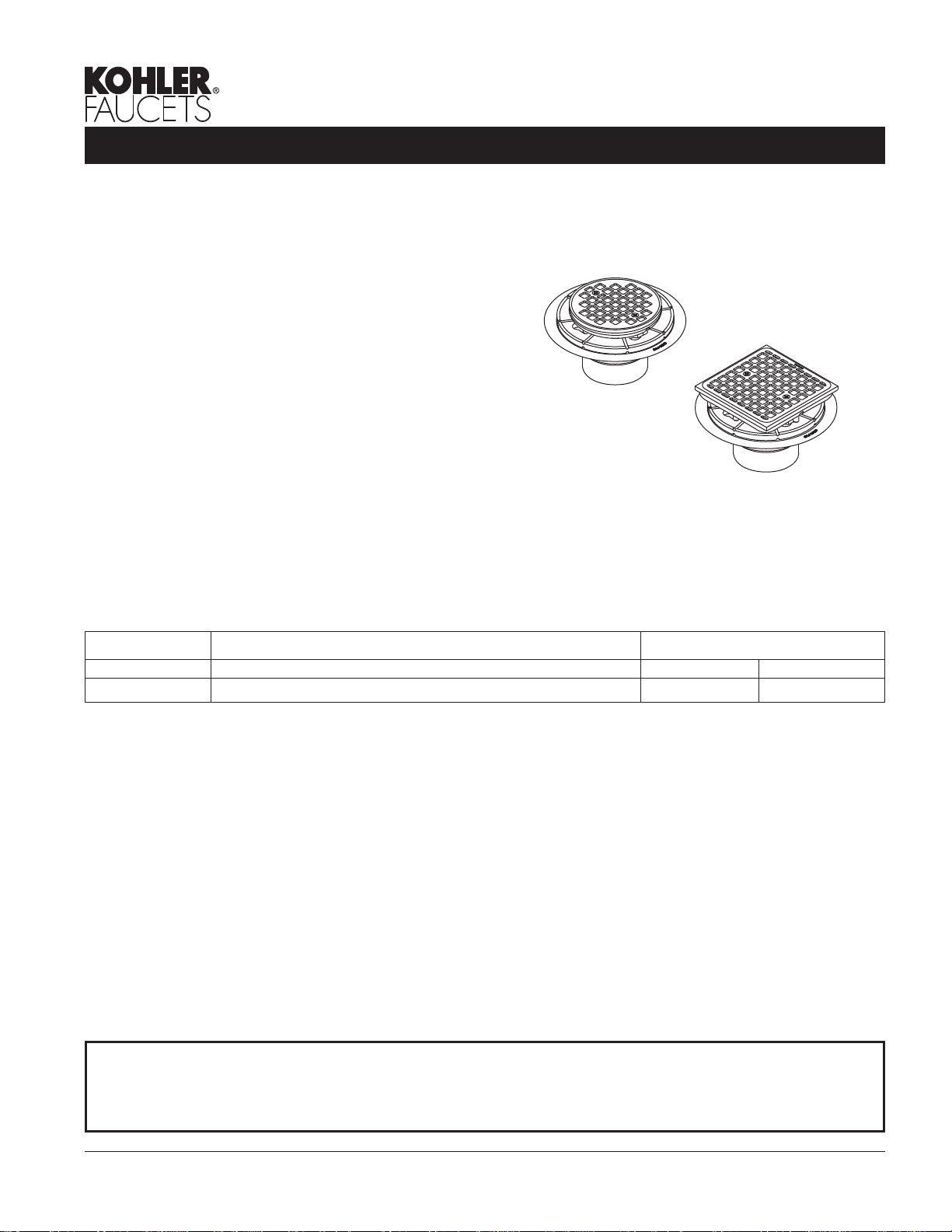

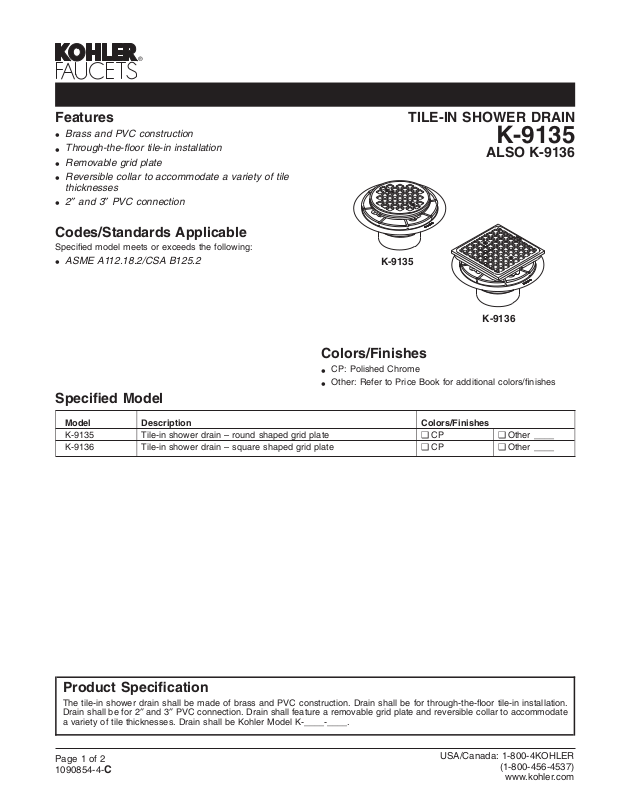

Features
Brass and PVC construction
•
Through-the-floor tile-in installation
•
Removable grid plate
•
Reversible collar to accommodate a variety of tile
•
thicknesses
2″ and 3″ PVC connection
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.18.2/CSA B125.2
•
Specified Model
TILE-IN SHOWER DRAIN
K-9135
ALSO K-9136
K-9135
K-9136
Colors/Finishes
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-9135 Tile-in shower drain – round shaped grid plate ❑ CP ❑ Other ____
K-9136 Tile-in shower drain – square shaped grid plate ❑ CP ❑ Other ____
Product Specification
The tile-in shower drain shall be made of brass and PVC construction. Drain shall be for through-the-floor tile-in installation.
Drain shall be for 2″ and 3″ PVC connection. Drain shall feature a removable grid plate and reversible collar to accommodate
a variety of tile thicknesses. Drain shall be Kohler Model K-____-____.
Page 1 of 2
1090854-4-
USA/Canada: 1-800-4KOHLER
C
(1-800-456-4537)
www.kohler.com
Installation Notes
Install this product according to the installation guide.
Ø 6-1/2" (165 mm)
5-3/8" (137 mm)
4-1/4"
(108 mm)
Ø 2-3/8"
(60 mm)
Ø 3"
(76 mm)
K-9135 K-9136
Collar with Threads Facing Down
1-1/2" (38 mm) Min
2-9/16" (65 mm) Max
4-3/16"
(106 mm)
4-3/16"
(106 mm)
2-1/4" (57 mm) Min
3-3/8" (86 mm) Max
Ø 6-1/2" (165 mm)
5-3/8" (137 mm)
4-9/16"
(116 mm)
Ø 2-3/8"
(60 mm)
Ø 3"
(76 mm)
Collar with Threads Facing Down
1-3/8" (35 mm) Min
2-7/16" (62 mm) Max
4-1/8"
(105 mm)
4-1/8"
(105 mm)
2-1/8" (54 mm) Min
3-1/4" (83 mm) Max
Collar with Threads Facing Up Collar with Threads Facing Up

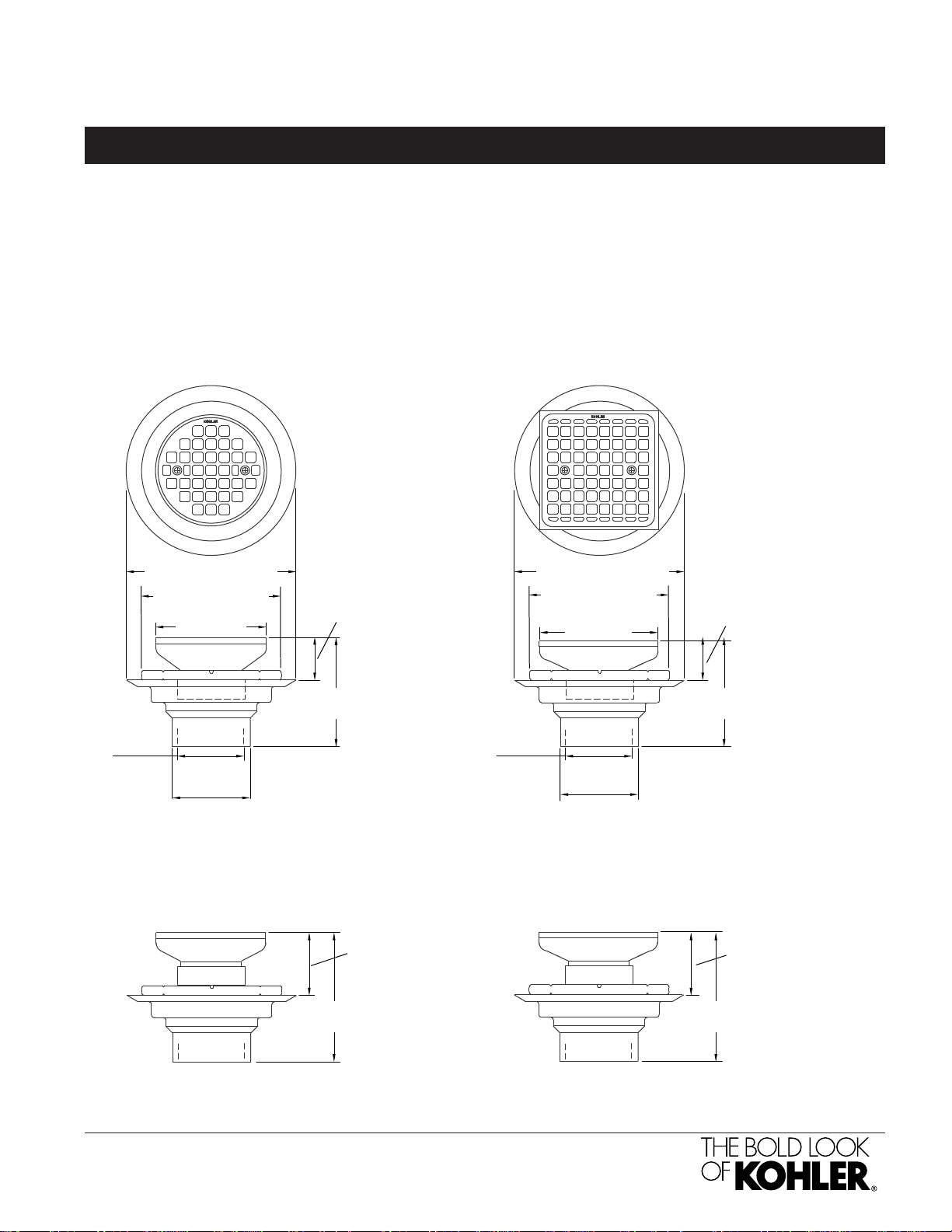

Product Diagram
TILE-IN SHOWER DRAIN
Page2of2
1090854-4-
C
