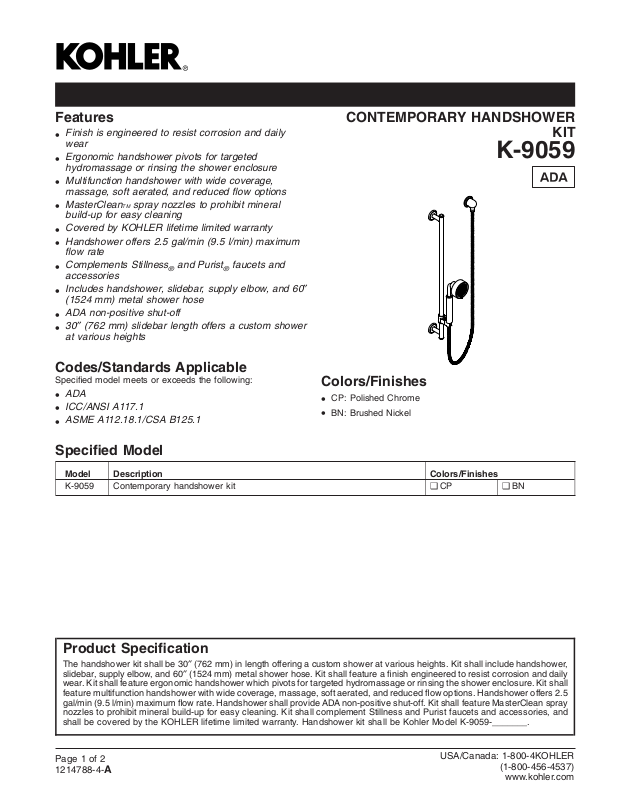

Features
Finish is engineered to resist corrosion and daily
•
wear
Ergonomic handshower pivots for targeted
•
hydromassage or rinsing the shower enclosure
Multifunction handshower with wide coverage,
•
massage, soft aerated, and reduced flow options
MasterClean
•
build-up for easy cleaning
Covered by KOHLER lifetime limited warranty
•
Handshower offers 2.5 gal/min (9.5 l/min) maximum
•
flow rate
Complements Stillness
•
accessories
Includes handshower, slidebar, supply elbow, and 60″
•
(1524 mm) metal shower hose
ADA non-positive shut-off
•
30″ (762 mm) slidebar length offers a custom shower
•
at various heights
TM spray nozzles to prohibit mineral
and Purist®faucets and
®
Codes/Standards Applicable
Specified model meets or exceeds the following:
ADA
•
ICC/ANSI A117.1
•
ASME A112.18.1/CSA B125.1
•
CONTEMPORARY HANDSHOWER
K-9059
Colors/Finishes
CP: Polished Chrome
•
BN: Brushed Nickel
•
KIT
Specified Model
Model Description Colors/Finishes
K-9059 Contemporary handshower kit ❑ CP ❑ BN
Product Specification
The handshower kit shall be 30″ (762 mm) in length offering a custom shower at various heights. Kit shall include handshower,
slidebar, supply elbow, and 60″ (1524 mm) metal shower hose. Kit shall feature a finish engineered to resist corrosion and daily
wear. Kit shall feature ergonomic handshower which pivots for targeted hydromassage or rinsing the shower enclosure. Kit shall
feature multifunction handshower with wide coverage, massage, soft aerated, and reduced flow options. Handshower offers 2.5
gal/min (9.5 l/min) maximum flow rate. Handshower shall provide ADA non-positive shut-off. Kit shall feature MasterClean spray
nozzles to prohibit mineral build-up for easy cleaning. Kit shall complement Stillness and Purist faucets and accessories, and
shall be covered by the KOHLER lifetime limited warranty. Handshower kit shall be Kohler Model K-9059-_______.
Page 1 of 2
1214788-4-
USA/Canada: 1-800-4KOHLER
A
(1-800-456-4537)
www.kohler.com
Installation Notes
Install this product according to the installation guide.
IMPORTANT! The slidebar must be mounted to stud framing
at both the top and bottom mounting locations. Do not use or
depend on plastic wall anchors to attach the slidebar.
Plumbing codes may require an atmospheric vacuum breaker
(such as the KOHLER K-9660) be installed in-line to
handshowers. Consult with local plumbing codes.
Reduced flow spray option provides non-positive shut-off
required by 2010 ADA Standards for Accessible Design,
Section 607.6 Spray Unit and Water (baths) and Section
608.6 Spray Unit and Water (Showers).
30"
(762 mm)
14" (356 mm) Max
28"
(712 mm)
3"
(76 mm)
Ø 2-1/2"
(64 mm)
60"
(1524 mm)
Overall
Length
Ø 2-1/4" (57 mm)
Ø 3-5/8"
(92 mm)
Ø 2-1/4"
(57 mm)
4-9/16"
(116 mm)
11-7/16"
(291 mm)
Ø 3-5/8"
(92 mm)
CONTEMPORARY HANDSHOWER KIT
Page2of2
1214788-4-
A
