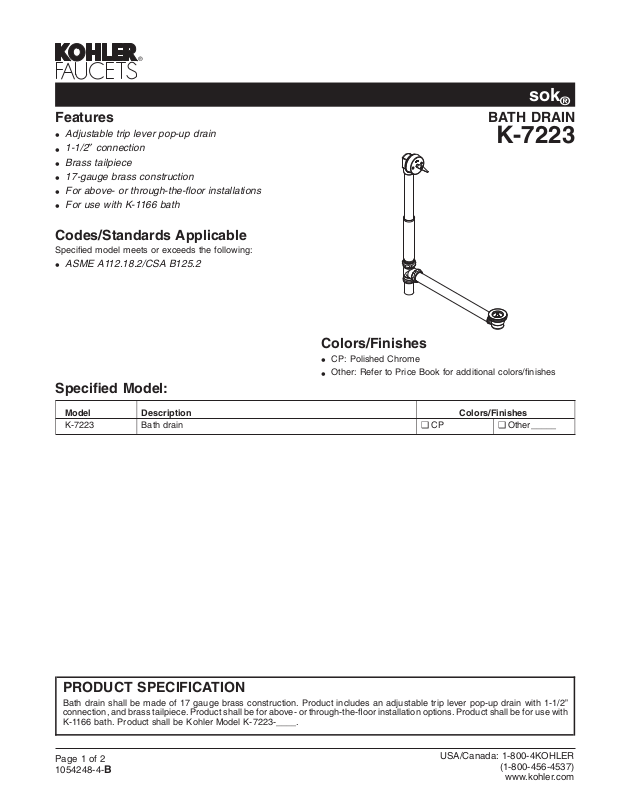

Page 1
sok
®
Features
Adjustable trip lever pop-up drain
•
1-1/2″ connection
•
Brass tailpiece
•
17-gauge brass construction
•
For above- or through-the-floor installations
•
For use with K-1166 bath
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.18.2/CSA B125.2
•
Specified Model:
BATH DRAIN
K-7223
Colors/Finishes
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-7223 Bath drain ❑ CP ❑ Other_____
PRODUCT SPECIFICATION
Bath drain shall be made of 17 gauge brass construction. Product includes an adjustable trip lever pop-up drain with 1-1/2”
connection, and brass tailpiece. Product shall be for above- or through-the-floor installation options. Product shall be for use with
K-1166 bath. Product shall be Kohler Model K-7223-____.
Page 1 of 2
1054248-4-
USA/Canada: 1-800-4KOHLER
B
(1-800-456-4537)
www.kohler.com
Page 2
sok
®
Installation Notes
Install this product according to the installation guide.
21-3/16"
(538 mm)
sok®BATH DRAIN
Page2of2
1054248-4-
B
17-1/8" (435 mm)
19-7/8" (505 mm)
Product Diagram
