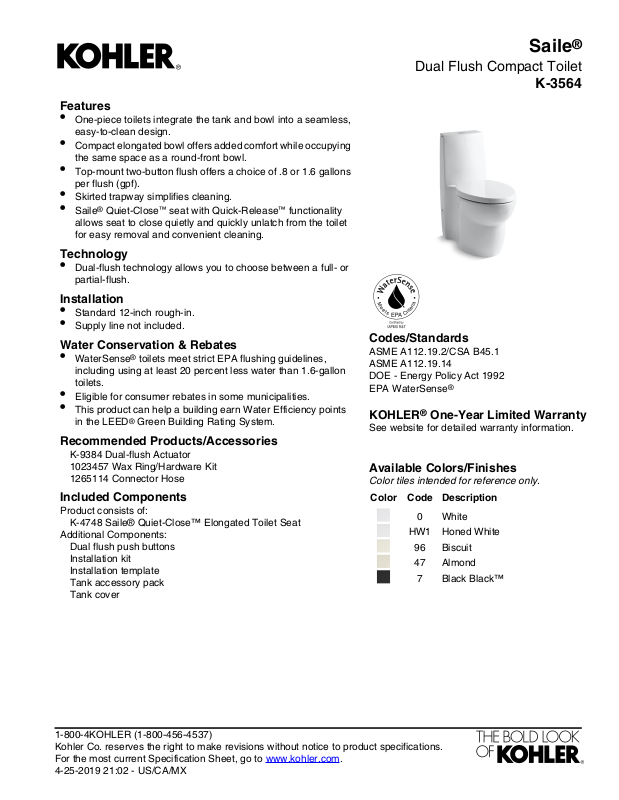

Features
•
One-piece toilets integrate the tank and bowl into a seamless,
easy-to-clean design.
•
Compact elongated bowl offers added comfort while occupying
the same space as a round-front bowl.
•
Top-mount two-button flush offers a choice of .8 or 1.6 gallons
per flush (gpf).
•
Skirted trapway simplifies cleaning.
•
Saile® Quiet-Close™ seat with Quick-Release™ functionality
allows seat to close quietly and quickly unlatch from the toilet
for easy removal and convenient cleaning.
Technology
•
Dual-flush technology allows you to choose between a full- or
partial-flush.
Installation
•
Standard 12-inch rough-in.
•
Supply line not included.
Water Conservation & Rebates
•
WaterSense® toilets meet strict EPA flushing guidelines,
including using at least 20 percent less water than 1.6-gallon
toilets.
•
Eligible for consumer rebates in some municipalities.
•
This product can help a building earn Water Efficiency points
in the LEED® Green Building Rating System.
Recommended Products/Accessories
K-9384 Dual-flush Actuator
1023457 Wax Ring/Hardware Kit
1265114 Connector Hose
Included Components
Product consists of:
K-4748 Saile® Quiet-Close™ Elongated Toilet Seat
Additional Components:
Dual flush push buttons
Installation kit
Installation template
Tank accessory pack
Tank cover
Saile
®
Dual Flush Compact Toilet
K-3564
Codes/Standards
ASME A112.19.2/CSA B45.1
ASME A112.19.14
DOE - Energy Policy Act 1992
EPA WaterSense
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
®
DescriptionCodeColor
White0
Honed WhiteHW1
Biscuit96
Almond47
Black Black™7
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-25-2019 21:02 - US/CA/MX
Front of Bowl
Saile
®
Dual Flush Compact Toilet
K-3564
Technical Information
All product dimensions are nominal.
One-piece, Wall-mountToilet type:
Compact elongatedBowl shape:
Seat hinge type:
Water Consumption
Quick-Release™, Quick-Attach
2-1/8" (54 mm)Trap passageway:
1.6 gpf (6 lpf)Full:
0.8 gpf (3 lpf)Reduced:
4-1/8" x 5-1/8" (105 mm x 130 mm)Water surface size:
12" (305 mm)Rough-in:
5-1/2" (140 mm)Seat-mounting holes:
Notes
Install this product according to the installation
instructions.
For back-to-back toilet installations: Use only a
®
45° double wye fitting.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
4-25-2019 21:02 - US/CA/MX
