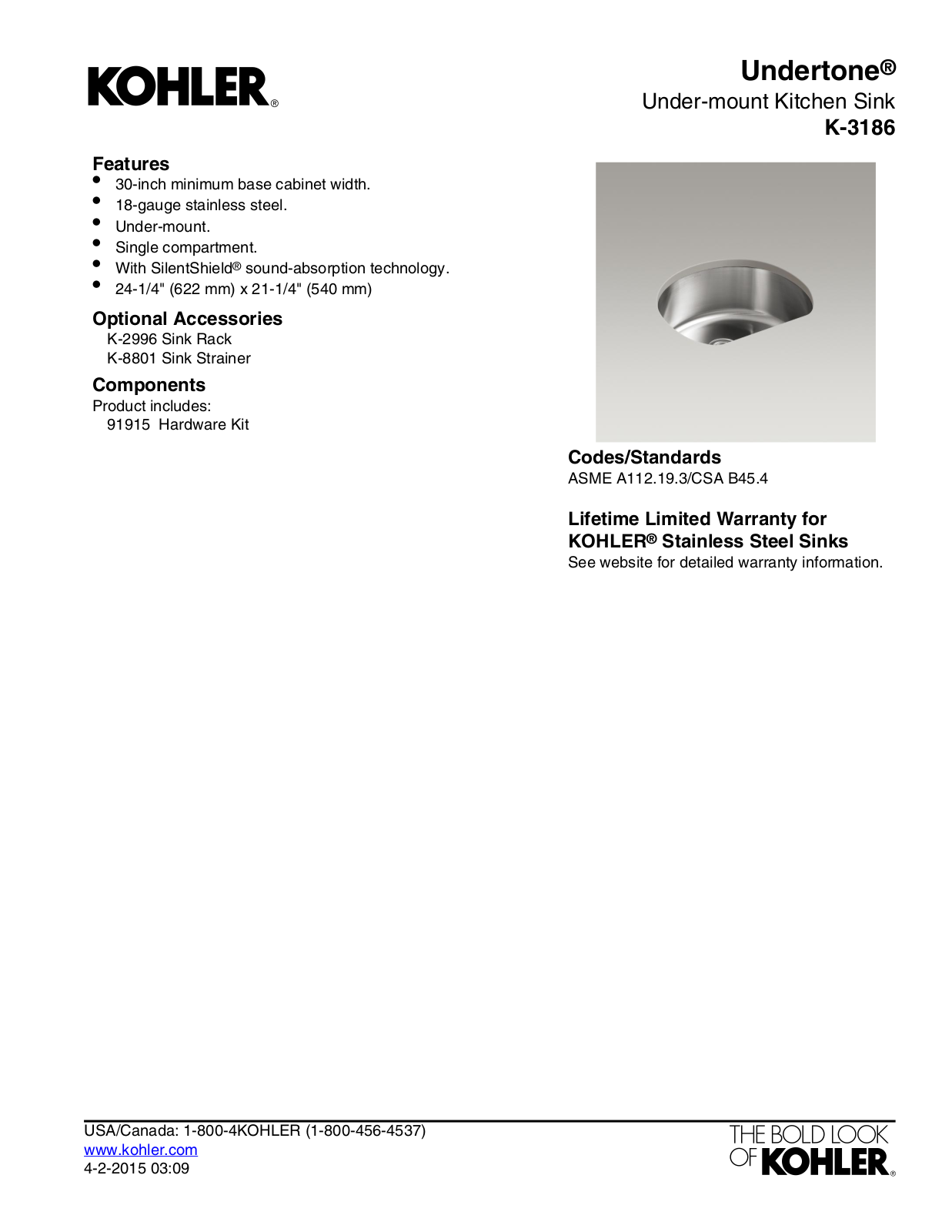

Page 1
Features
•
30-inch minimum base cabinet width.
•
18-gauge stainless steel.
•
Under-mount.
•
Single compartment.
•
With SilentShield® sound-absorption technology.
•
24-1/4" (622 mm) x 21-1/4" (540 mm)
Optional Accessories
K-2996 Sink Rack
K-8801 Sink Strainer
Components
Product includes:
91915 Hardware Kit
Undertone
Under-mount Kitchen Sink
K-3186
Codes/Standards
ASME A112.19.3/CSA B45.4
Lifetime Limited Warranty for
KOHLER® Stainless Steel Sinks
See website for detailed warranty information.
®
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-2-2015 03:09

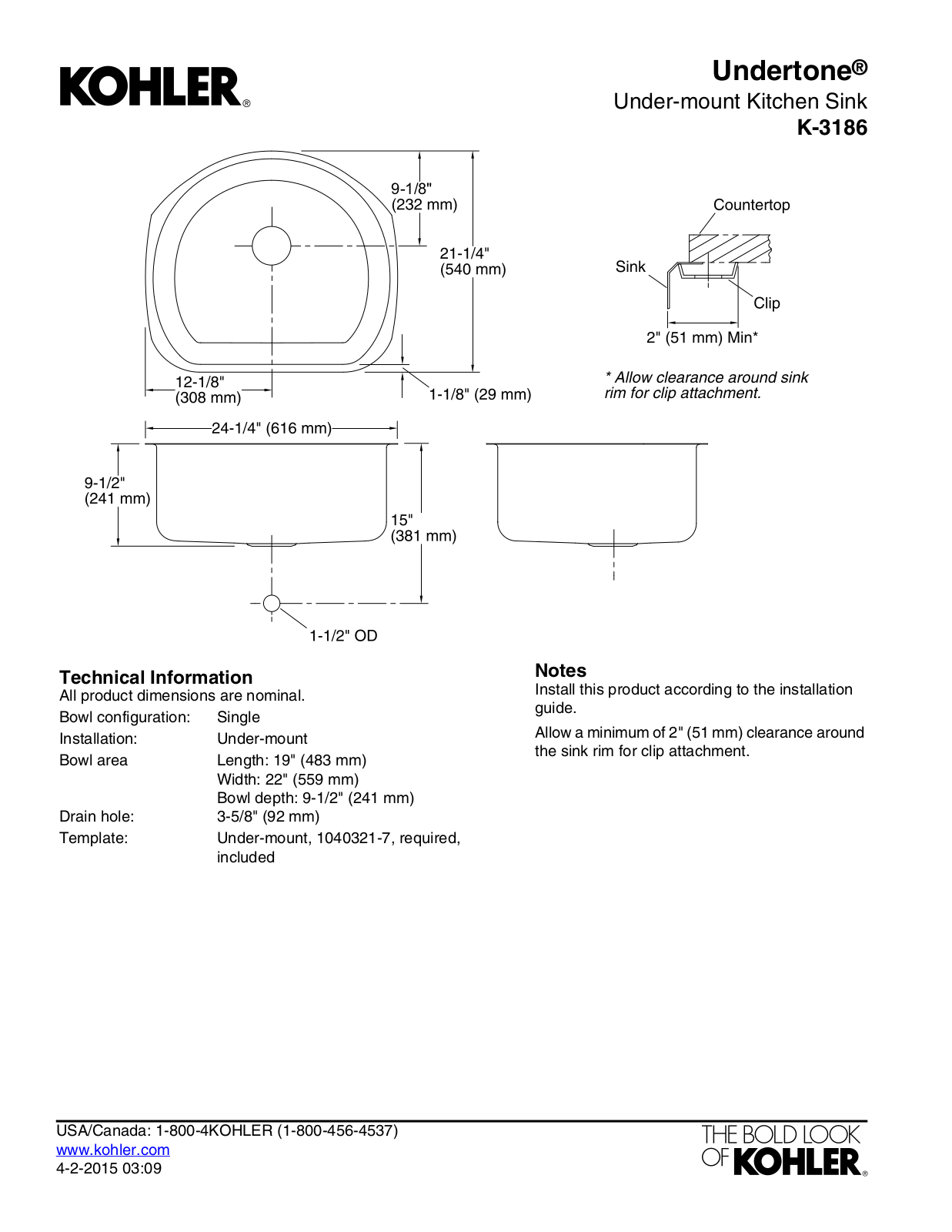

Page 2
9-1/8"
Undertone
®
Under-mount Kitchen Sink
K-3186
Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Under-mountInstallation:
Bowl area
Template:
Length: 19" (483 mm)
Width: 22" (559 mm)
Bowl depth: 9-1/2" (241 mm)
3-5/8" (92 mm)Drain hole:
Under-mount, 1040321-7, required,
included
Notes
Install this product according to the installation
guide.
Allow a minimum of 2" (51 mm) clearance around
the sink rim for clip attachment.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-2-2015 03:09
