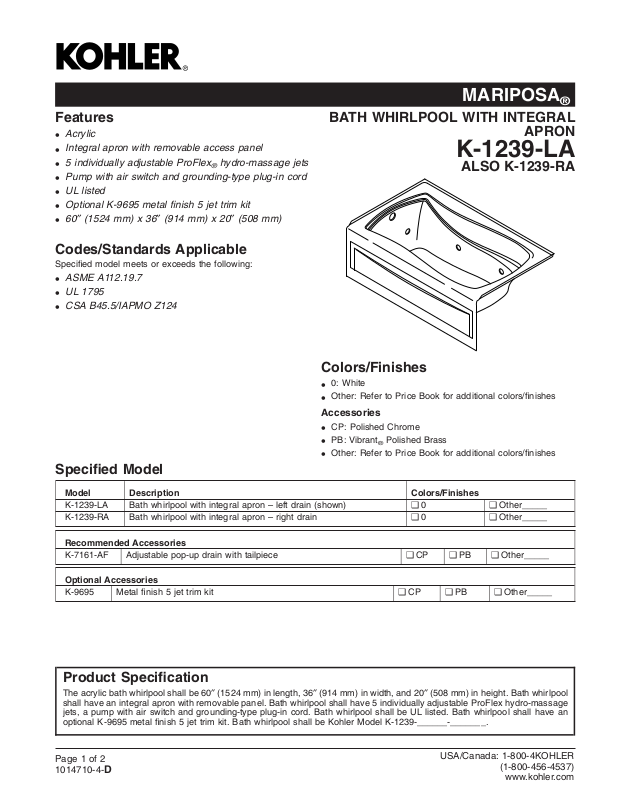

MARIPOSA
®
Features
Acrylic
•
Integral apron with removable access panel
•
5 individually adjustable ProFlex
•
Pump with air switch and grounding-type plug-in cord
•
UL listed
•
Optional K-9695 metal finish 5 jet trim kit
•
60″ (1524 mm) x 36″ (914 mm) x 20″ (508 mm)
•
hydro-massage jets
®
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.19.7
•
UL 1795
•
CSA B45.5/IAPMO Z124
•
Specified Model
BATH WHIRLPOOL WITH INTEGRAL
APRON
K-1239-LA
ALSO K-1239-RA
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-1239-LA Bath whirlpool with integral apron – left drain (shown) ❑ 0 ❑ Other_____
K-1239-RA Bath whirlpool with integral apron – right drain ❑ 0 ❑ Other_____
Recommended Accessories
K-7161-AF Adjustable pop-up drain with tailpiece ❑ CP ❑ PB ❑ Other_____
Optional Accessories
K-9695 Metal finish 5 jet trim kit ❑ CP ❑ PB ❑ Other_____
Product Specification
The acrylic bath whirlpool shall be 60″ (1524 mm) in length, 36″ (914 mm) in width, and 20″ (508 mm) in height. Bath whirlpool
shall have an integral apron with removable panel. Bath whirlpool shall have 5 individually adjustable ProFlex hydro-massage
jets, a pump with air switch and grounding-type plug-in cord. Bath whirlpool shall be UL listed. Bath whirlpool shall have an
optional K-9695 metal finish 5 jet trim kit. Bath whirlpool shall be Kohler Model K-1239-______-_______.
Page 1 of 2
1014710-4-
D
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
MARIPOSA
®
Technical Information
Required Electrical Service
Fixture*:
Basin area:
Bathing well, bottom 46″ (1168 mm) x 24″ (610 mm)
Bathing area, top 54″ (1372 mm) x 27″ (686 mm)
Weight 105 lbs (47.6 kg)
To overflow:
Water depth 14″ (356 mm)
Capacity 63 gal (238.5 L)
* Approximate measurements for comparison only.
Pump: V Hz A
1-speed 120 60 7.5
18"
(457 mm)
Dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI):
Pump/control 120 V, 15 A, 60 Hz
Locate the outlet behind the whirlpool and within 24″
(610 mm) of the pump.
Installation Notes
Install this product according to the installation guide.
Floor support under whirlpool must provide for a minimum of
44 lbs/square foot (214 kg/square meter) loading.
If installing a rim-mount faucet, make sure there is no
interference with the drain overflow before drilling any holes.
Consult local and national codes for minimum air gap
requirements if installing a spout on the faucet deck.
No change in measurements if connected with drain
illustrated. (K-7161-AF or K-7161M-AF)
Recommended Faucet Area
1-1/4"
(32 mm)
1-11/16"
(43 mm)
3-1/2"
(89 mm)
8-11/16"
(221 mm)
3"
(76 mm)
60" (1524 mm)
2-7/8"
(73 mm)
1" (25 mm)
Product Diagram
MARIPOSA®BATH WHIRLPOOL WITH INTEGRAL APRON
Page2of2
1014710-4-
D
1/2" (13 mm)
R. Max
Integral
Flange Detail
36" (914 mm)
20"
(508 mm)
1-1/2" OD
