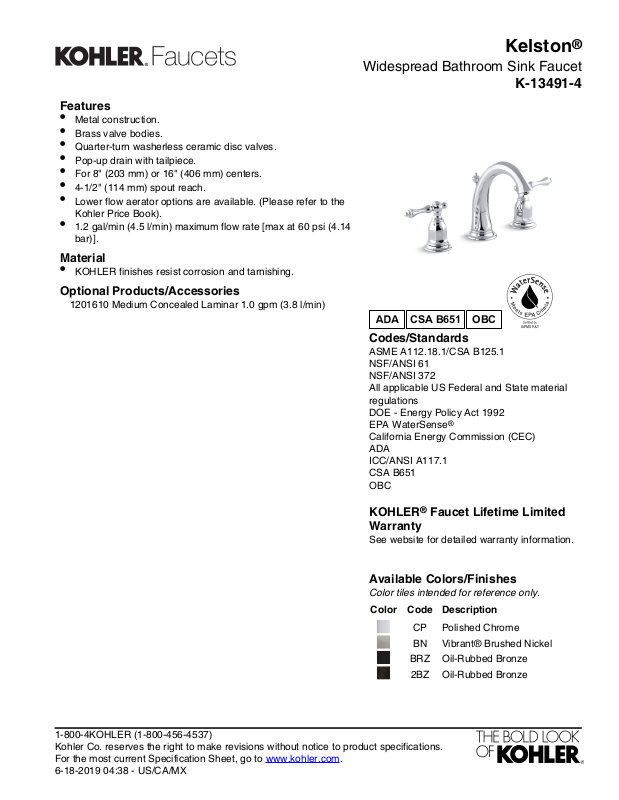

Page 1
Features
CSA B651
OBC
•
Metal construction.
•
Brass valve bodies.
•
Quarter-turn washerless ceramic disc valves.
•
Pop-up drain with tailpiece.
•
For 8" (203 mm) or 16" (406 mm) centers.
•
4-1/2" (114 mm) spout reach.
•
Lower flow aerator options are available. (Please refer to the
Kohler Price Book).
•
1.2 gal/min (4.5 l/min) maximum flow rate [max at 60 psi (4.14
bar)].
Material
•
KOHLER finishes resist corrosion and tarnishing.
Optional Products/Accessories
1201610 Medium Concealed Laminar 1.0 gpm (3.8 l/min)
Kelston
®
Widespread Bathroom Sink Faucet
K-13491-4
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
EPA WaterSense
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
CSA B651
OBC
®
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Brushed NickelBN
Oil-Rubbed BronzeBRZ
Oil-Rubbed Bronze2BZ
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-18-2019 04:38 - US/CA/MX
Page 2
Ø 2" (51 mm)
Kelston
®
Widespread Bathroom Sink Faucet
K-13491-4
Technical Information
All product dimensions are nominal.
Faucet:
included:
Spout:
Notes
Install this product according to the installation
guide.
1.2 gal/min (4.5 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
YesDrain included:
YesDrain tailpiece
4-1/2" (114 mm)Spout reach:
2-3/4" (70 mm)Handle clearance:
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
6-18-2019 04:38 - US/CA/MX
