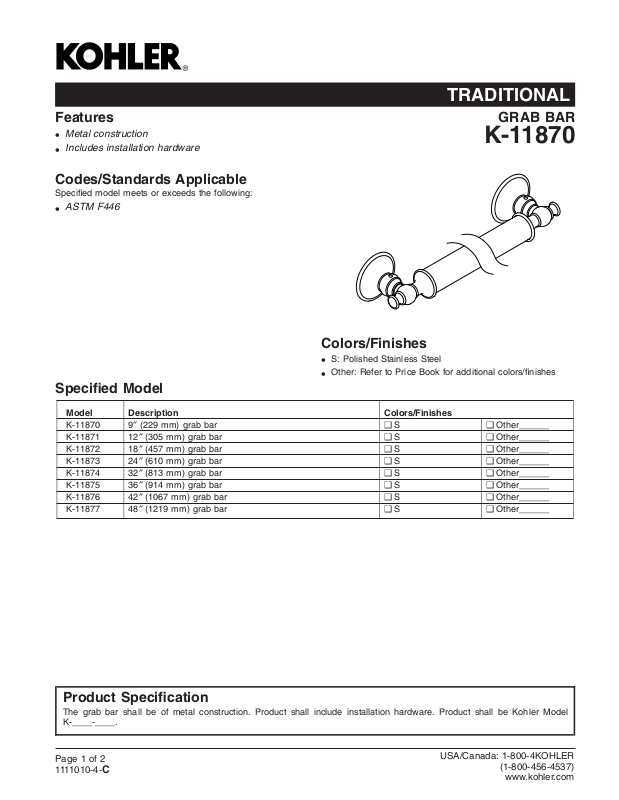

Kohler KOH13649 Specifications

TRADITIONAL

Features

Metal construction

•

Includes installation hardware

•

Codes/Standards Applicable

Specified model meets or exceeds the following:

ASTM F446

•

Specified Model

GRAB BAR

K-11870

Colors/Finishes

S: Polished Stainless Steel

•

Other: Refer to Price Book for additional colors/finishes

•

Model Description Colors/Finishes

K-11870 9″ (229 mm) grab bar ❑ S ❑ Other______
K-11871 12″ (305 mm) grab bar ❑ S ❑ Other______
K-11872 18″ (457 mm) grab bar ❑ S ❑ Other______
K-11873 24″ (610 mm) grab bar ❑ S ❑ Other______
K-11874 32″ (813 mm) grab bar ❑ S ❑ Other______
K-11875 36″ (914 mm) grab bar ❑ S ❑ Other______
K-11876 42″ (1067 mm) grab bar ❑ S ❑ Other______
K-11877 48″ (1219 mm) grab bar ❑ S ❑ Other______

Product Specification

The grab bar shall be of metal construction. Product shall include installation hardware. Product shall be Kohler Model
K-____-____.

Page 1 of 2
1111010-4-

USA/Canada: 1-800-4KOHLER

C

(1-800-456-4537)

www.kohler.com

TRADITIONAL

Installation Notes

WARNING: Risk of personal injury. The wall

plates on the grab bar must be mounted to a brace
between the wall studs. This will ensure that the
weight of the user is adequately supported.

Install this product according to the installation guide.

K-11870
K-11871
K-11872
K-11873
K-11874
K-11875
K-11876
K-11877

Ø 2-9/16"
(65 mm)

= 11-9/16" (294 mm)
= 14-9/16" (370 mm)
= 20-9/16" (522 mm)
= 26-9/16" (675 mm)
= 34-9/16" (878 mm)
= 38-9/16" (979 mm)
= 44-9/16" (1132 mm)
= 50-9/16" (1284 mm)

1-1/2"
(38 mm)

Ø 1-1/4"
(32 mm)

2-7/8"
(73 mm)

K-11870
K-11871
K-11872
K-11873
K-11874
K-11875
K-11876
K-11877

= 9" (229 mm)
= 12" (305 mm)
= 18" (457 mm)
= 24" (610 mm)
= 32" (813 mm)
= 36" (914 mm)
= 42" (1067 mm)
= 48" (1219 mm)

TRADITIONAL GRAB BAR
Page2of2

1111010-4-

C

Product Diagram
