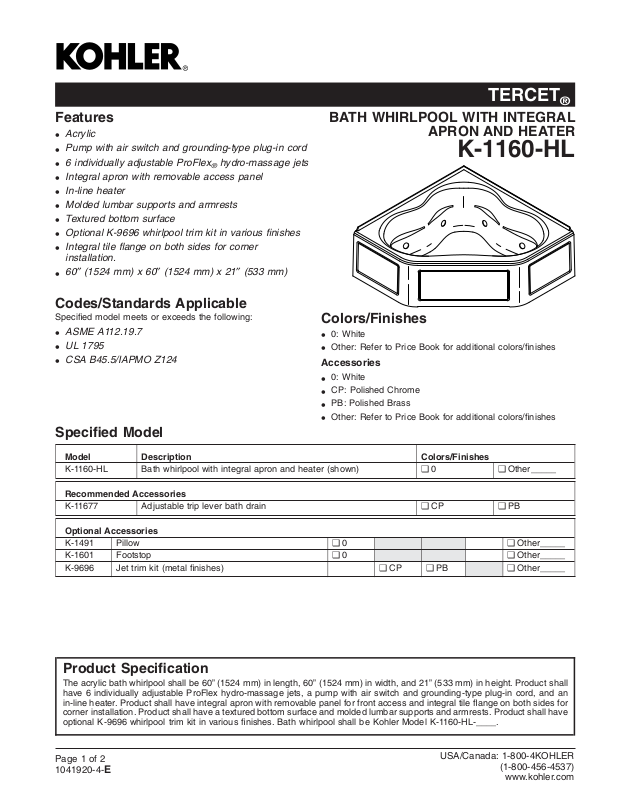

TERCET
®
Features
Acrylic
•
Pump with air switch and grounding-type plug-in cord
•
6 individually adjustable ProFlex
•
Integral apron with removable access panel
•
In-line heater
•
Molded lumbar supports and armrests
•
Textured bottom surface
•
Optional K-9696 whirlpool trim kit in various finishes
•
Integral tile flange on both sides for corner
•
installation.
60″ (1524 mm) x 60″ (1524 mm) x 21″ (533 mm)
•
hydro-massage jets
®
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.19.7
•
UL 1795
•
CSA B45.5/IAPMO Z124
•
Specified Model
BATH WHIRLPOOL WITH INTEGRAL
APRON AND HEATER
K-1160-HL
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
0: White
•
CP: Polished Chrome
•
PB: Polished Brass
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-1160-HL Bath whirlpool with integral apron and heater (shown) ❑ 0 ❑ Other_____
Recommended Accessories
K-11677 Adjustable trip lever bath drain ❑ CP ❑ PB
Optional Accessories
K-1491 Pillow ❑ 0 ❑ Other_____
K-1601 Footstop ❑ 0 ❑ Other_____
K-9696 Jet trim kit (metal finishes) ❑ CP ❑ PB ❑ Other_____
Product Specification
The acrylic bath whirlpool shall be 60” (1524 mm) in length, 60” (1524 mm) in width, and 21” (533 mm) in height. Product shall
have 6 individually adjustable ProFlex hydro-massage jets, a pump with air switch and grounding-type plug-in cord, and an
in-line heater. Product shall have integral apron with removable panel for front access and integral tile flange on both sides for
corner installation. Product shall have a textured bottom surface and molded lumbar supports and armrests. Product shall have
optional K-9696 whirlpool trim kit in various finishes. Bath whirlpool shall be Kohler Model K-1160-HL-____.
Page 1 of 2
1041920-4-
USA/Canada: 1-800-4KOHLER
E
(1-800-456-4537)
www.kohler.com
TERCET
®
Technical Information
Required Electrical Service
Fixture*:
Basin area:
Bathing well 52” (1321 mm) x 38-3/4” (984 mm)
Top area 61” (1549 mm) x 46-1/4” (1175 mm)
Weight 151 lbs (68.5 kg)
To overflow:
Water depth 15” (381 mm)
Capacity 96 gal (363.6 L)
* Approximate measurements for comparison only.
Pump: V Hz A
1-speed 120 60 7.5
Heater: kW V Hz A
1.5 120 60 12.5
63"
(1600 mm)
35"
(889 mm)
Two dedicated circuit required, each protected with Class
A Ground-Fault Circuit-Interrupter (GFCI):
Pump/control 120 V, 15 A, 60 Hz
Heater 120 V, 15 A, 60 Hz
Locate the outlets onto the wooden stud provided, as
illustrated below.
Installation Notes
Install this product according to the installation guide.
Floor support under whirlpool must provide for a minimum of
39 lbs/square foot (188 kg/square meter) loading.
No change in measurements if connected with
drain illustrated. (K-11677 or K-11677M)
Recommended faucet area
29"
(737 mm)
4-7/8"
(124 mm)
43-3/4"
(1111 mm)
2-7/8"
(73 mm)
Wooden Stud
(Provided)
Ø 1-1/2" OD
60"
(1524 mm)
21"
(533 mm)
35"
(889 mm)
19-1/2"
(495 mm)
29"
(737 mm)
60" (1524 mm)
1/2" (13 mm)
13-1/8"
(333 mm)
Pump/Control Access
Product Diagram
TERCET®BATH WHIRLPOOL WITH INTEGRAL APRON AND HEATER
Page2of2
1041920-4-
E
3"
(76 mm)
1-1/4"
(32 mm)
Tile Flange
Detail
2-7/8"
(73 mm)
