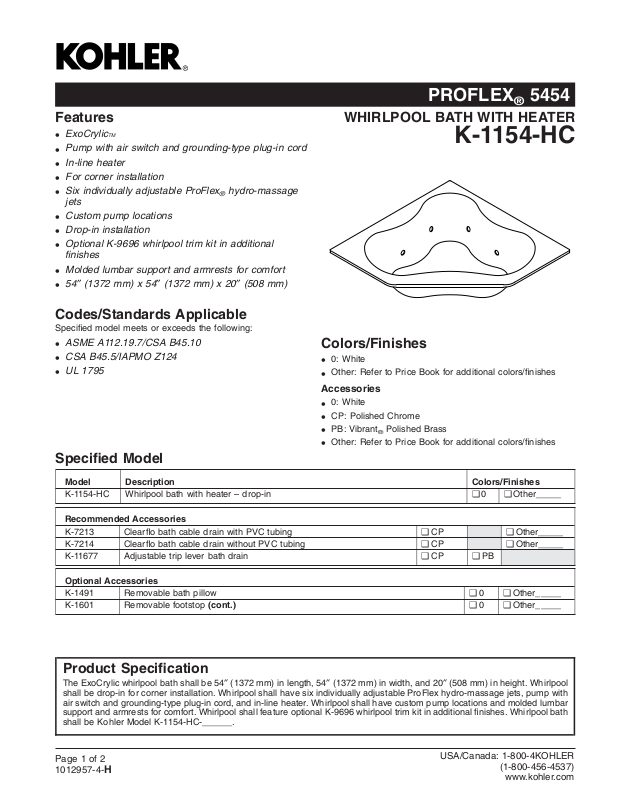

Page 1
PROFLEX®5454
Features
ExoCrylic
•
Pump with air switch and grounding-type plug-in cord
•
In-line heater
•
For corner installation
•
Six individually adjustable ProFlex
•
jets
Custom pump locations
•
Drop-in installation
•
Optional K-9696 whirlpool trim kit in additional
•
finishes
Molded lumbar support and armrests for comfort
•
54″ (1372 mm) x 54″ (1372 mm) x 20″ (508 mm)
•
TM
hydro-massage
®
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.19.7/CSA B45.10
•
CSA B45.5/IAPMO Z124
•
UL 1795
•
Specified Model
WHIRLPOOL BATH WITH HEATER
K-1154-HC
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
0: White
•
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-1154-HC Whirlpool bath with heater – drop-in ❑ 0 ❑ Other_____
Recommended Accessories
K-7213 Clearflo bath cable drain with PVC tubing ❑ CP ❑ Other_____
K-7214 Clearflo bath cable drain without PVC tubing ❑ CP ❑ Other_____
K-11677 Adjustable trip lever bath drain ❑ CP ❑ PB
Optional Accessories
K-1491 Removable bath pillow ❑ 0 ❑ Other_____
K-1601 Removable footstop (cont.) ❑ 0 ❑ Other_____
Product Specification
The ExoCrylic whirlpool bath shall be 54″ (1372 mm) in length, 54″ (1372 mm) in width, and 20″ (508 mm) in height. Whirlpool
shall be drop-in for corner installation. Whirlpool shall have six individually adjustable ProFlex hydro-massage jets, pump with
air switch and grounding-type plug-in cord, and in-line heater. Whirlpool shall have custom pump locations and molded lumbar
support and armrests for comfort. Whirlpool shall feature optional K-9696 whirlpool trim kit in additional finishes. Whirlpool bath
shall be Kohler Model K-1154-HC-______.
Page 1 of 2
1012957-4-
H
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
PROFLEX®5454
(cont.) Optional Accessories
K-9696 Jet trim kit (metal finishes) ❑ CP ❑ PB ❑ Other_____
Technical Information
Fixture*:
Bathing well:
Basin area, bottom 44″ (1118mm)x36″ (914 mm)
Basin area, top 56″ (1422 mm) x 43″ (1092 mm)
Weight 70 lbs (31.8 kg)
To overflow:
Water depth 15″ (381 mm)
Capacity 76 gal (287.7 L)
* Approximate measurements for comparison only.
Pump: V Hz A
1-speed 120 60 7.5
Heater: kW V Hz A
1.5 120 60 12.5
56-1/2"
(1435 mm)
30-3/4" (781 mm)
Required Electrical Service
Two dedicated circuits required, each protected with
Class A Ground-Fault Circuit-Interrupter (GFCI):
Pump/control 120 V, 15 A, 60 Hz
Heater 120 V, 15 A, 60 Hz
Locate the outlets behind the whirlpool and within 24″
(610 mm) of the pump.
Installation Notes
Install this product according to the installation guide.
Pump must be relocated to custom position at the time of
installation. Provide adequate clearance.
Floor support under whirlpool must provide for a minimum of
36 lbs/square foot (176 kg/square meter) loading.
No change in measurements if connected with
drain illustrated. (K-11677)
30-3/4"
(781 mm)
54"
(1372 mm)
4-7/8"
(124 mm)
13"
(330 mm)
39-3/4" (1010 mm)
26" (660 mm)
Pump/Control Access
20" (508 mm) W x 15" (381 mm) H
54" (1372 mm)
Lumbar
Angle 18˚
1-1/2" Bath Drain
Product Diagram
PROFLEX®5454 WHIRLPOOL BATH WITH HEATER
Page2of2
1012957-4-
H
26" (660 mm)
2-7/8"
(73 mm)
2-5/8" (67 mm)
3"
(76 mm)
1-1/2"
(38 mm)
Drop-in Rim Detail
135˚
52-1/2"
(1334 mm)
25" (635 mm)
Cut-out Detail
20"
(508 mm)
1/2" (13 mm)
