CSA B651
OBC

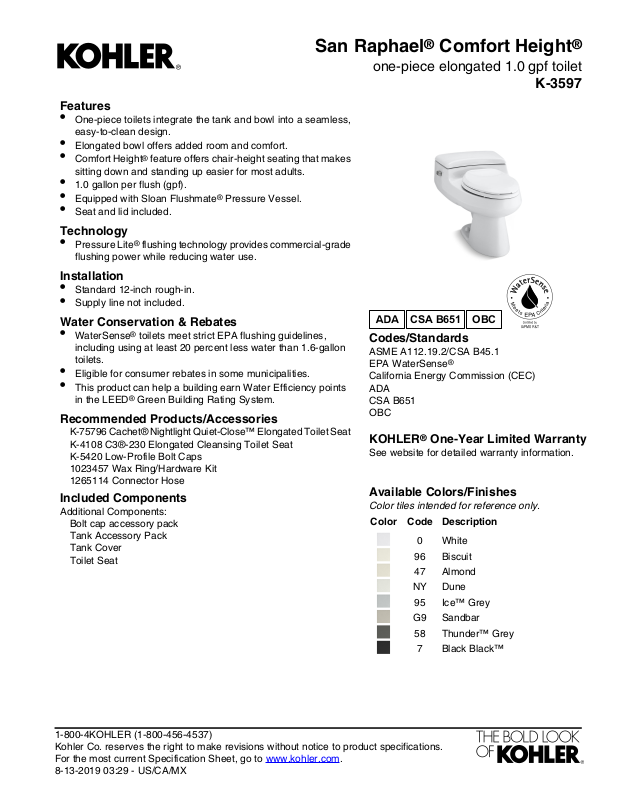

San Raphael® Comfort Height
Features
•
One-piece toilets integrate the tank and bowl into a seamless,
easy-to-clean design.
•
Elongated bowl offers added room and comfort.
•
Comfort Height® feature offers chair-height seating that makes
sitting down and standing up easier for most adults.
•
1.0 gallon per flush (gpf).
•
Equipped with Sloan Flushmate® Pressure Vessel.
•
Seat and lid included.
Technology
•
Pressure Lite® flushing technology provides commercial-grade
flushing power while reducing water use.
Installation
•
Standard 12-inch rough-in.
•
Supply line not included.
Water Conservation & Rebates
•
WaterSense® toilets meet strict EPA flushing guidelines,
including using at least 20 percent less water than 1.6-gallon
toilets.
•
Eligible for consumer rebates in some municipalities.
•
This product can help a building earn Water Efficiency points
in the LEED® Green Building Rating System.
Recommended Products/Accessories
K-75796 Cachet® Nightlight Quiet-Close™ Elongated Toilet Seat
K-4108 C3®-230 Elongated Cleansing Toilet Seat
K-5420 Low-Profile Bolt Caps
1023457 Wax Ring/Hardware Kit
1265114 Connector Hose
Included Components
Additional Components:
Bolt cap accessory pack
Tank Accessory Pack
Tank Cover
Toilet Seat
®
one-piece elongated 1.0 gpf toilet
K-3597
Codes/Standards
ASME A112.19.2/CSA B45.1
EPA WaterSense
California Energy Commission (CEC)
ADA
CSA B651
OBC
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
®
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
Ice™ Grey95
SandbarG9
Thunder™ Grey58
Black Black™7
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-13-2019 03:29 - US/CA/MX
19-1/2"
San Raphael® Comfort Height
one-piece elongated 1.0 gpf toilet
K-3597
®
Technical Information
All product dimensions are nominal.
One-piece, Floor-mountToilet type:
FloorWaste Outlet:
ElongatedBowl shape:
2-1/8" (54 mm)Trap passageway:
Water Consumption
1 gpf (3.8 lpf)Full:
9" x 7" (229 mm x 178 mm)Water surface size:
5-7/8" (149 mm)Rim to water surface:
12" (305 mm)Rough-in:
5-1/2" (140 mm)Seat-mounting holes:
Fixture Supply Requirements
35 psi (241.3 kPa)Min static pressure:
Notes
Install this product according to the installation
instructions.
For back-to-back toilet installations: Use only a
45° double wye fitting.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
Plumbing codes may require elongated toilets
and elongated, open-front seats in public
bathrooms.
Accessibility standards may require controls to
be located on the open side of the toilet.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
8-13-2019 03:29 - US/CA/MX
