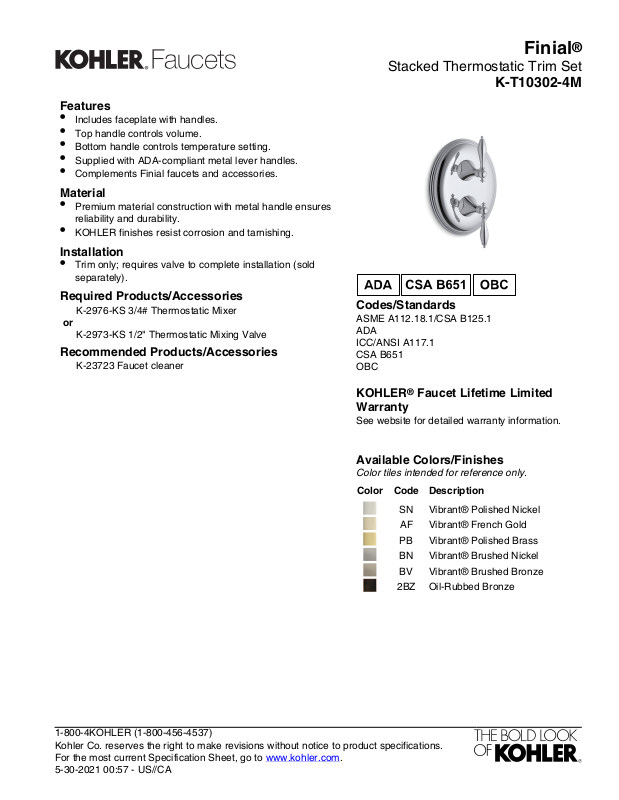

Finial
Features
•
Includes faceplate with handles.
•
Top handle controls volume.
•
Bottom handle controls temperature setting.
•
Supplied with ADA-compliant metal lever handles.
•
Complements Finial faucets and accessories.
Material
•
Premium material construction with metal handle ensures
reliability and durability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Trim only; requires valve to complete installation (sold
separately).
Required Products/Accessories
K-2976-KS 3/4# Thermostatic Mixer
or
K-2973-KS 1/2" Thermostatic Mixing Valve
Recommended Products/Accessories
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
ADA
ICC/ANSI A117.1
CSA B651
OBC
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
SN Vibrant® Polished Nickel
AF Vibrant® French Gold
PB Vibrant® Polished Brass
BN Vibrant® Brushed Nickel
BV Vibrant® Brushed Bronze
2BZ Oil-Rubbed Bronze
®
Stacked Thermostatic Trim Set
K-T10302-4M
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-30-2021 00:57 - US//CA
Finial
8-1/2"
(216 mm)
3-1/8"
(80 mm)
3-1/4"
(83 mm)
Ø 6-3/4" (171 mm)
4" (102 mm)
3-1/4"
(83 mm)
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
instructions.
ADA, OBC, CSA B651 compliant when
installed to the specific requirements of these
regulations.
®
Stacked Thermostatic Trim Set
K-T10302-4M
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-30-2021 00:57 - US//CA
