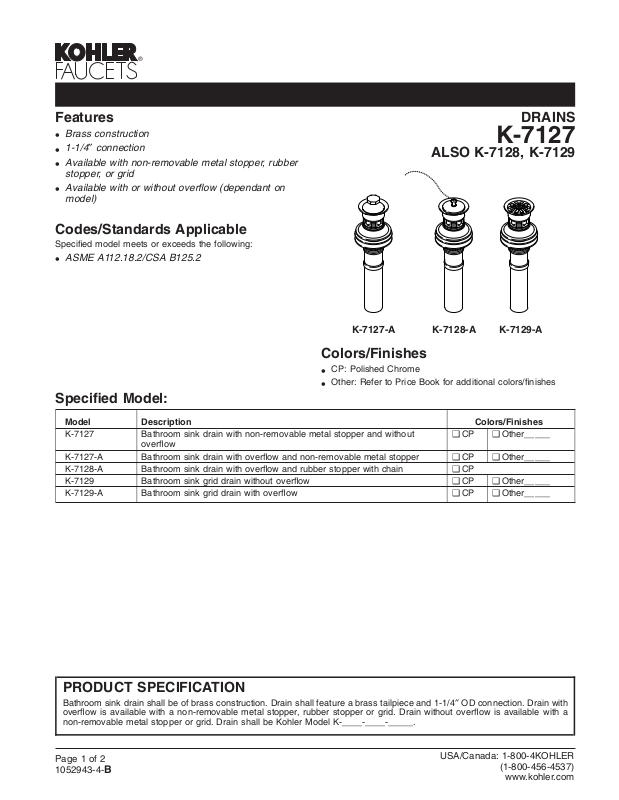

Kohler KOH13062 Dimensions

Features

Brass construction

•
1-1/4″ connection

•

Available with non-removable metal stopper, rubber

•

stopper, or grid
Available with or without overflow (dependant on

•

model)

Codes/Standards Applicable

Specified model meets or exceeds the following:

ASME A112.18.2/CSA B125.2

•

Specified Model:

DRAINS

K-7127

ALSO K-7128, K-7129

K-7128-A K-7129-AK-7127-A

Colors/Finishes

CP: Polished Chrome

•

Other: Refer to Price Book for additional colors/finishes

•

Model Description Colors/Finishes

K-7127 Bathroom sink drain with non-removable metal stopper and without

overflow

K-7127-A Bathroom sink drain with overflow and non-removable metal stopper ❑ CP ❑ Other_____
K-7128-A Bathroom sink drain with overflow and rubber stopper with chain ❑ CP
K-7129 Bathroom sink grid drain without overflow ❑ CP ❑ Other_____
K-7129-A Bathroom sink grid drain with overflow ❑ CP ❑ Other_____

❑ CP ❑ Other_____

PRODUCT SPECIFICATION

Bathroom sink drain shall be of brass construction. Drain shall feature a brass tailpiece and 1-1/4″ OD connection. Drain with
overflow is available with a non-removable metal stopper, rubber stopper or grid. Drain without overflow is available with a
non-removable metal stopper or grid. Drain shall be Kohler Model K-____-____-_____.

Page 1 of 2
1052943-4-

USA/Canada: 1-800-4KOHLER

B

(1-800-456-4537)

www.kohler.com

Installation Notes

Install this product according to the installation guide.

5-1/8"
(130 mm)

1-1/4" OD 1-1/4" OD

3-13/16"
(97 mm)

1-1/4" OD

K-7128-A K-7129, K-7129-AK-7127, K-7127-A

5-1/8"
(130 mm)

3-13/16"
(97 mm)

Product Diagram

DRAINS
Page2of2

1052943-4-

B

5-1/8"
(130 mm)

3-13/16"
(97 mm)
