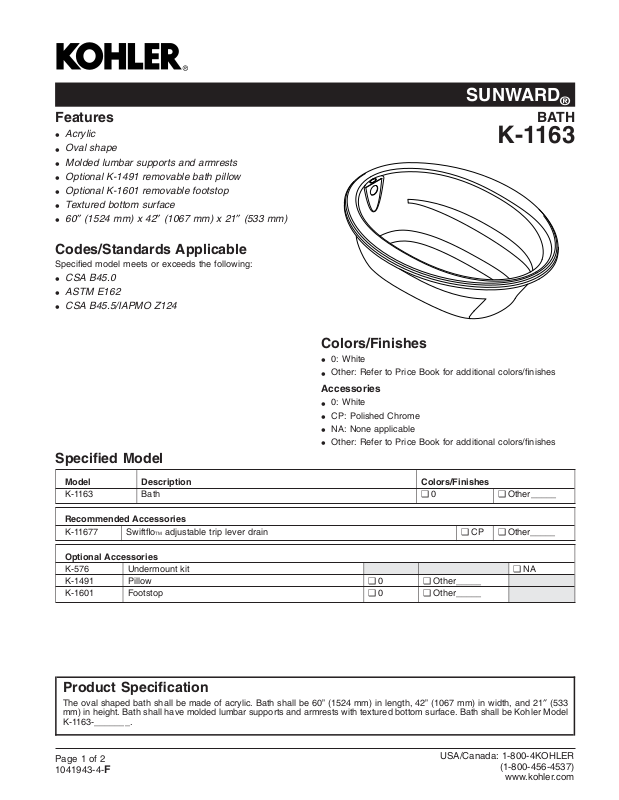

SUNWARD
®
Features
Acrylic
•
Oval shape
•
Molded lumbar supports and armrests
•
Optional K-1491 removable bath pillow
•
Optional K-1601 removable footstop
•
Textured bottom surface
•
60″ (1524 mm) x 42″ (1067 mm) x 21″ (533 mm)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
CSA B45.0
•
ASTM E162
•
CSA B45.5/IAPMO Z124
•
Specified Model
K-1163
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
0: White
•
CP: Polished Chrome
•
NA: None applicable
•
Other: Refer to Price Book for additional colors/finishes
•
BATH
Model Description Colors/Finishes
K-1163 Bath ❑ 0 ❑ Other_____
Recommended Accessories
K-11677 Swiftflo
Optional Accessories
K-576 Undermount kit ❑ NA
K-1491 Pillow ❑ 0 ❑ Other_____
K-1601 Footstop ❑ 0 ❑ Other_____
TM adjustable trip lever drain ❑ CP ❑ Other_____
Product Specification
The oval shaped bath shall be made of acrylic. Bath shall be 60” (1524 mm) in length, 42” (1067 mm) in width, and 21″ (533
mm) in height. Bath shall have molded lumbar supports and armrests with textured bottom surface. Bath shall be Kohler Model
K-1163-_______.
Page 1 of 2
1041943-4-
F
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
SUNWARD
®
Technical Information
Fixture*:
Bathing well:
Basin area,
bottom
Basin area, top 53-1/2″ (1359 mm) x 32-1/8″ (816 mm)
Weight 75 lbs (34 kg)
To overflow:
Water depth 15″ (381 mm)
Capacity 57 gal (215.9 L)
* Approximate measurements for comparison only.
Included components:
Cut-out template 1042556-7
43″ (1092 mm) x 21-9/16″ (548 mm)
Installation Notes
Install this product according to the installation guide.
Floor support under bath must provide for a minimum of 33
lbs/square foot (161 kg/square meter) loading.
No change in measurements if connected with drain
illustrated.
21"
(533 mm)
3-1/8"
(79 mm)
3-1/2"
(89 mm)
10-13/16" (275 mm)
60" (1524 mm)
3"
(76 mm)
2-7/8"
(73 mm)
3/8" (10 mm)
No change in measurements if connected with
drain illustrated. (K-11677 or K-11677M)
Recommended faucet area
1-1/2"
(38 mm)
Drop-In Rim Detail
42" (1067 mm)
21"
(533 mm)
19-1/2"
(495 mm)
1-1/2" OD
SUNWARD®BATH
Page2of2
1041943-4-
F
Product Diagram
