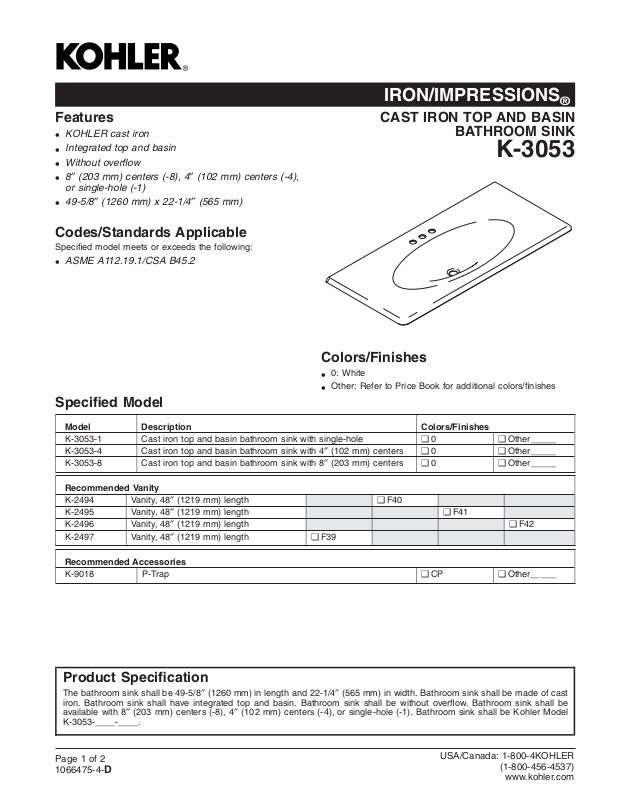

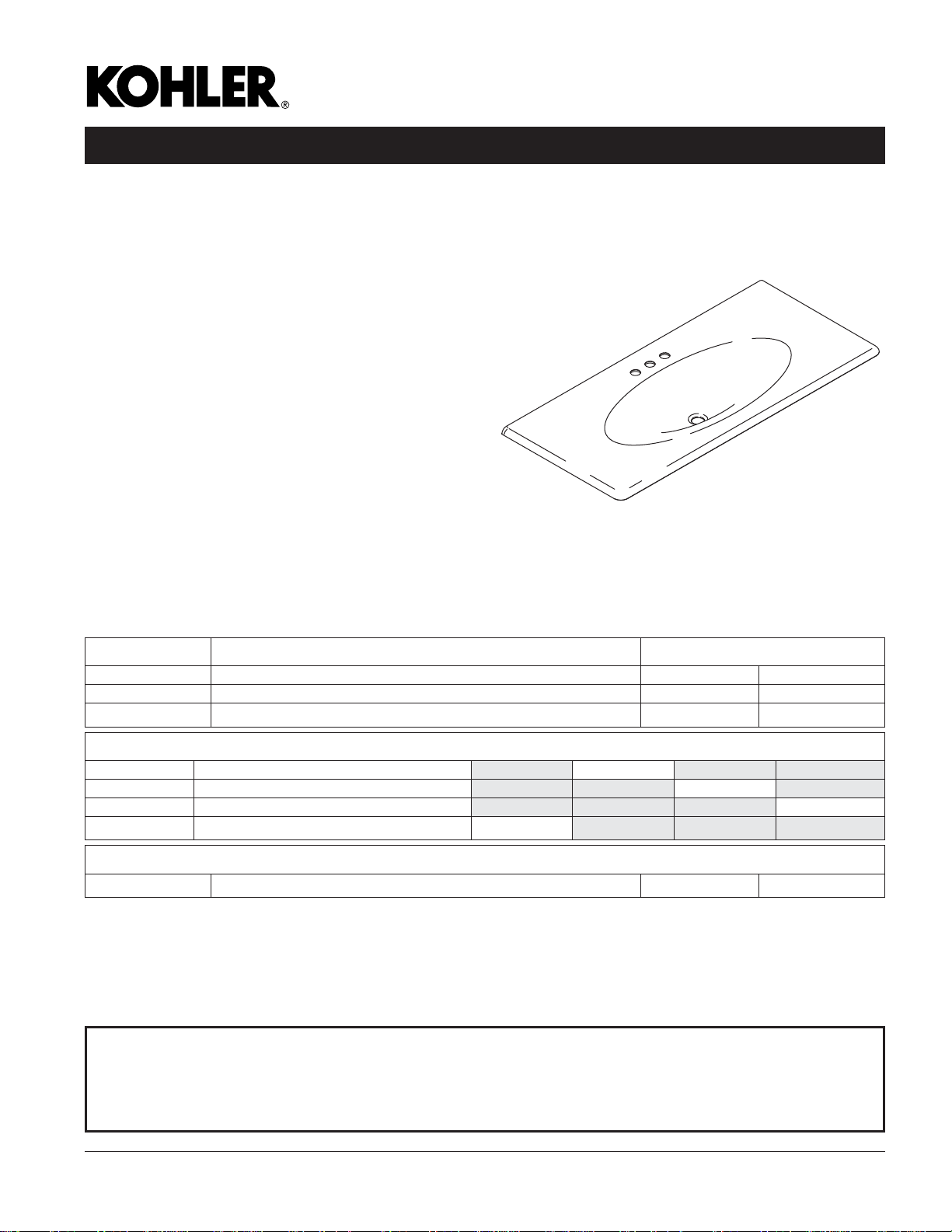

IRON/IMPRESSIONS

Features

KOHLER cast iron

•

Integrated top and basin

•

Without overﬂow

• 8″ (203 mm) centers (-8), 4″ (102 mm) centers (-4),

•

or single-hole (-1) 49-5/8″ (1260 mm) x 22-1/4″ (565 mm)

•

Codes/Standards Applicable

Speciﬁed model meets or exceeds the following:

ASME A112.19.1/CSA B45.2

•

Speciﬁed Model

CAST IRON TOP AND BASIN

BATHROOM SINK

K-3053

Colors/Finishes

0: White

•

Other: Refer to Price Book for additional colors/ﬁnishes

•

Model Description Colors/Finishes

K-3053-1 Cast iron top and basin bathroom sink with single-hole ❑ 0 ❑ Other_____ K-3053-4 Cast iron top and basin bathroom sink with 4″ (102 mm) centers ❑ 0 ❑ Other_____ K-3053-8 Cast iron top and basin bathroom sink with 8″ (203 mm) centers ❑ 0 ❑ Other_____

Recommended Vanity

K-2494 Vanity, 48″ (1219 mm) length ❑ F40 K-2495 Vanity, 48″ (1219 mm) length ❑ F41 K-2496 Vanity, 48″ (1219 mm) length ❑ F42 K-2497 Vanity, 48″ (1219 mm) length ❑ F39

Recommended Accessories

K-9018 P-Trap ❑ CP ❑ Other_____

Product Speciﬁcation

The bathroom sink shall be 49-5/8″ (1260 mm) in length and 22-1/4″ (565 mm) in width. Bathroom sink shall be made of cast iron. Bathroom sink shall have integrated top and basin. Bathroom sink shall be without overﬂow. Bathroom sink shall be available with 8″ (203 mm) centers (-8), 4″ (102 mm) centers (-4), or single-hole (-1). Bathroom sink shall be Kohler Model K-3053-____-____.

Page 1 of 2 1066475-4-

USA/Canada: 1-800-4KOHLER

(1-800-456-4537)

www.kohler.com

Page 2

IRON/IMPRESSIONS

Technical Information

Fixture*: Bathroom sink Basin area 32″ (813 mm) x

Water depth 4-1/2″ (114 mm) Drain hole Ø 1-3/4″ (44 mm) * Approximate measurements for comparison only.

Holes K-3053-1 K-3053-4 K-3053-8 Spout 1-3/8″

(35 mm)

Faucet 1-3/8″

13-7/8″ (352 mm)

1-3/8″ (35 mm)

(35 mm)

1-3/8″ (35 mm)

Installation Notes

NOTE: When selecting a faucet for this bathroom sink, ensure

the faucet has a spout reach of 4-1/2″ (114 mm) to 5″ (127 mm) and has a spout height of 3″ (76 mm) to 6″ (152 mm).

Install this product according to the installation guide.

Product does not have an overﬂow.

4" (102 mm)

3/4" (19 mm)

K-3053-8

4" (102 mm)

49-5/8" (1260 mm)

1-1/4" OD

3/8" Hot

4" (102 mm)

24-13/16" (630 mm)

3/8" Cold

4-1/4" (108 mm)

12-1/8" (308 mm)

6-1/2" (165 mm)

22-1/4" (565 mm)

12-1/8" (308 mm)

4" (102 mm)

14" (356 mm)

K-3053-1

K-3053-4

4" (102 mm)

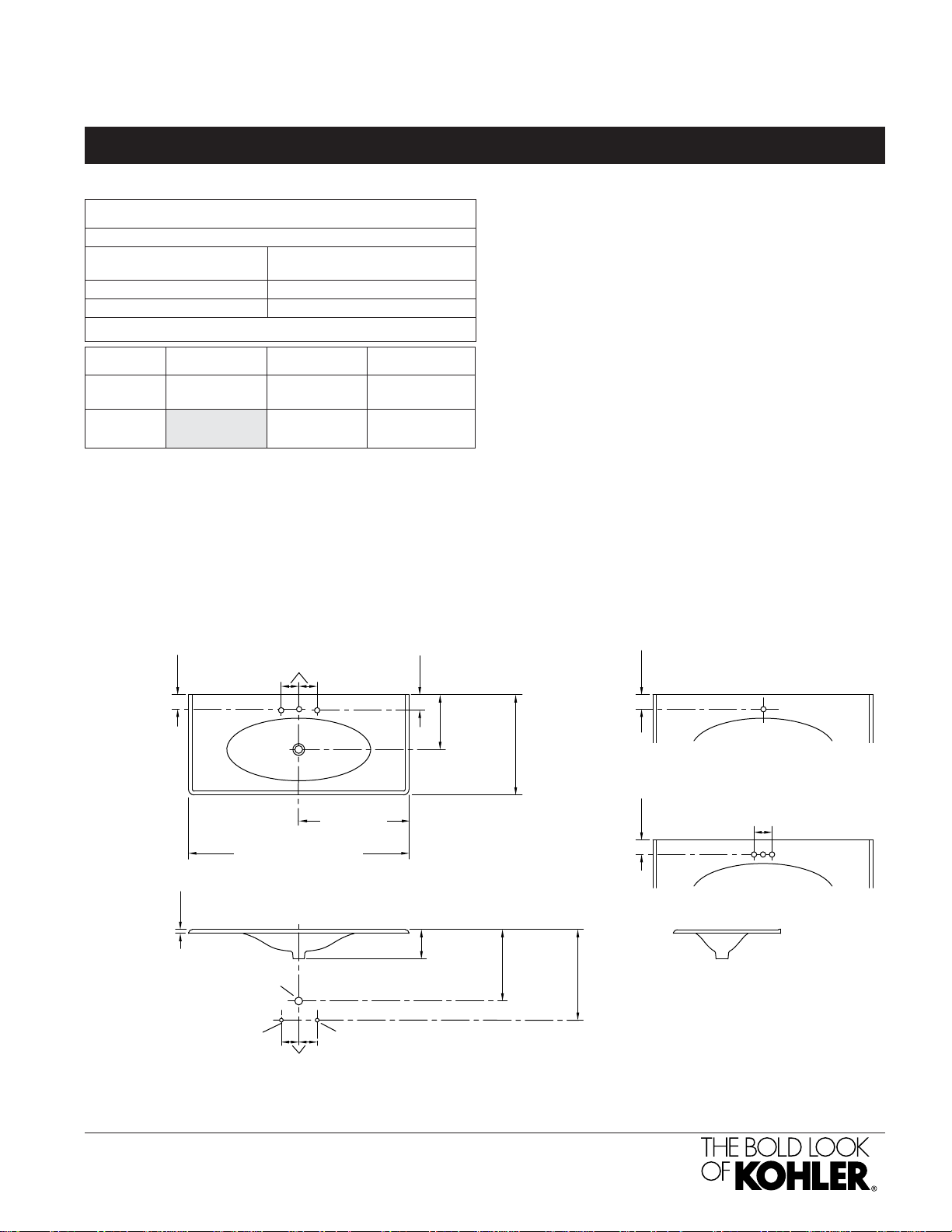

Product Diagram

IRON/IMPRESSIONS®CAST IRON TOP AND BASIN BATHROOM SINK Page2of2
