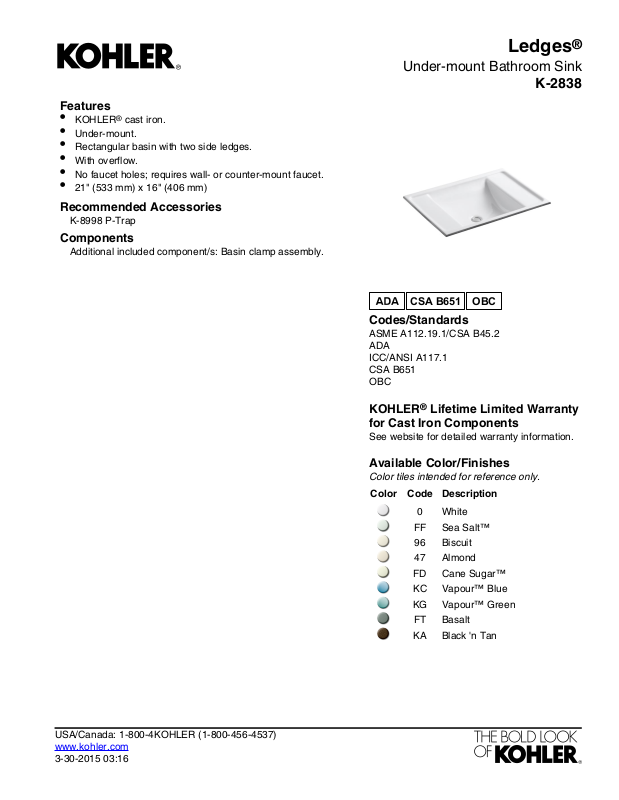

Page 1
Features
CSA B651
OBC
•
KOHLER® cast iron.
•
Under-mount.
•
Rectangular basin with two side ledges.
•
With overflow.
•
No faucet holes; requires wall- or counter-mount faucet.
•
21" (533 mm) x 16" (406 mm)
Recommended Accessories
K-8998 P-Trap
Components
Additional included component/s: Basin clamp assembly.
Under-mount Bathroom Sink
Codes/Standards
ASME A112.19.1/CSA B45.2
ADA
ICC/ANSI A117.1
CSA B651
OBC
Ledges
K-2838
®
KOHLER® Lifetime Limited Warranty
for Cast Iron Components
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Sea Salt™FF
Biscuit96
Almond47
Cane Sugar™FD
Vapour™ BlueKC
Vapour™ GreenKG
BasaltFT
Black 'n TanKA
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
3-30-2015 03:16
Page 2
Ledges
®
Under-mount Bathroom Sink
K-2838

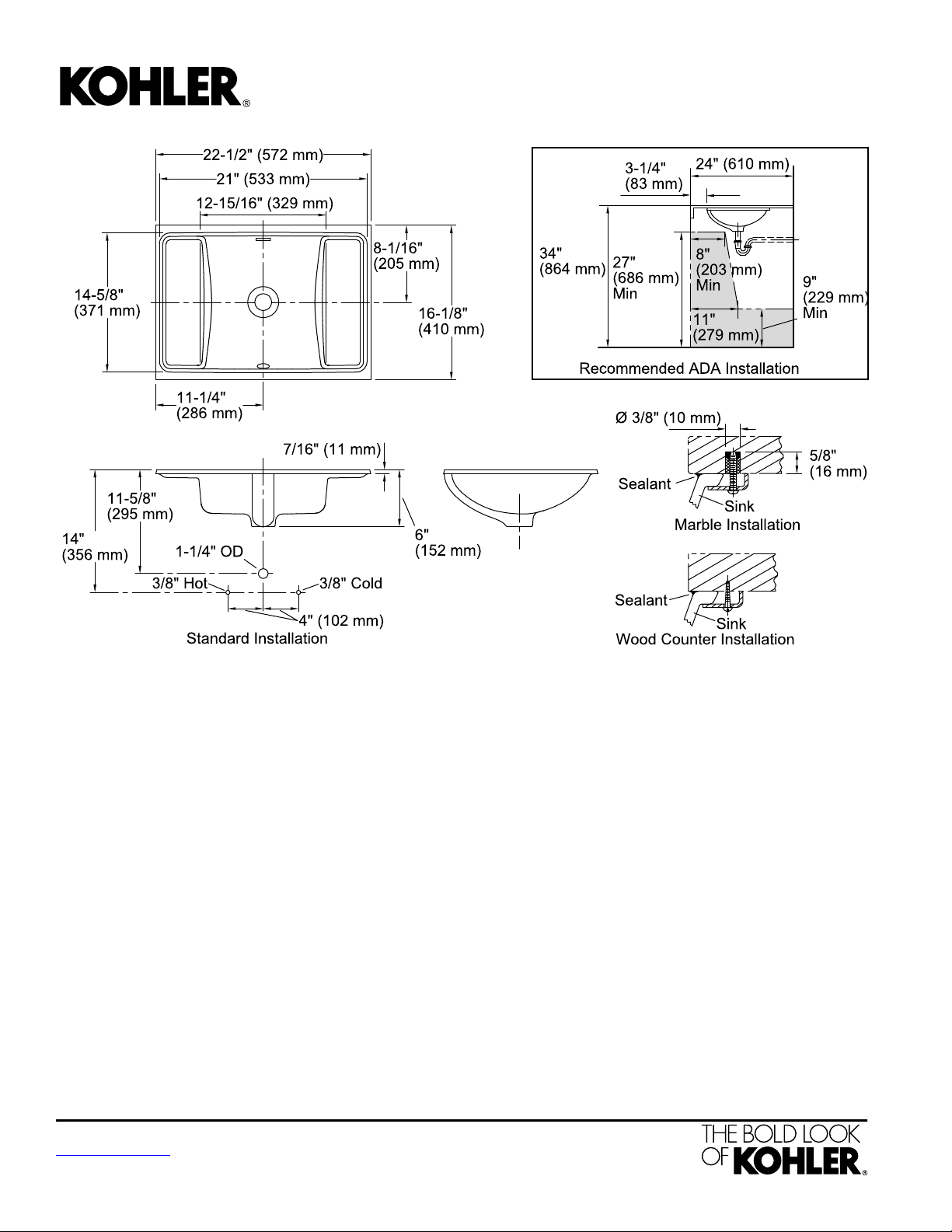

Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Under-mountInstallation:
Bowl area (Only)
Template:
Length: 12-15/16" (329 mm)
Width: 14-5/8" (371 mm)
Water depth: 3-1/4" (83 mm)
1-11/16" (43 mm)Drain hole:
Under-mount, 1070407-7, required,
included
Notes
Install this product according to the installation
guide.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
3-30-2015 03:16
