VINTAGETM
Features
Vitreous china
•
Undercounter
•
With overflow
•
21-1/4″(54 cm) x 12-1/4″(31.1 cm)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.19.2
•
IAPMO/UPC
•
CSA B45
•
Specified Model
UNDERCOUNTER LAVATORY
K-2240
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories:
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-2240 21-1/4″ (54 cm) x 12-1/4″ (31.1 cm) undercounter lavatory ❑ 0 White ❑ Other_____
Recommended Accessory
K-8998 P-trap ❑ CP ❑ Other_____
Product Specification
The undercounter lavatory shall be 21-1/4” (54 cm) in length and 12-1/4” (31.1cm) in width. Lavatory shall be made of vitreous
china. Lavatory shall have overflow. Lavatory shall be Kohler Model K-2240-_______.
Page1of2
112663-4-
AB
USA: 1-800-4-KOHLER
Canada: 1-800-964-5590
kohler.com
VINTAGETM
Technical Information
Fixture*: basin area water depth
Lavatory 21″ (53.3 cm) x
Drain
hole
* Approximate measurements for comparison only.
Included Components:
Basin clamp assembly 52047
Adjustable linkage 40372
Cut-out template 1046699-7
1-3/4″
(4.4 cm) D.
12″ (30.5 cm)
9-3/8"
(23.8 cm)
4-7/8″
(12.4 cm)
Installation Notes
Install this product according to the installation guide.
Supplied basin clamp assemblies require 1″ (2.5 cm)
minimum countertop thickness. Installer must supply anchors
for thinner countertops.
NOTICE: Countertop manufacturer or cutter must use the
cut-out template provided with the product or a current one
provided by Kohler (call 1-800-4-KOHLER). Kohler is not
responsible for cut-out errors when an incorrect cut-out
template is used.
C
L of Fitting
Sealant
3/8"
(1 cm) D.
14"
(35.6 cm)
14-3/8"
(36.5 cm)
13-5/8"
(34.6 cm)
4"
(10.2 cm)
3/8" Hot
23-7/8" (60.6 cm)
3/8" Cold
1-1/4" OD
6-7/8"
(17.5 cm)
7-7/8"
(20 cm)
1/2" (1.3 cm)
8"
(20.3 cm)
Note:

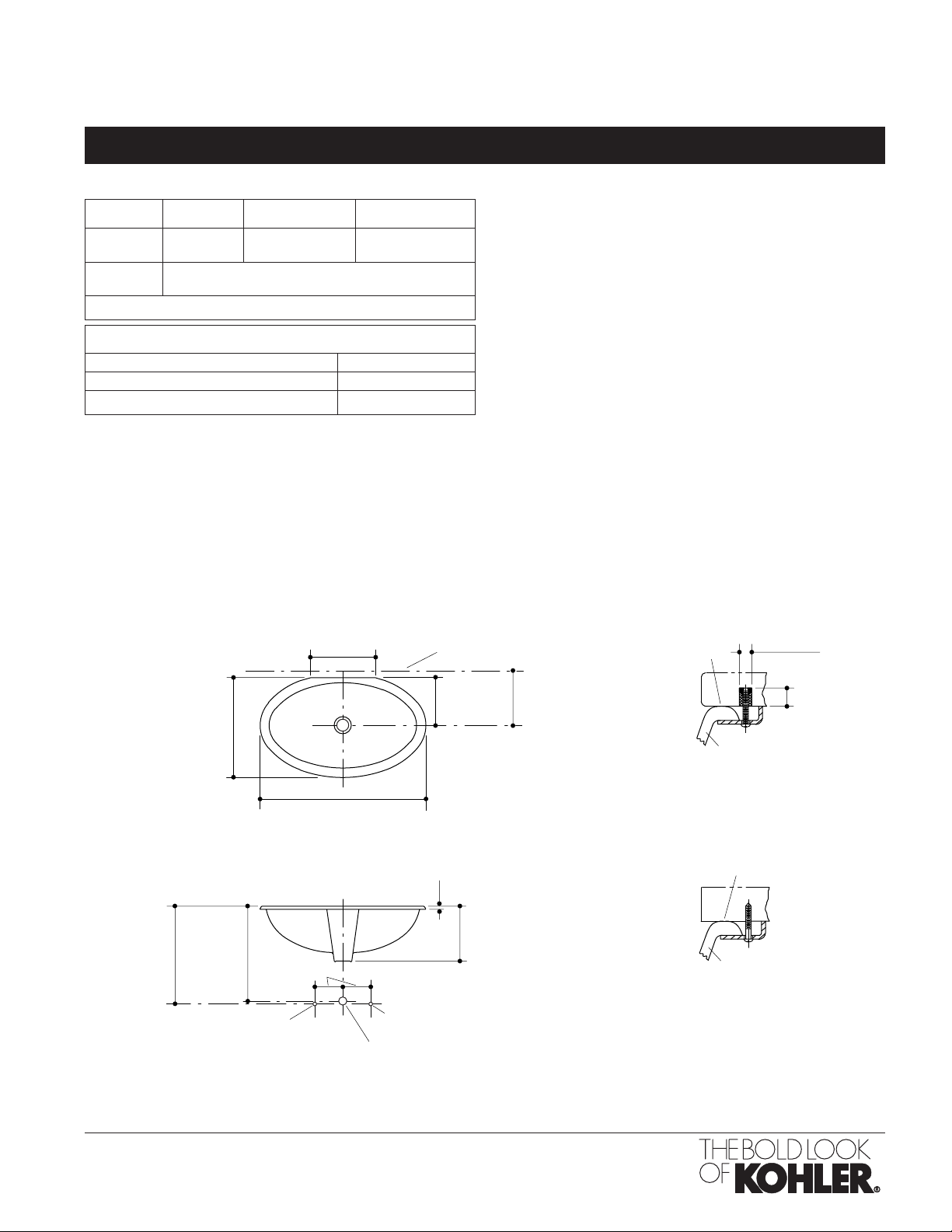

Product Diagram
5/8"
(1.6 cm)
Lavatory
Marble Slab
Installation
Sealant
Lavatory
Wood Counter
Installation
Waterproof unprotected overhang area
on the underside of wood counter.
VINTAGETM UNDERCOUNTER LAVATORY
Page2of2
112663-4-
AB
