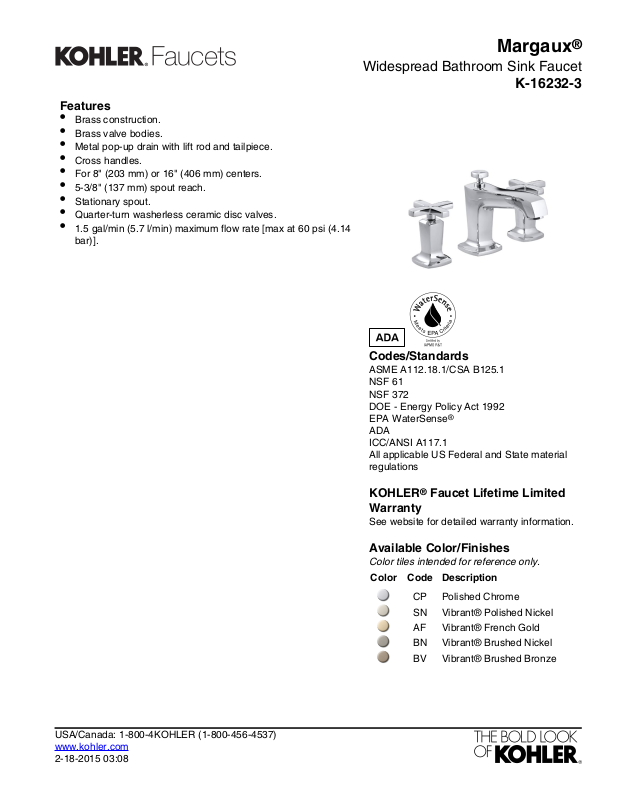

Page 1
Features
•
Brass construction.
•
Brass valve bodies.
•
Metal pop-up drain with lift rod and tailpiece.
•
Cross handles.
•
For 8" (203 mm) or 16" (406 mm) centers.
•
5-3/8" (137 mm) spout reach.
•
Stationary spout.
•
Quarter-turn washerless ceramic disc valves.
•
1.5 gal/min (5.7 l/min) maximum flow rate [max at 60 psi (4.14
bar)].
Margaux
®
Widespread Bathroom Sink Faucet
K-16232-3
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF 61
NSF 372
DOE - Energy Policy Act 1992
EPA WaterSense
ADA
ICC/ANSI A117.1
All applicable US Federal and State material
regulations
®
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Polished NickelSN
Vibrant® French GoldAF
Vibrant® Brushed NickelBN
Vibrant® Brushed BronzeBV
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 03:08
Page 2
3-1/8" (79 mm)
Margaux
®
Widespread Bathroom Sink Faucet
K-16232-3
Technical Information
All product dimensions are nominal.
5-3/8" (137 mm)Spout reach:
YESDrain included:
YESDrain tailpiece
included:
Faucet:
1.5 gal/min (5.7 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
Notes
Install this product according to the installation
guide.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 03:08
