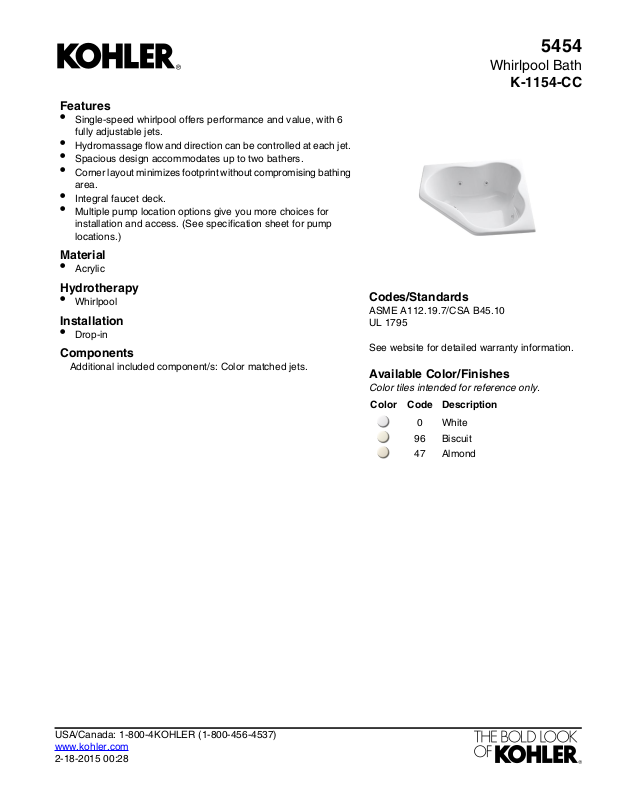

Page 1
Features
•
Single-speed whirlpool offers performance and value, with 6
fully adjustable jets.
•
Hydromassage flow and direction can be controlled at each jet.
•
Spacious design accommodates up to two bathers.
•
Corner layout minimizes footprint without compromising bathing
area.
•
Integral faucet deck.
•
Multiple pump location options give you more choices for
installation and access. (See specification sheet for pump
locations.)
Material
•
Acrylic
5454
Whirlpool Bath
K-1154-CC
Hydrotherapy
•
Whirlpool
Installation
•
Drop-in
Components
Additional included component/s: Color matched jets.
Codes/Standards
ASME A112.19.7/CSA B45.10
UL 1795
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 00:28
Page 2
3"
5454
Whirlpool Bath
K-1154-CC
Required Electrical Service
One dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device
(RCD).
120 V, 15 A, 60 HzPump:
Technical Information
All product dimensions are nominal.
Drop-inInstallation:
CenterDrain location:
44" x 36" (1118 mm x 914 mm)Basin area, bottom:
56" x 43" (1422 mm x 1092 mm)Basin area, top:
65 lbs (29.5 kg)Weight:
36 lbs/ft² (175.8 kg/m²)Minimum floor load:
15" (381 mm)Water depth:
76 gal (287.7 L)Water capacity:
Pump: 120 V, 7.5 A, 60 HzElectrical rating:
Notes
Install this product according to the installation
guide.
Locate the outlet behind the whirlpool and within
24" (610 mm) of the pump.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 00:28
