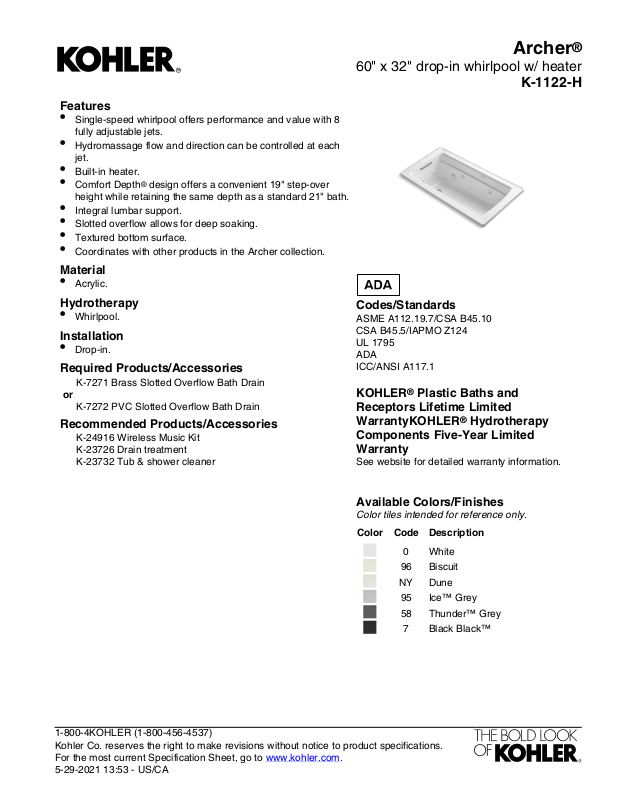

Archer
Features
•
Single-speed whirlpool offers performance and value with 8
fully adjustable jets.
•
Hydromassage flow and direction can be controlled at each
jet.
•
Built-in heater.
•
Comfort Depth® design offers a convenient 19" step-over
height while retaining the same depth as a standard 21" bath.
•
Integral lumbar support.
•
Slotted overflow allows for deep soaking.
•
Textured bottom surface.
•
Coordinates with other products in the Archer collection.
Material
•
Acrylic.
Hydrotherapy
•
Whirlpool.
Installation
•
Drop-in.
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
or
K-7272 PVC Slotted Overflow Bath Drain
Recommended Products/Accessories
K-24916 Wireless Music Kit
K-23726 Drain treatment
K-23732 Tub & shower cleaner
Codes/Standards
ASME A112.19.7/CSA B45.10
CSA B45.5/IAPMO Z124
UL 1795
ADA
ICC/ANSI A117.1
KOHLER® Plastic Baths and
Receptors Lifetime Limited
WarrantyKOHLER® Hydrotherapy
Components Five-Year Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
96 Biscuit
NY Dune
95 Ice™ Grey
58 Thunder™ Grey
7 Black Black™
®
60" x 32" drop-in whirlpool w/ heater
K-1122-H
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 13:53 - US/CA
Archer
Lumbar
Angle 24°
32"
(813 mm)
60" (1524 mm)
1-1/2"
Bath Drain
3/4" (19 mm)
16"
(406 mm)
1-1/4"
(32 mm)
2-1/2"
(64 mm)
19"
(483 mm)
No change in measurements
if connected with drain
illustrated. (K-7272)
11-1/4"
(286 mm)
Pump/Control Access
20" (508 mm) W x
15" (381 mm) H
4-1/8"
(105 mm)
Drop-in Rim
Detail
1-1/2"
(38 mm)
Required Electrical Service
Two dedicated circuits required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this
device may be known as a Residual Current Device (RCD).
Pump: 120 V, 15 A, 60 Hz
Heater: 120 V, 15 A, 60 Hz
Technical Information
All product dimensions are nominal.
Installation: Drop-in
Drain location: End
Basin area, bottom: 45-1/8" x 19-11/16" (1146 mm x
500 mm)
Basin area, top: 52-3/4" x 25-5/16" (1340 mm x 643 mm)
Weight: 110 lbs (49.9 kg)
Minimum floor load: 46 lbs/ft² (224.6 kg/m²)
Water depth: 15" (381 mm)
Water capacity: 58 gal (219.6 L)
Cutout: Drop-in, 58-1/2" x 30-1/2" (1486 mm x
775 mm)
Electrical component
rating:
Pump: 120 V, 7 A, 60 Hz
Heater: 120 V, 12.5 A, 60 Hz, 1500 W
Notes
Measure your actual product for rough-in
details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
This product is designed for drop-in installation
only. It is not suited for use in a three-wall
alcove with an overhead shower.
ADA compliant when installed to the specific
requirements of these regulations.
®
60" x 32" drop-in whirlpool w/ heater
K-1122-H
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 13:53 - US/CA
