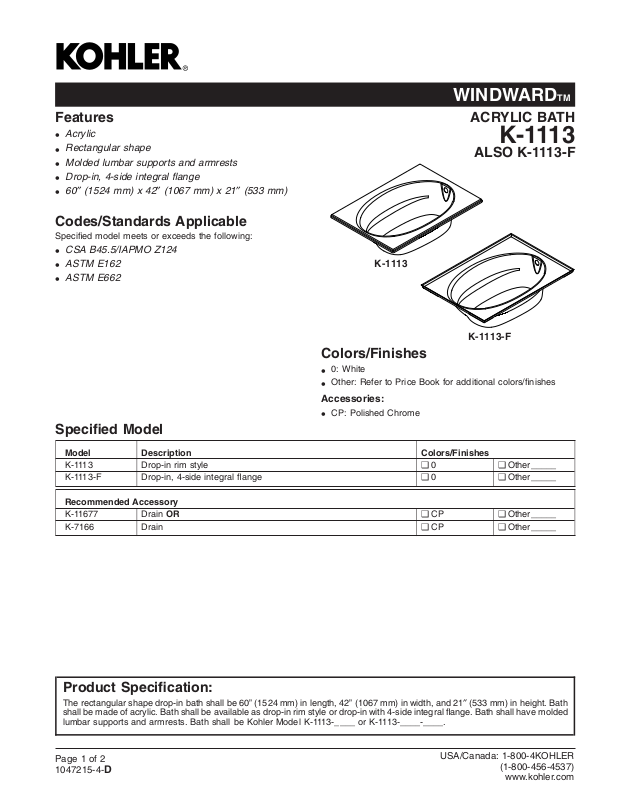

Page 1
WINDWARDTM
Features
Acrylic
•
Rectangular shape
•
Molded lumbar supports and armrests
•
Drop-in, 4-side integral flange
•
60″ (1524 mm) x 42″ (1067 mm) x 21″ (533 mm)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
CSA B45.5/IAPMO Z124
•
ASTM E162
•
ASTM E662
•
Specified Model
ACRYLIC BATH
K-1113
ALSO K-1113-F
K-1113
K-1113-F
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories:
CP: Polished Chrome
•
Model Description Colors/Finishes
K-1113 Drop-in rim style ❑ 0 ❑ Other_____
K-1113-F Drop-in, 4-side integral flange ❑ 0 ❑ Other_____
Recommended Accessory
K-11677 Drain OR ❑ CP ❑ Other_____
K-7166 Drain ❑ CP ❑ Other_____
Product Specification:
The rectangular shape drop-in bath shall be 60” (1524 mm) in length, 42” (1067 mm) in width, and 21″ (533 mm) in height. Bath
shall be made of acrylic. Bath shall be available as drop-in rim style or drop-in with 4-side integral flange. Bath shall have molded
lumbar supports and armrests. Bath shall be Kohler Model K-1113-____ or K-1113-____-____.
Page 1 of 2
1047215-4-
USA/Canada: 1-800-4KOHLER
D
(1-800-456-4537)
www.kohler.com
Page 2
WINDWARDTM
Technical Information
Fixture*: basin area top area weight
Bathing well 43″ (1092
mm) x 20-1/2″
(521 mm)
water depth capacity
To overflow 15″ (381 mm) 57 gal (215.9 L)
* Approximate measurements for comparison only.
Drop-in cut-out dimensions:
58-1/2″ (1486 mm) x 40-1/2″ (1029 mm)
53-1/2″ (1359
mm) x 32-1/8″
(816 mm)
80 lbs
(36 kg)
Installation Notes
Install this product according to the installation guide.
Floor support under the bath must provide for a minimum of
35 lbs/square foot (169 kg/square meter) loading.
If installing a rim-mount faucet, make sure there is no
interference with the drain overflow before drilling any holes.
Consult local and national codes for minimum air gap
requirements if installing a spout on the faucet deck.
21"
(533 mm)
3-1/8"
(79 mm)
3-1/2"
(89 mm)
10-13/16"
(275 mm)
60" (1524 mm)
3"
(76 mm)
2-7/8"
(73 mm)
3/8" (10 mm)
No change in measurements if connected with
drain illustrated. (K-11677)
Recommended faucet area
1-1/4"
(32 mm)
1-1/2"
(38 mm)
Tile Flange
Rim Detail
1-1/2"
Detail
42" (1067 mm)
(38 mm)
19-1/2"
(495 mm)
1-1/2" OD
Drop-In
WINDWARDTM ACRYLIC BATH
Page2of2
1047215-4-
D
