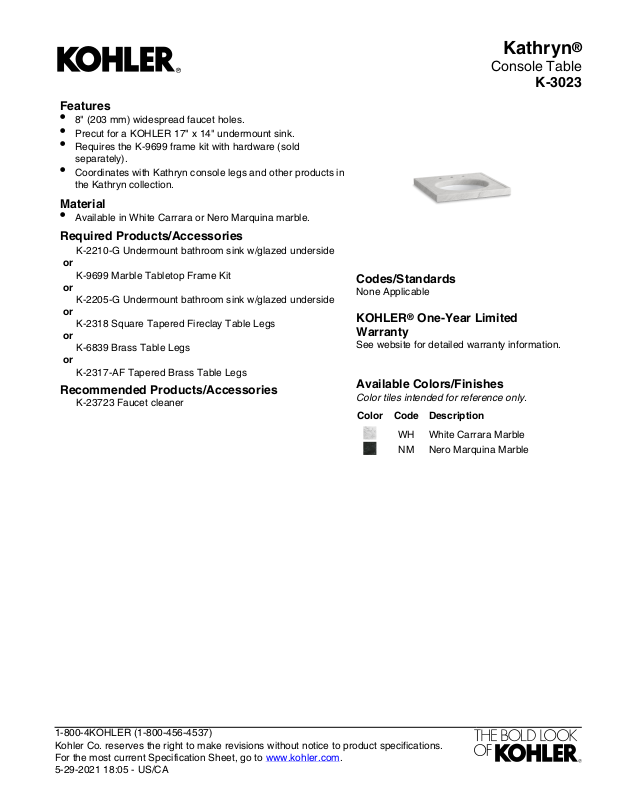

Page 1
Kathryn
Features
•
8" (203 mm) widespread faucet holes.
•
Precut for a KOHLER 17" x 14" undermount sink.
•
Requires the K-9699 frame kit with hardware (sold
separately).
•
Coordinates with Kathryn console legs and other products in
the Kathryn collection.
Material
•
Available in White Carrara or Nero Marquina marble.
Required Products/Accessories
K-2210-G Undermount bathroom sink w/glazed underside
or
K-9699 Marble Tabletop Frame Kit
or
K-2205-G Undermount bathroom sink w/glazed underside
or
K-2318 Square Tapered Fireclay Table Legs
or
K-6839 Brass Table Legs
or
K-2317-AF Tapered Brass Table Legs
Recommended Products/Accessories
K-23723 Faucet cleaner
Codes/Standards
None Applicable
KOHLER® One-Year Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
WH White Carrara Marble
NM Nero Marquina Marble
®
Console Table
K-3023
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 18:05 - US/CA
Page 2
Kathryn
Finished
Wall
Wall Clip
1/2" (13 mm)
19-15/16"
(506 mm)
22-1/2"
(572 mm)
18-3/16"
(478 mm)
33-3/4"
(857 mm)
24" (610 mm)
3-1/16"
(78 mm)
22"
(559 mm)
Wall Clip
4" (102 mm)
3" (76 mm)
18"
(457 mm)
Legs Sold
Separately
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
guide.
Product is installed with 1/2" (13 mm) gap
between wall and console table.
®
Console Table
K-3023
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 18:05 - US/CA
